Order- MP6630E
MP6630E
Session textval
Session Titefor popup
Description

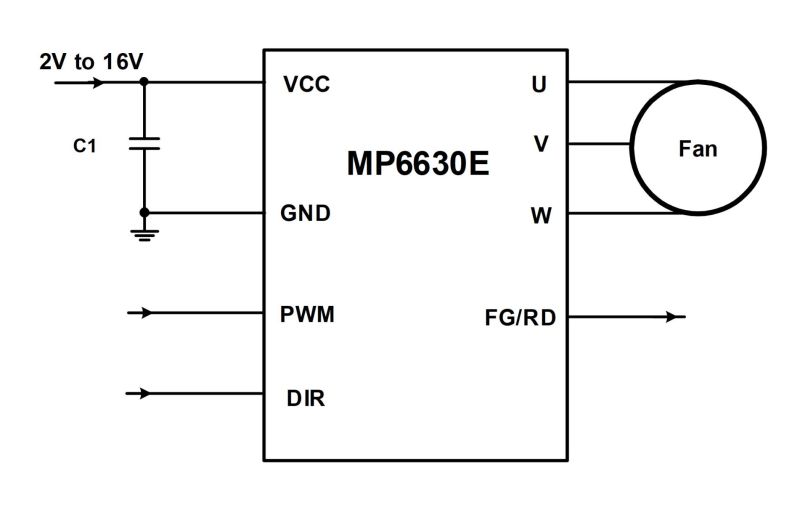

The MP6630E is a three-phase, brushless DC (BLDC) motor driver with integrated power MOSFETs and a single Hall-effect sensor. The input supply voltage (VCC) range is 2V to 16V. The device controls the motor speed through the pulse-width modulation (PWM) signal on the PWM pin. It features a single, embedded Hall effect sensor for robust start-up performance.
The MP6630E employs a 180° full-wave sinusoidal drive, which offers high efficiency, a low speed ripple, and low vibration across the full speed range.
The FG/RD pin is a rotational speed detector with an open-drain output. It outputs a pulse signal based on the internal Hall sensor’s output. This pin is also selectable for rotor-lock indication output.
Rich protection features include under-voltage lockout (UVLO), locked-rotor protection, over-current limit (OCL), over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown protection.

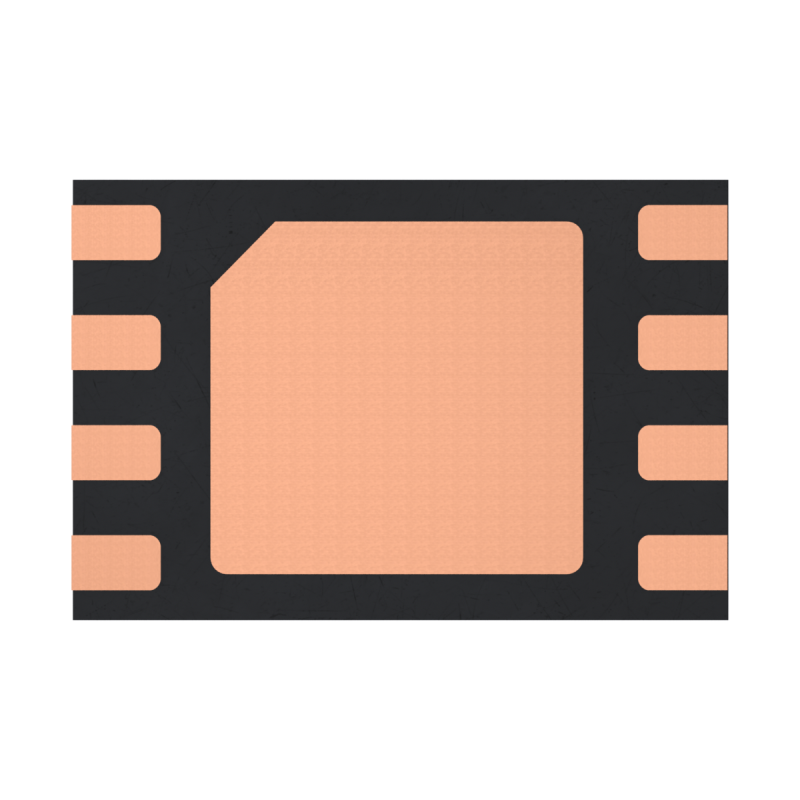

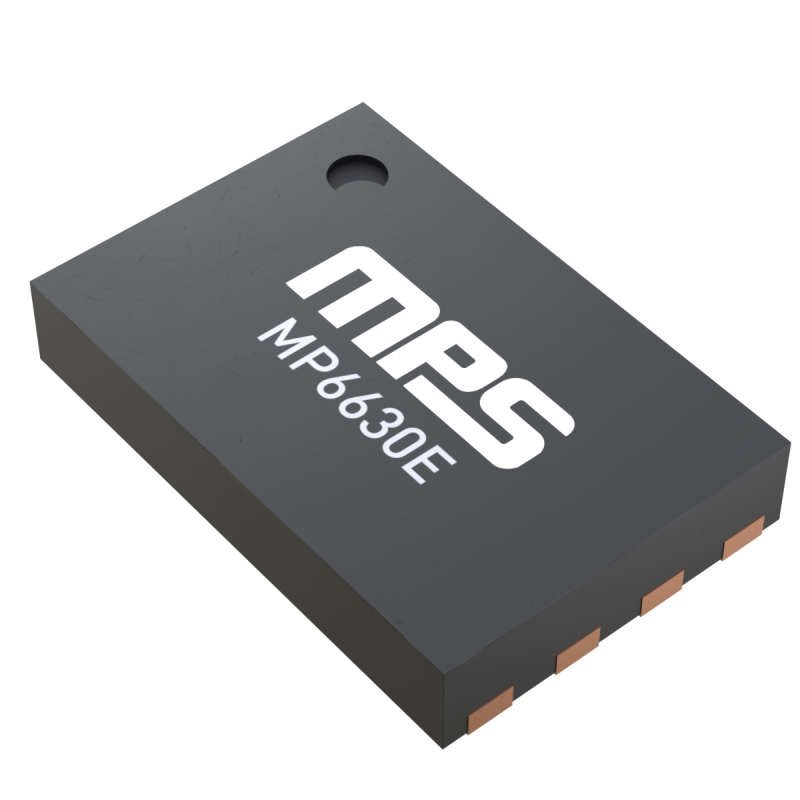

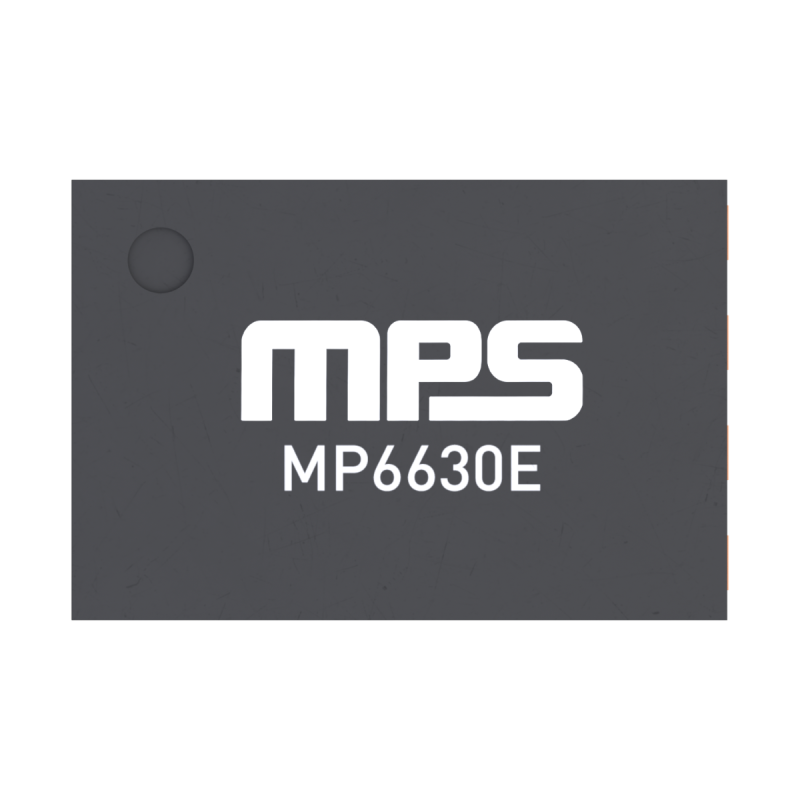

The MP6630E is available in a UTQFN-8 (2mmx3mm) package.
-
Show more
Show less
Features & Benefits
- Wide 2V to 16V Operating Input Supply Voltage (VCC) Range
- 180° Full-Wave Sinusoidal Drive for High Efficiency and Low Vibration
- Embedded Single Hall Sensor to Ensure Robust Start-Up
- Integrated Power MOSFETs: About 400mΩ Each
- Rotor Lock and Retry Protection (0.5s and 4.5s, Respectively)
- 1kHz to 100kHz Pulse-Width Modulation (PWM) Input Range
- Direction Input
- Soft Start (SS)
- Fixed 25kHz Switching Frequency (fSW)
- 1x, 1/2x, 1/3x, 2/5x for Speed Indication (FG) and Lock Indication (RD)
- Standby Mode to Save Power
- Thermal Protection and Auto-Recovery
- Typical 2.3A Over-Current Protection (OCP)
- Available in a UTQFN-8 (2mmx3mm) Package
Active Part Numbers:
MP6630EGDU-xxxx-Z MP6630EGDU-xxxx-P MP6630EGDU-0000-Z MP6630EGDU-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
