Description
The MP6653B is a single-phase, brushless DC (BLDC) motor driver with integrated power MOSFETs and an embedded Hall sensor. It drives a single-phase BLDC motor with up to 1.2A of peak coil current. The wide input voltage (VIN) ranges from 3.5V to 35V.
The MP6653B controls the motor speed through the pulse-width modulation (PWM) signal or the DC voltage on the PWM pin. The device features soft commutation, a configurable Hall offset angle, and speed curve configurations.
The rotating speed indicator or locked-rotor indicator (the FG/RD pin) can act as a rotating speed indicator (FG) based on an embedded Hall sensor’s output, or locked-rotor indicator(RD) if locked-rotor protection is triggered.
Rich protections include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown protection.

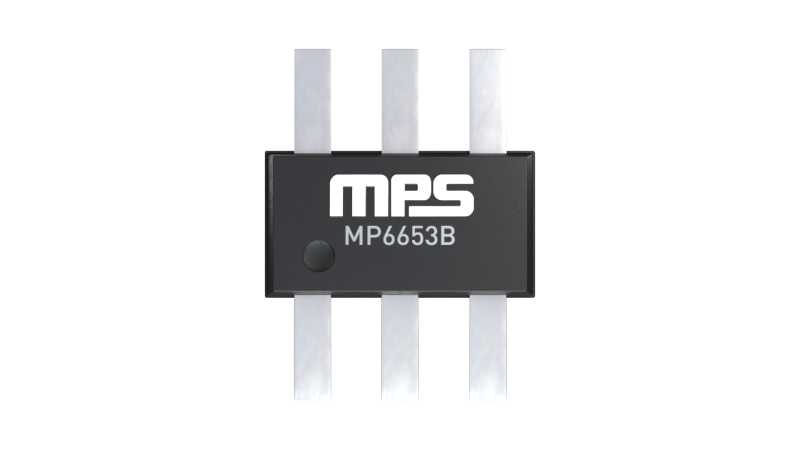

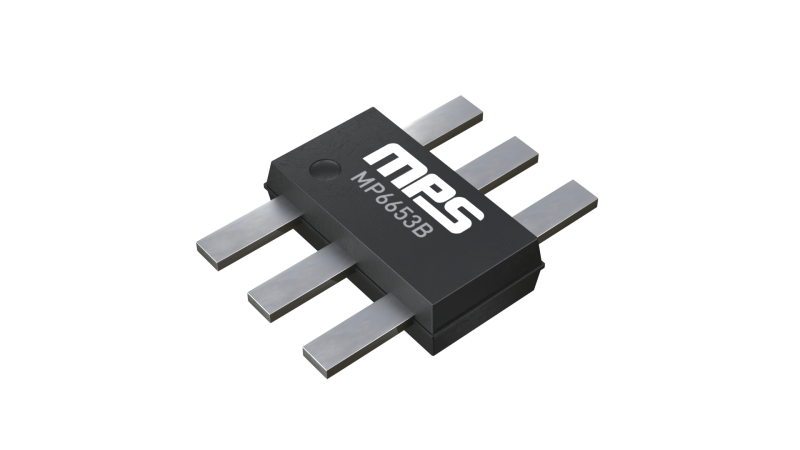

The MP6653B is available in a TSOT23-6-SL package.
-
Show more
Show less
Features & Benefits
- 3.5V to 35V Operating Input Voltage (VIN) Range
- On-Chip Hall Sensor
- Integrated High-Side MOSFET (HS-FET) and Low-Side MOSFET (LS-FET): 960mΩ
- Selectable Open-Loop or Closed-Loop Speed
- Curve Configurations
- Configurable Starting Duty Cycle
- Configurable Stop Duty Cycle
- Soft Commutation
- Configurable Soft Acceleration Time
- Configurable Hall Leading/Lag Angle
- Supports 50Hz to 100kHz Pulse-Width Modulation (PWM) Input Frequency or DC Input
- Automatic Reverse Current Block
- 24kHz PWM Output Frequency
- Configurable Current Limit
- Short-Circuit Protection (SCP)
- Over-Voltage Protection (OVP)
- Standby Mode
- Selectable FG or RD Output
- Available in a TSOT23-6-SL Package
Active Part Numbers:
MP6653BGJS-xxxx-Z MP6653BGJS-xxxx-P MP6653BGJS-0000-Z MP6653BGJS-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
