MP6652B
Session textval
Session Titefor popup
Description

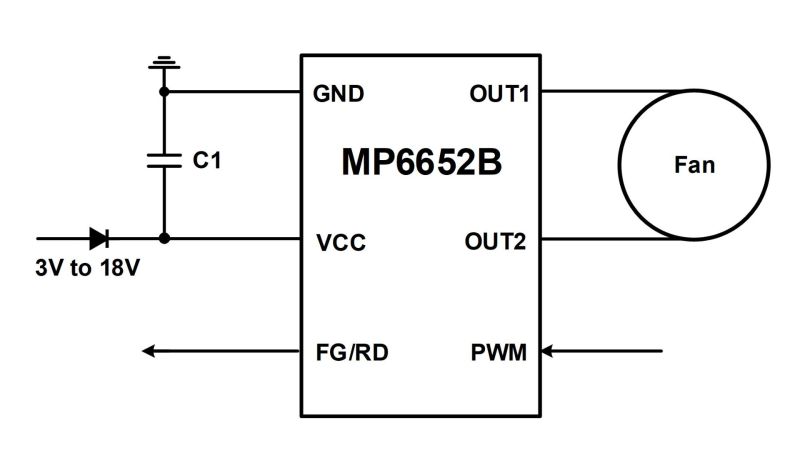

The MP6652B is a single-phase brushless DC (BLDC) motor driver with integrated power MOSFETs and a Hall-effect sensor. It drives a single-phase brushless DC fan motor with up to 1.3A of peak output current (IOUT). The input voltage (VCC) ranges from 3V to 18V.
The device controls the rotational speed through the pulse-width modulation (PWM) signal on the PWM pin. The device features a built-in, configurable curve speed function that is ideal for cooling fan applications, which require flexible speed curve control.
The MP6652B provides rotational speed detection. The rotational speed detector (the FG/RD pin) is an open-drain output. It outputs a high or low voltage relative to the internal Hall comparator’s output. Higher speeds produce higher frequency signals.
Full protections include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, and thermal shutdown.

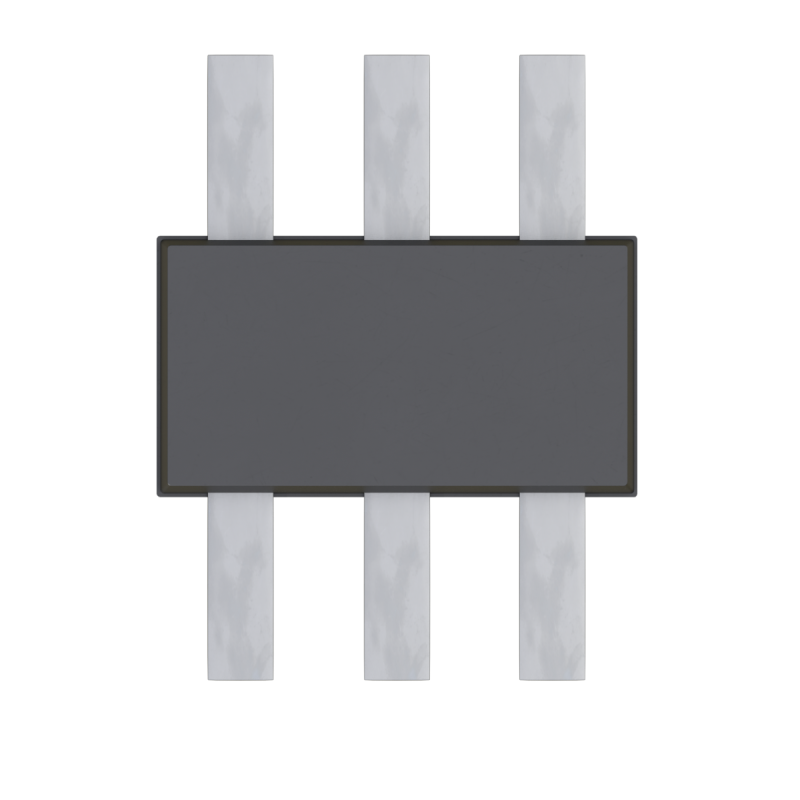

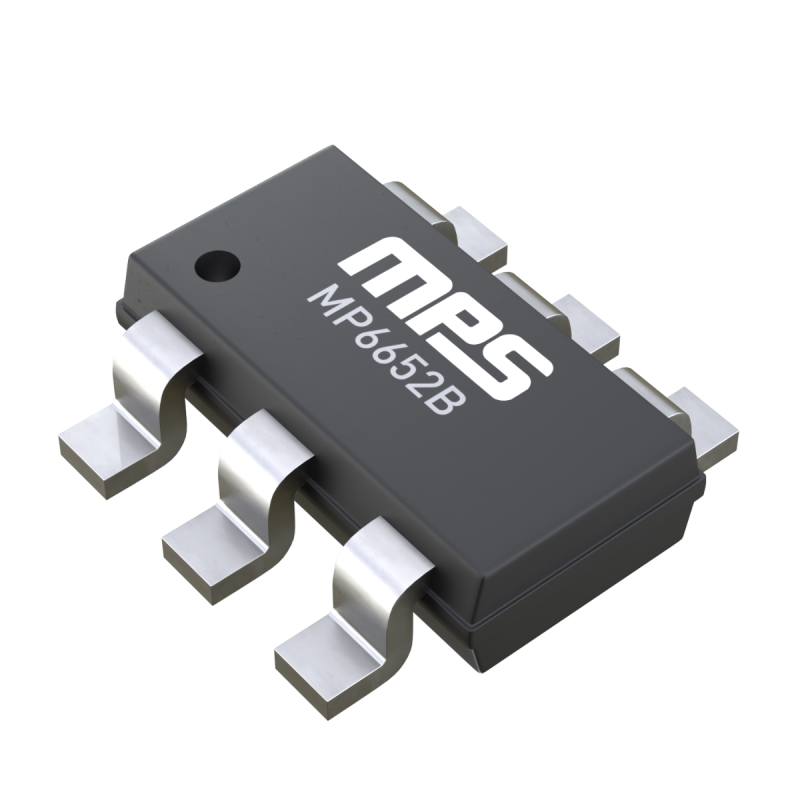

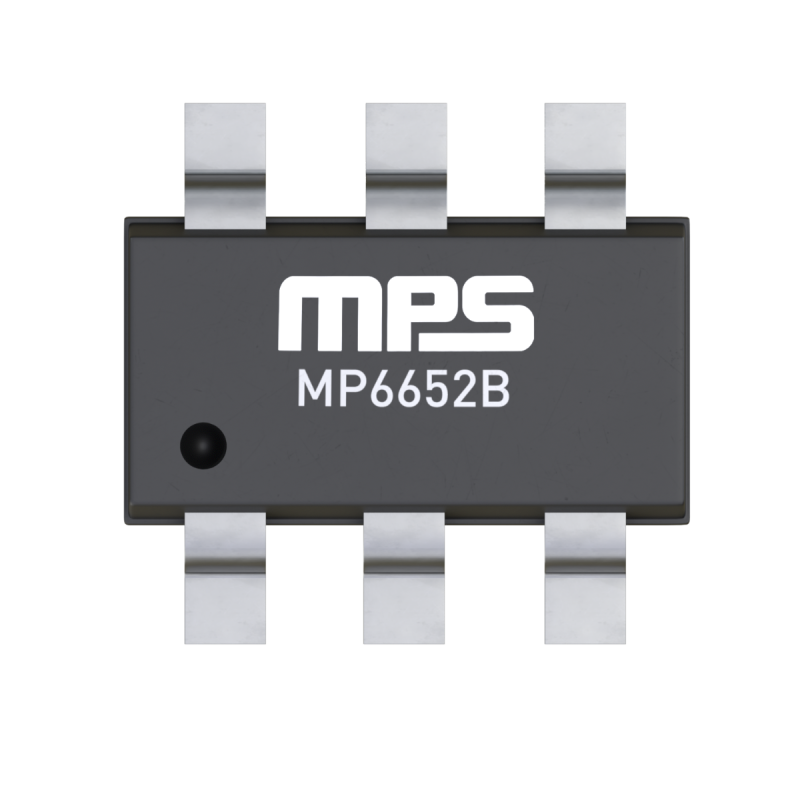

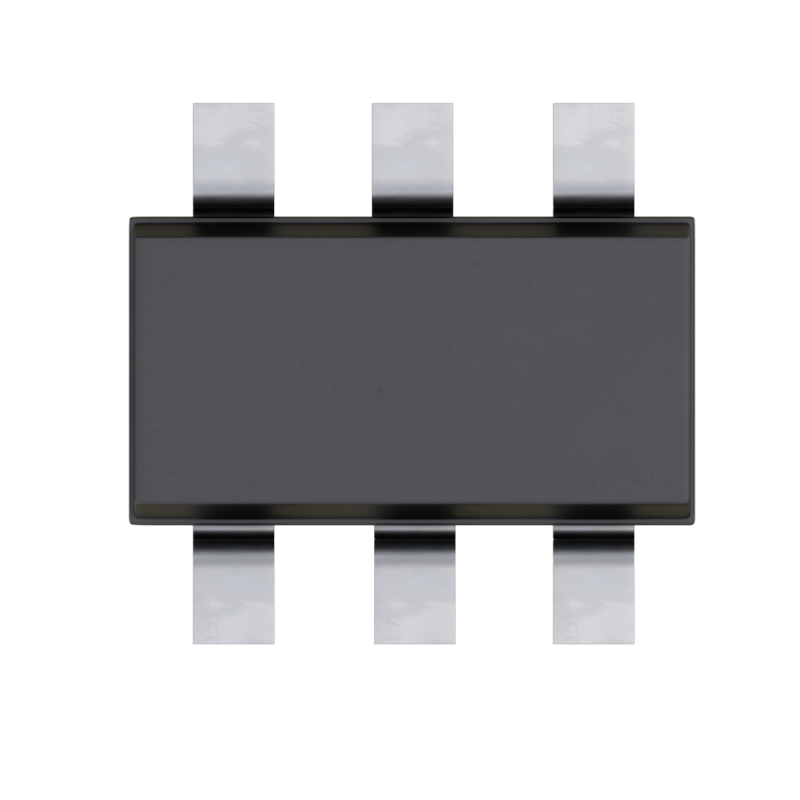

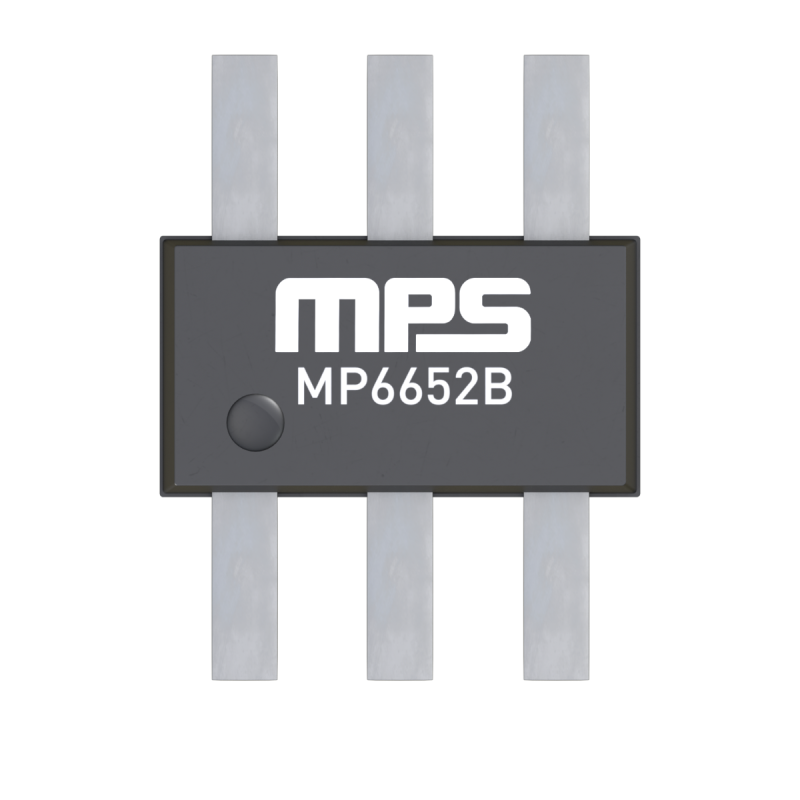

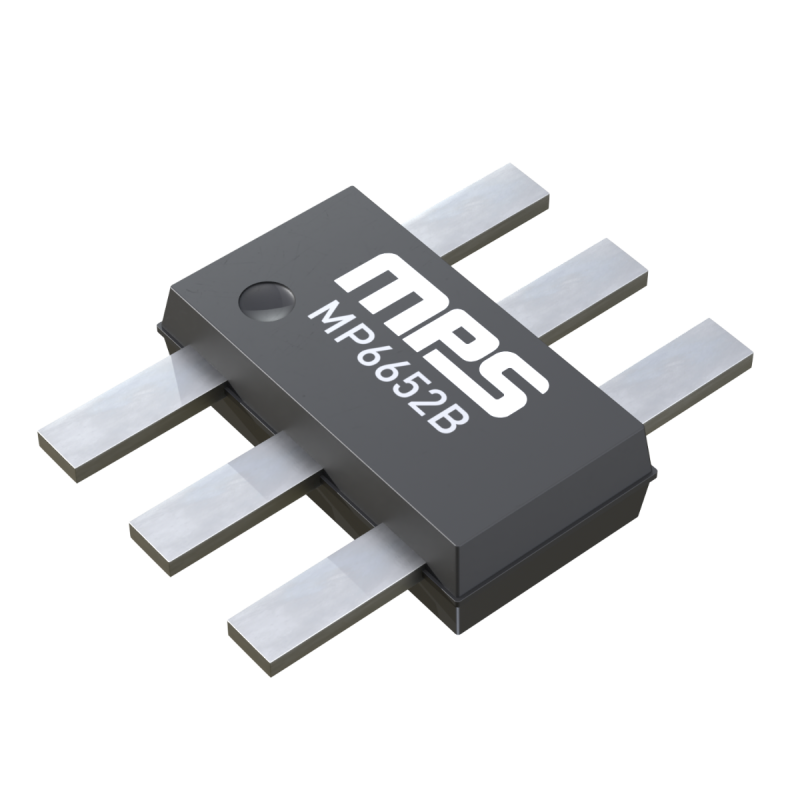

The MP6652B is available in TSOT23-6-L and TSOT23-6-SL packages.
-
Show more
Show less
Features & Benefits
- On-Chip Hall Sensor
- Wide 3V to 18V Operating Input Voltage (VCC) Range
- Integrated Power MOSFETs: Total 850mΩ High-Side and Low-Side MOSFETs (HS-FET and LS-FET, Respectively)
- Configurable Starting Duty Cycle
- Rotational Speed Indication via FG Signal
- Locked-Rotor Protection Fault Indication
- 1kHz to 100kHz Pulse-Width Modulation (PWM) Input Frequency Range
- Optional 27kHz/54kHz Output Switching Frequency (fSW)
- Configurable Soft-On/Off Commutation Angle (Max 90°)
- Configurable Soft Start (SS)
- Locked-Rotor Protection with Auto-Recovery
- FG Outputs 0.5x, 1x, or 2x Original Hall Frequency
- Thermal Protection with Auto-Recovery
- Built-In Input Over-Voltage Protection (OVP) and Under-Voltage Lockout (UVLO) with Auto-Recovery
- Available in TSOT23-6-L and TSOT23-6-SL Packages
Active Part Numbers:
MP6652BGJS-xxxx-Z MP6652BGJS-xxxx-P MP6652BGJS-0000-Z MP6652BGJS-0000-P MP6652BGJL-xxxx-Z MP6652BGJL-xxxx-P MP6652BGJL-0000-Z MP6652BGJL-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
