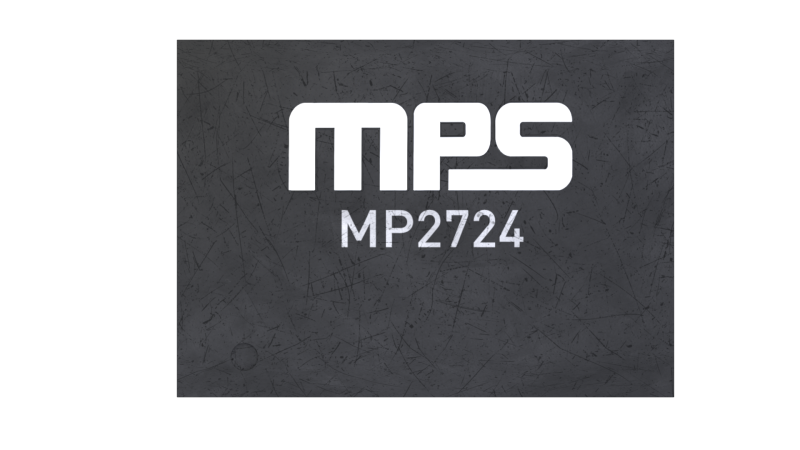

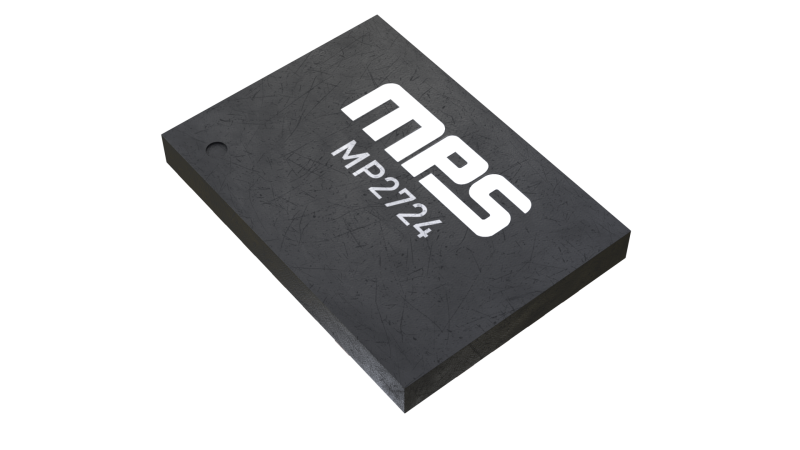

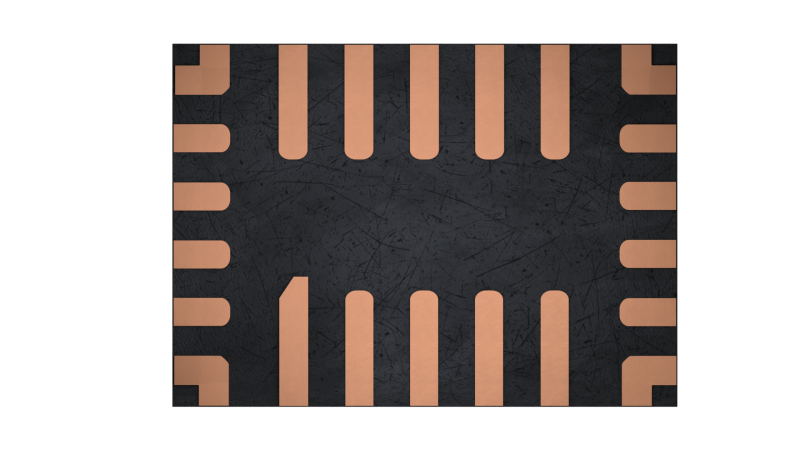

MP2724
2.2A, Single-Cell, I2C-Controlled Buck Charger with USB Type-C Sink Mode and 15mA Termination Current
Active Part Numbers:
MP2724GRH-xxxx-Z MP2724GRH-0000-Z MP2724GRH-xxxx-P MP2724GRH-0000-P
Meaning of P & Z
Related Products

EV2724-RH-00A I2C-Controlled, Single-Cell, 2.2A, NVDC Buck Charger with USB Type-C Sink Mode Evaluation Board
The EV2724-RH-00A is an evaluation board designed to demonstrate the capabilities of the MP2724, a highly integrated, 2.2A, switch-mode battery management device for single-cell Li-ion or Li-polymer batteries. The narrow-voltage DC (NVDC) power path management (PPM) structure provides a low-impedance power path, which optimizes charging efficiency, reduces battery charging time, and extends battery life during discharging.
The MP2724 supports USB Type-C sink mode to detect the current capability of a USB Type-C adapter. USB Battery Charging Specification 1.2 (BC1.2) and non-standard adapter detection are also supported by the input source type identification algorithm.
The I2C interface offers complete operating control, charging parameter configuration, and status/interrupt monitoring.
The MP2724 supports a fully customizable JEITA profile with configurable temperature windows and actions.
The EV2724-RH-00A supports input sources up to 6.3V. It also supports boost mode and USB On-The-Go (OTG) operation by supplying a voltage between 5V and 5.35V at the IN pin.
Communication Interface Device USB to I2C/PMBus, included with product evaluation kit or can be purchased separately.
