MP2722A

MP2722A

5A, Single-Cell, I²C-Controlled NVDC Buck Charger with Integrated USB Type-C DRP Detection and 3.1V Battery UV

Description

The MP2722A is a highly integrated, 5A, switch-mode battery management device for single-cell Li-ion or Li-polymer batteries. The narrow-voltage DC (NVDC) power management structure provides a low-impedance power path that optimizes charging efficiency, reduces battery charging time, and extends battery life during discharging.

The MP2722A is USB Type-C 1.3 complaint and features dual-role power (DRP) mode with sink-preferred (try.SNK) and source-preferred (try.SRC) support. The device’s input source type identification algorithm supports USB Battery Charging specification 1.2 (BC 1.2) and non-standard adapter detection.

The I²C interface offers complete operating control, including charging parameter configurations and status/interrupt monitoring.

The MP2722A supports a fully customizable JEITA profile with configurable temperature windows and actions.

The MP2722A is available in a QFN-22 (2.5mmx3.5mm) package.

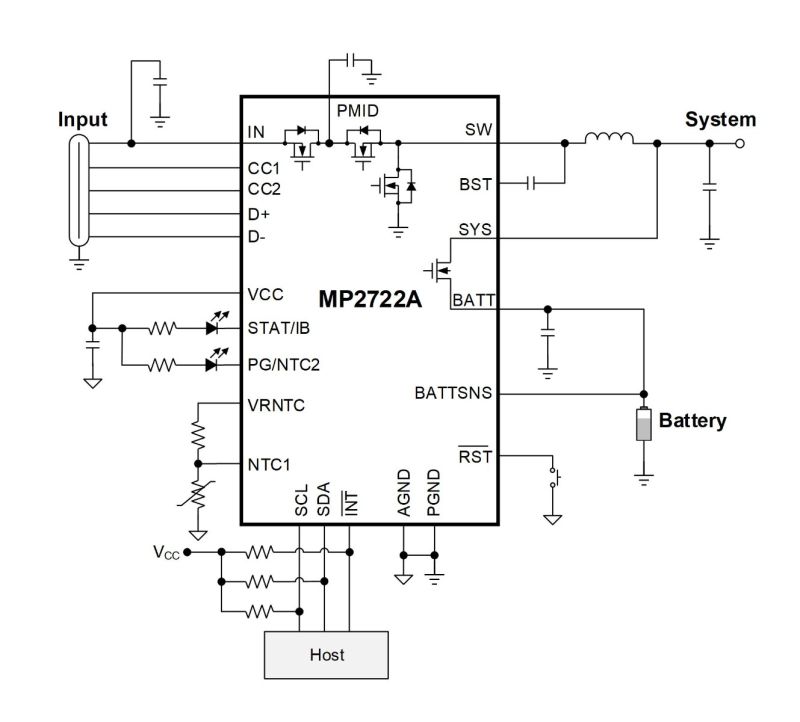

Features & Benefits

USB Type-C 1.3 Compliant
Fully Integrated CC Controller with Dual Role Power (DRP) Mode and Autonomous or Manual Mode
Try.SNK and Try.SRC Mode Support
Supports USB BC 1.2 and Non-Standard Adapters
26V Sustainable Input Voltage (V_IN)
Configurable 80mA to 5A Charge Current (I_CC) via the I²C
Configurable 100mA to 3.2A Input Current Limit (I_{IN_LIM}) via the I²C
Minimum V_IN Loop for Maximum Adapter Power Tracking
Comprehensive Safety Features:
- Fully Customizable JEITA Profile
- Additional Negative Temperature Coefficient (NTC) Thermistor Input
- Configurable Die Temperature Regulation from 60°C to 120°C
- Complete Charge and Pre-Charge Safety Timers
- Watchdog Safety Timer
- Lockable Registers for Charging Parameters
Configurable 750kHz to 1.5MHz Switching Frequency (f_SW)
Integrated, 15mΩ, Low On Resistance (R_DS(ON)) Battery MOSFET with Shipping and Reset Modes
Ultra-Low 8.5μA Battery Discharge Current in Shipping Mode
Down to 15mA Termination Current Settings for Wearable Applications
I²C Port for Flexible System Parameter Setting and Status Reporting
Configurable Boost Converter for Source Mode and USB On-The-Go (OTG):
- Configurable Output Current Limit Loop Up to 3A
- Output Over-Current Protection (OCP)
- Ability to Power into Large Capacitive Loads Up to 2mF
- Configurable 5V to 5.35V Output Voltage
Accuracy:
- ±0.5% Battery Regulation Voltage (V_{BATT_REG})
- ±5% I_CC
- ±5% I_{IN_LIM}
- Remote Battery Sensing for Fast Charge
- ±2% Output Regulation in Boost Mode
Available in a Small QFN-22 (2.5mmx3.5mm) Package

Active Part Numbers:

MP2722AGRH-xxxx-Z MP2722AGRH-xxxx-P MP2722AGRH-0000-Z MP2722AGRH-0000-P
