MP2228

MP2228

High-Efficiency, 2A, 16V, 800kHz, Synchronous, Step-Down Converter with External Soft Start and Light Load Mode

Datasheet

Description

The MP2228 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current with excellent load and line regulation over a wide input supply range. The MP2228 has synchronous mode operation for higher efficiency over the output current load range.

Current-mode operation provides fast transient response and eases loop stabilization.

Full protection features include over-current protection and thermal shut down.

The MP2228 requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package.

Features & Benefits

6V-to-16V OperatingInputRange
100mΩ/40mΩ Low R_DS(ON) Internal Power MOSFETs
High-Efficiency Synchronous Mode Operation
Fixed 800kHz Switching Frequency
External AAM pin for Power-Save Mode Programming
External Soft-Start
OCP Protection and Hiccup
Thermal Shutdown
Output Adjustable from 0.8V
Available in an 8-pin TSOT-23 Package

Active Part Numbers:

MP2228GJ-P MP2228GJ-Z

Meaning of P & Z

Related Products

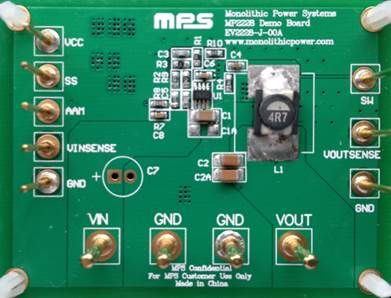

EV2228-J-00A High-Efficiency, 2A, 16V, 800kHz Sync. Step-Down Switch Evaluation Board

The EV2228-J-00A demonstrates MPS’s MP2228, a high-frequency, synchronous, rectified, step-down converter with built-in high-side and low-side power MOSFETs. The MP2228 offers a very compact solution to achieve a 2A continuous output current with excellent load and line regulation over a wide input supply range. The MP2228 has synchronous mode operation for higher efficiency over the output current load range.

Current-mode operation provides fast transient response and eases loop stabilization.

Full protection features includes over-current protection and thermal shutdown.

The MP2228 is available in a space-saving 8-pin TSOT23 package.
