MPQ3322-AEC1

MPQ3322-AEC1

24-Channel, Max 100mA/Channel, Current-Source LED Driver with Independent PWM and Analog Dimming, AEC-Q100 Qualified

概要

The MPQ3322-AEC1 is a 24-channel LED driver with a 24V voltage rating and maximum 100mA current sources. It is designed to drive LED arrays for backlighting, RGB lighting, and interior ambient lighting in automotive LCD panels and lamps.

The MPQ3322-AEC1 employs low headroom to regulate the LED current (I_LEDx, where x = 1 to 24). The adaptive voltage feedback (AVF) for the previous power stage optimizes the output voltage (V_OUT) for LED strings, which achieves higher system efficiency.

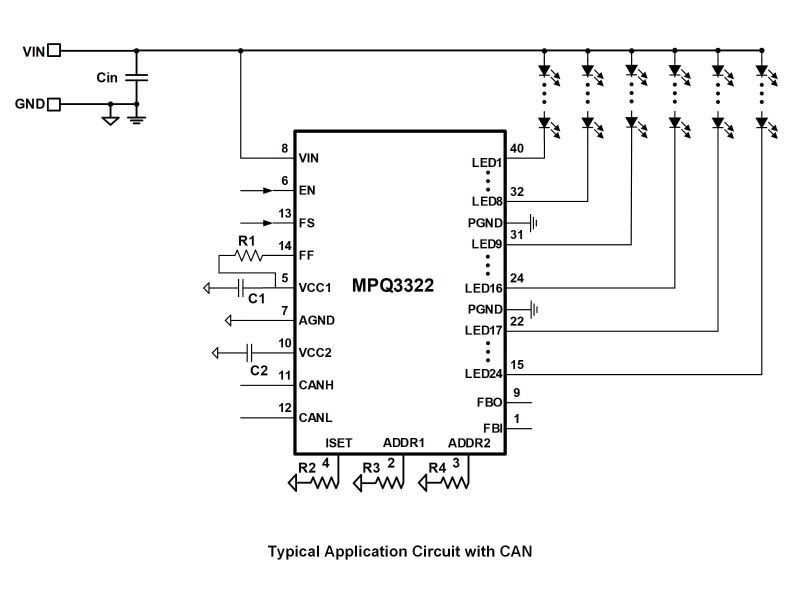

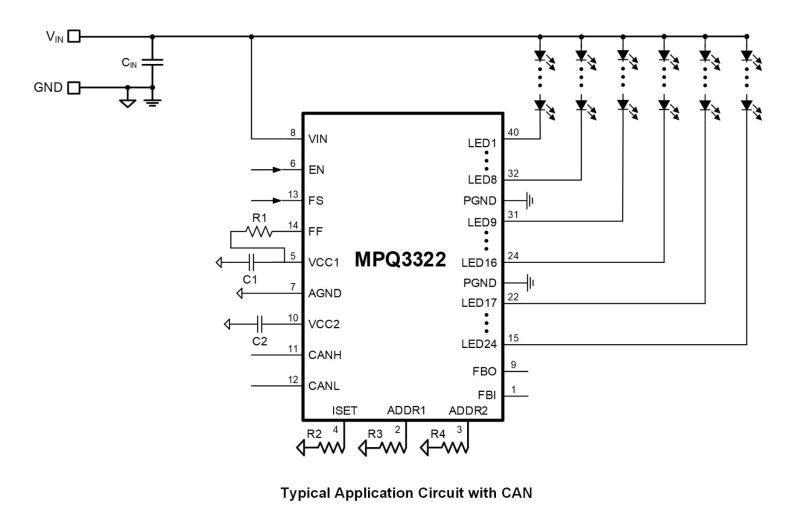

The device supports independent 12-bit pulse-width modulation (PWM) and 6-bit analog dimming for each channel via the based-controller area network (CAN) differential interface. The resistor on the ISET pin (R_ISET) configures the maximum I_LEDx amplitude.

Robust protections are included to guarantee safe device operation. Protection modes include LED open protection, LED short protection (with a configurable threshold via the STH bits (04h, bits[1:0]), and over-temperature protection (OTP). All fault statuses can be read through the CAN interface. In addition, the failsafe function ensures that the MPQ3322-AEC1 remains operating in a preset state if communication information is lost.

The FF pin and single lamp mode (SLM) support single-IC and multi-IC applications for two fault statuses. If one channel fails, then the IC either only turns off the failed LED string or shuts down all channels.

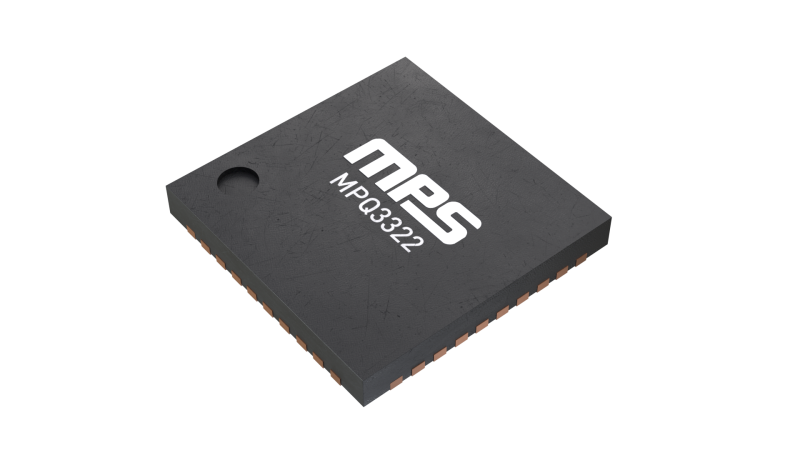

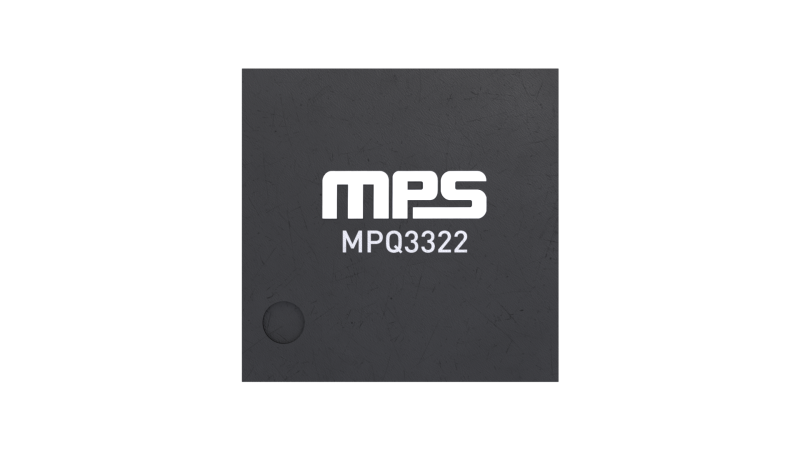

The MPQ3322-AEC1 is available in a QFN-40 (6mmx6mm) package with wettable flanks, and is available in AEC-Q100 Grade 0.

機能と利点

3.5V to 22V Input Voltage (V_IN) Range
24 Channels with Max 100mA per Channel
<2.5% Current Matching
Low Dropout Voltage (500mV at 100mA)
Independent 12-Bit Pulse-Width Modulation (PWM) Dimming
Independent 6-Bit Analog Dimming
Adaptive Voltage Feedback (AVF) Function
2MHz Based Controller Area Network (CAN) Differential Interface

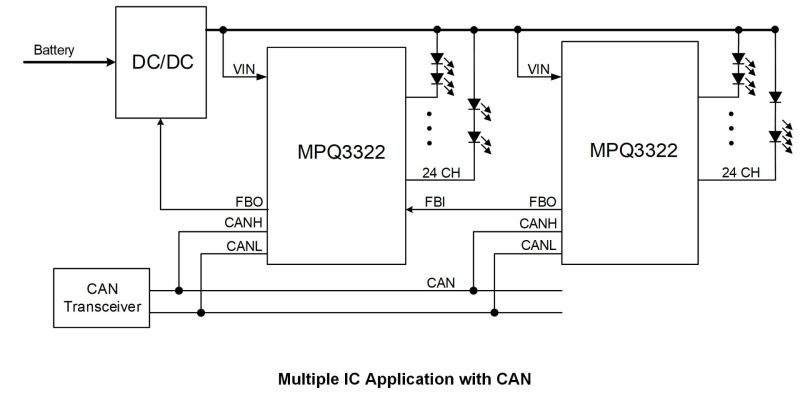

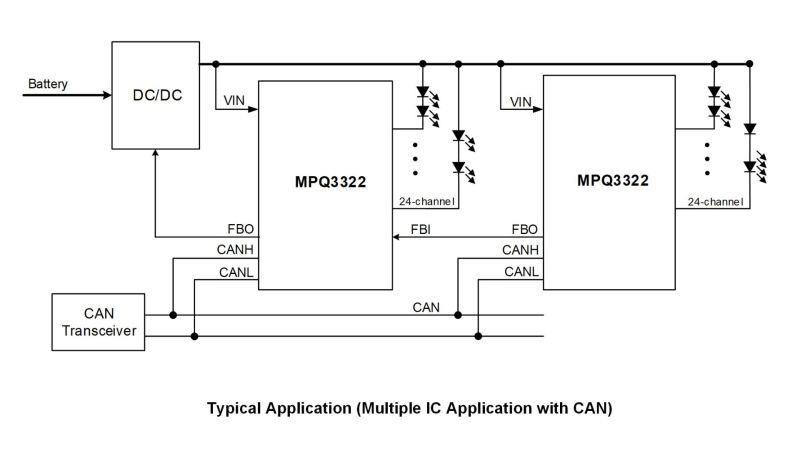

Cascades Up to 16 ICs (Pin-Configurable Device Address)
Improves EMI with LED Current (I_LEDx, Where x = 1 to 24) with Slew Rate and Phase Shift
LED Open/Short Protection
Fault Indicator Signal Output
Configurable FF Mode: Fault Flag Mode (FFM) and Single Lamp Mode (SLM)
Failsafe for Loss of Communication
Failsafe Mode Set Function
One-Time Programmable (OTP) Memory

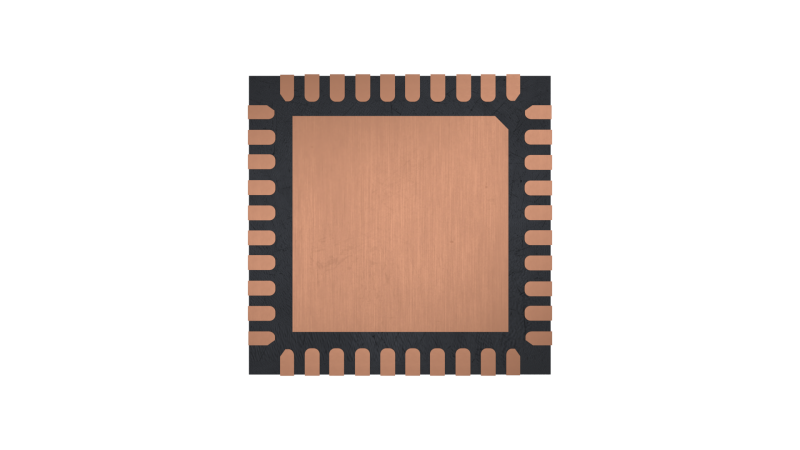

Available in a QFN-40 (6mmx6mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 0
