MP87595

MP87595

Dual 90A, Intelli-Phase^TM Solution in an LGA-40 (6mmx6mm) Package

概要

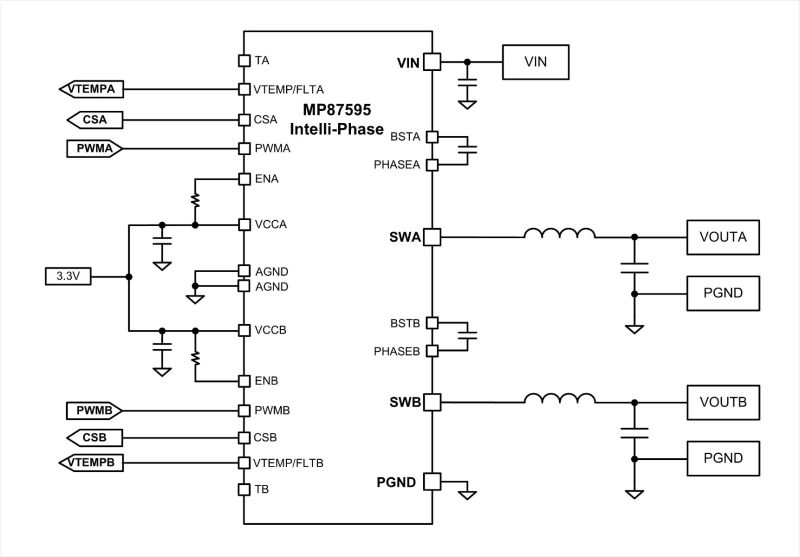

The MP87595 is a dual monolithic half-bridge Intelli-Phase^TM solution with built-in, internal power MOSFETs and gate drivers. It achieves up to 90A of continuous output current (I_OUT) per output across a wide input voltage (V_IN) range.

The integration of drivers and MOSFETs results in high efficiency due to optimal dead time (DT) and reduction of parasitic inductance. The device can operate from 100kHz to 3MHz.

The MP87595 offers many features to simplify system design. It works with controllers with a tri-state pulse-width modulation (PWM) signal.

The MP87595 is ideal for computing applications, where efficiency and small size are at a premium. It is available in an LGA-40 (6mmx6mm) package.

機能と利点

3V to 16V Operating Input Voltage (V_IN)
Dual Phase Operation, 90A Output Current (I_OUT) per Phase
Accu-Sense^TM Current Sense
Individual Junction Temperature (T_J) Sense and Reporting
Accepts Tri-State Pulse-Width Modulation (PWM) Signal
Positive Current Limit with Hysteresis
Negative Current Limit
Fast Catastrophic Fault Response
Quiet Switcher^TM Technology (QST^TM) Limits Peak Switching Voltage with Minimal Dependency on PCB Layout
Available in Exposed Top Package for Low Junction-to-Case Top Thermal Resistance
Available in a Common-Footprint LGA-40 (6mmx6mm) Package
