MP87000-M

MP87000-M

90A, Intelli-Phase^TM DrMOS Solution in TLGA-41 (5mmx6mm) Package with Quiet Switcher^TM Technology

概要

The MP87000-M is a monolithic half-bridge Intelli-Phase^TM solution with built-in internal power MOSFETs and gate drivers. It can achieve up to 90A of continuous output current (I_OUT) across a wide input voltage (V_IN) supply range.

Quiet SwitcherTM technology (QST^TM) utilizes a proprietary circuit design that can only be achieved in a monolithic architecture to suppress voltage ringing. This technology limits peak switching voltages to <2V above V_IN, improving device reliability, lowering EMI, and reducing sensitivity to PCB layout.

The MP87000-M offers many features to simplify system design. This device operates with state pulse-width modulation (PWM) signal controllers, and features Accu-Sense^TM current sensing and temperature sensing to monitor the inductor current (I_L) and report the junction temperature (T_J), respectively.

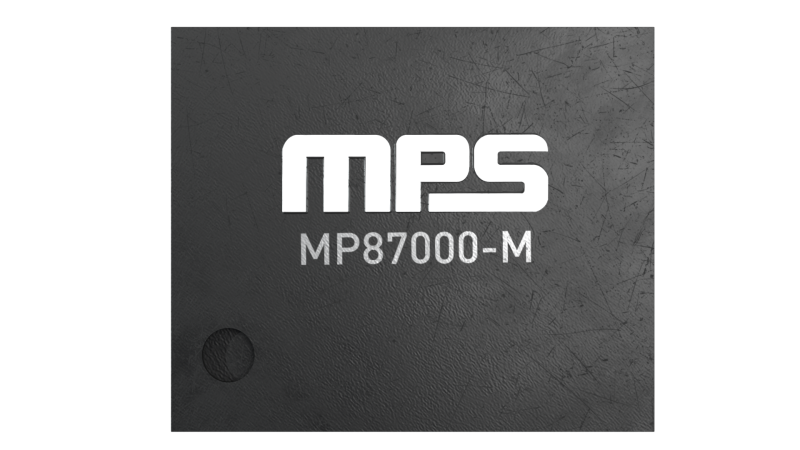

The MP87000-M is ideal for server applications where efficiency and small size are at a premium. The MP87000-M is available in a TLGA-41 (5mmx6mm) package.

機能と利点

Quiet SwitcherTM Technology (QST^TM) Limits Peak Switching Voltages to <2V above the Input Voltage (V_IN) with Minimal Reliance on PCB Layout
Wide 3V to 16V Operating V_IN Range
90A Output Current (I_OUT)
Accu-Sense^TM Current Sense
Temperature Sense
Accepts Tri-State Pulse-Width Modulation (PWM) Signals
Current-Limit Protection
Over-Temperature Protection (OTP)
Fault Reporting
Available in a TLGA-41 (5mmx6mm) Package
