OrderMPQ4483-AEC1
3A, 36V Step-Down Converter with DCP Mode, CDP Mode, and Ground-to-Battery Short Protection for Automotive, AEC-Q100 Qualified
Session textval
Session Titefor popup
- Vin (min) (V)4.2
- Vin (max) (V)36
- Iout (max) (A)3
- Iq (typ) (mA)1
- Vfb (V)1
- fsw (max) (kHz)2200
- Control ModeCurrent Mode

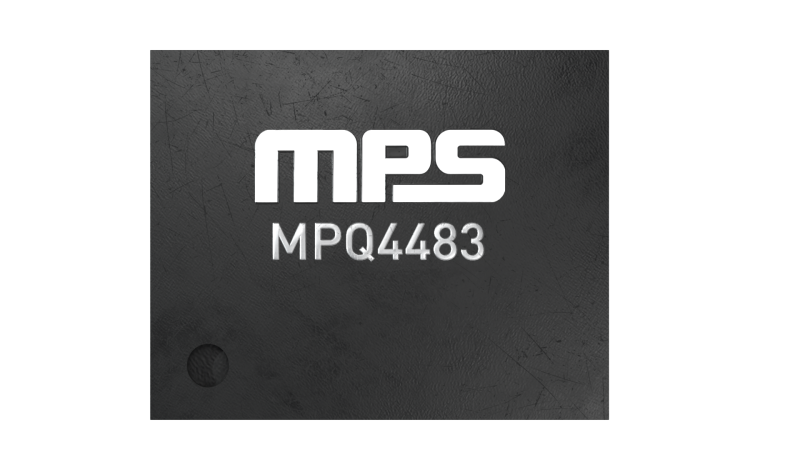

- Package (mm)QFN-25 (4x5)
- GradeAutomotive
The MPQ4483 is a high-frequency, synchronous, rectified, step-down switch-mode converter. It can achieve up to 3A of output current (IOUT) across a wide input voltage (VIN) range, with excellent load and line regulation. The MPQ4483 provides synchronous mode to achieve higher efficiency across the output load range.
The MPQ4483 provides a constant-current (CC) limit function for the output with two adjustable CC limit thresholds. The device also supports BC 1.2 dedicated charging port (DCP) mode and charging downstream port (CDP) mode.
Fault condition protections include current limiting in hiccup mode, over-voltage protection (OVP), ground-to-battery short protection, and thermal shutdown.
The MPQ4483 requires a minimal number of readily available, standard external components, and is available in a QFN-25 (4mmx5mm) package.
-
Show more
Show less
Features & Benefits
- Supports BC 1.2 Charging Downstream Port (CDP) Mode
- Supports BC 1.2 Dedicated Charging Port (DCP) Mode, Apple Divider Mode, and 1.2V/1.2V Mode
- Supports Bidirectional USB 2.0 High-Speed Data Switch
- 4.2V to 36V Operating Input Voltage (VIN) Range
- Up to 3A Output Current (IOUT)
- Internal, Automatic Enable (EN) Pull-Up
- 25mΩ and 20mΩ Low On Resistance (RDS(ON)) Internal Buck Power MOSFETs
- Integrated 4mΩ Ground-Sensing Resistor
- 200kHz to 2.2MHz Adjustable Frequency
- Adjustable, Two-Level Constant-Current (CC) Limit
- Forced Pulse-Width Modulation (PWM) Mode
- 200kHz to 2.2MHz SYNC Frequency
- Spread Spectrum Option with 450kHz Switching Frequency (fSW)
- EN Shutdown Discharge
- Low-Dropout (LDO) Mode
- Battery-to-Ground Short Protection Driver
- Output Over-Voltage Protection (OVP)
- Adjustable Line Drop Compensation
- Supports 1V to 20V Adjustable Output

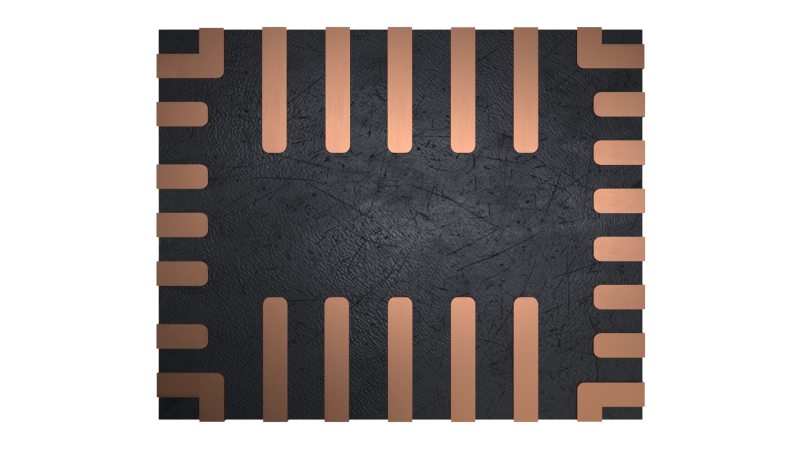

- Available in a QFN-25 (4mmx5mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ4483GV-AEC1-Z MPQ4483GV-AEC1-P MPQ4483GV-FD-AEC1-Z MPQ4483GV-FD-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
