MPQ4334J-AEC1

MPQ4334J-AEC1

36V, 0.5A to 4A, Low-EMI, Synchronous Step-Down Converter, AEC-Q100 Qualified

Description

The MPQ4334J-AEC1 is a configurable-frequency (200kHz to 2.5MHz), synchronous, step-down switching regulator with integrated internal high-side and low-side power MOSFETs (HS-FET and LS-FET, respectively). The device provides 0.5A to 4A of highly efficient output current (I_OUT) with peak current mode control.

The wide 3V to 36V input voltage (V_IN) range and 40V load dump tolerance accommodate a variety of step-down applications in automotive input environments. A 0.5μA shutdown current (I_SD) allows the device to be used in battery-powered applications.

High power conversion efficiency across a wide load range is achieved by scaling down the switching frequency (f_SW) under light-load conditions to reduce switching and gate driver losses. An open-drain power good (PG) signal indicates whether the output voltage (V_OUT) is within 94.5% to 105.5% of its nominal value.

Frequency foldback helps prevent inductor current (I_L) runaway during start-up. Thermal shutdown provides reliable, fault-tolerant operation. A high duty cycle and low-dropout (LDO) mode are provided for automotive cold-crank conditions.

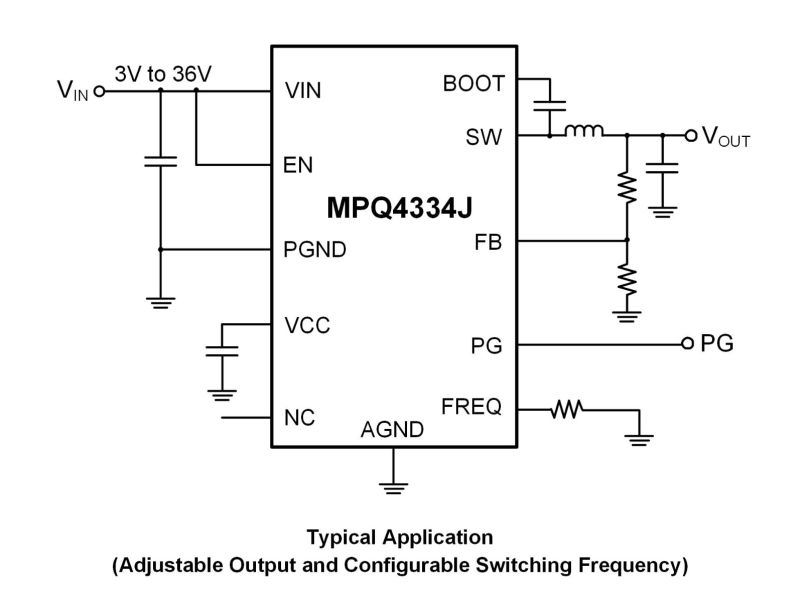

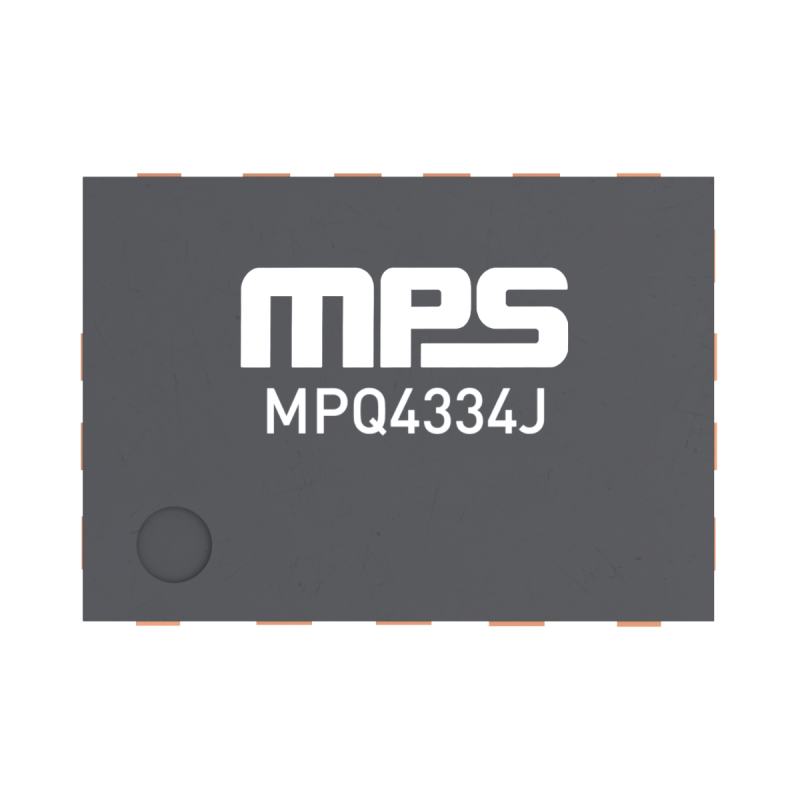

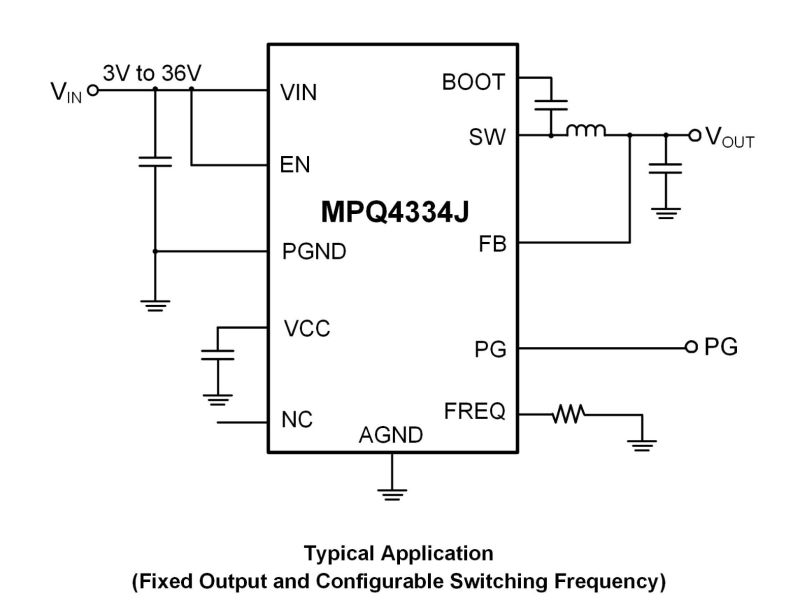

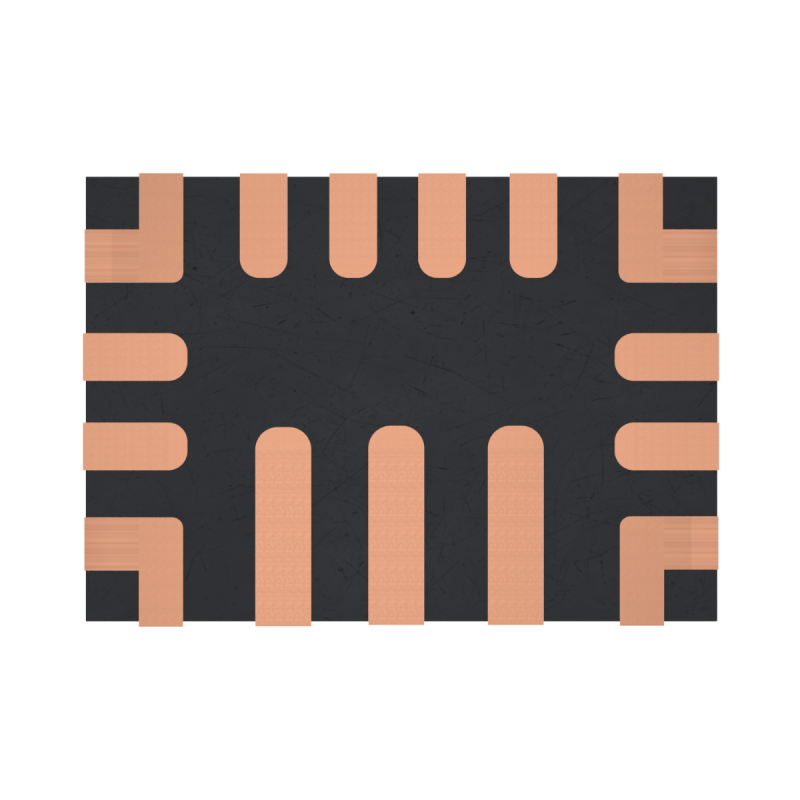

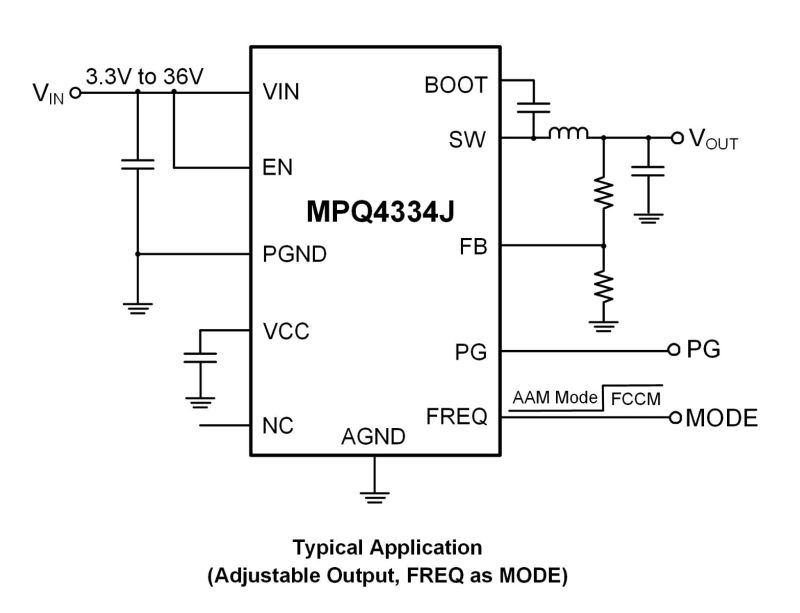

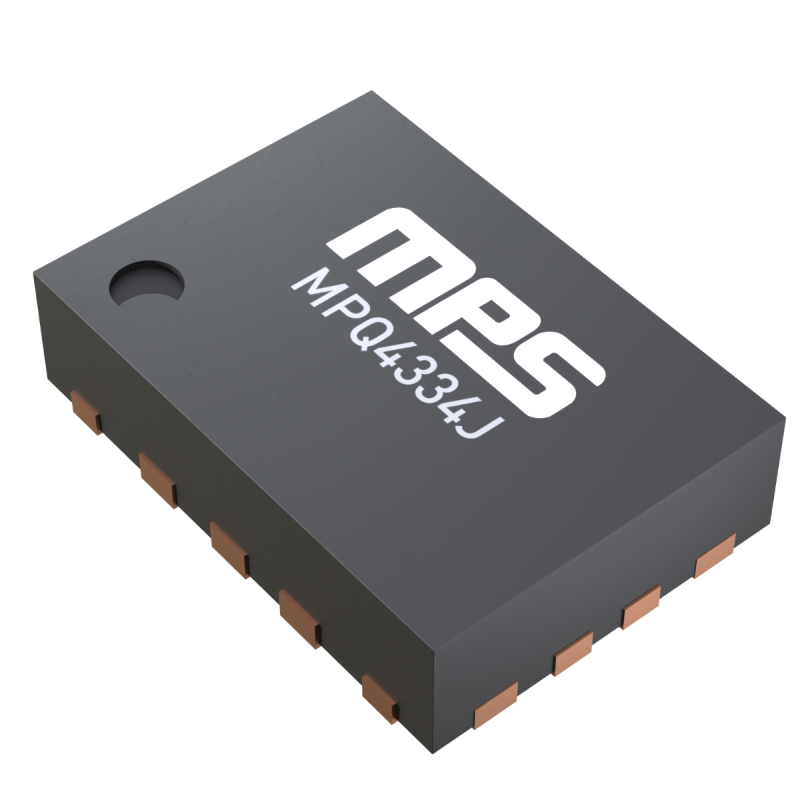

The MPQ4334J-AEC1 is available in a QFN-15 (2.5mmx3.5mm) package, and is available in AEC-Q100 Grade 1.

Features & Benefits

Designed for Automotive Applications:
- Survives 40V Load Dump
- Wide 3V to 36V Operating Input Voltage (V_IN) Range
- Supports Cold Crank Down to 3V
- Low-Dropout (LDO) Mode with Soft Recovery
- 0.5A to 4A Continuous Output Current (I_OUT) Versions in Pin-Compatible Family
- 55ns Minimum On Time (t_{ON_MIN}) and 45ns Minimum Off Time (t_{OFF_MIN})
- Available in AEC-Q100 Grade 1
Increases Battery Life:
- 0.5μA Shutdown Current
- 20μA Sleep-Mode Quiescent Current (I_Q) Advanced Asynchronous Modulation (AAM) Mode Increases Efficiency under Light Loads
- Integrated 65mΩ High-Side MOSFET (HS-FET) and 45mΩ Low-Side MOSFET (LS-FET)

Optimized for EMC/EMI Reduction:

CISPR 25 Class 5 Compliant
200kHz to 2.5MHz Configurable Switching Frequency (f_SW)

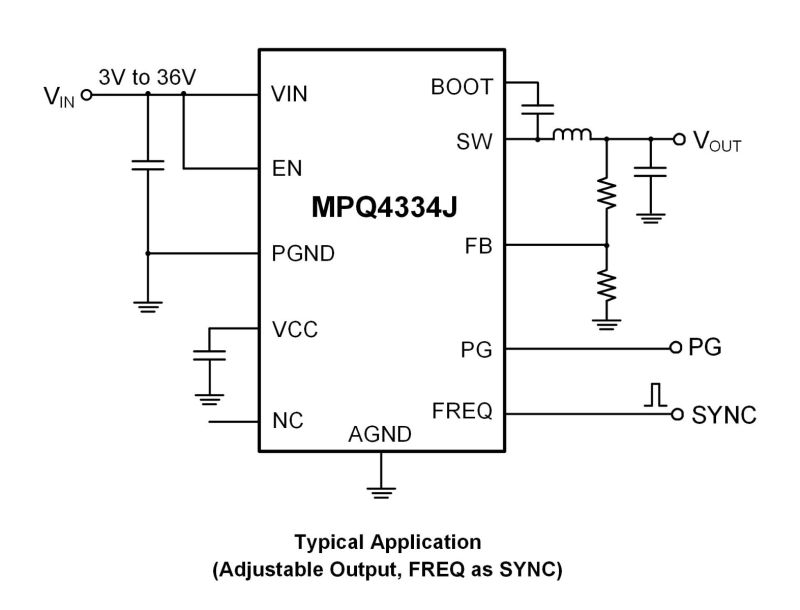

Synchronizable to an External Clock
Frequency Spread Spectrum (FSS) Modulation
Quiet-FET^TM Technology for Reduced EMI at the TV Band
Symmetric V_IN Pinout
MeshConnect^TM Flip-Chip Package

Additional Features:

Power Good (PG) Output
Over-Current Protection (OCP) with Hiccup Mode
Fixed-Output Options (1): 1V, 1.8V, 2.5V, 3.0V, 3.3V, 3.8V, or 5V
Available in a QFN-15 (2.5mmx3.5mm) Package
Available in a Wettable-Flank Package

Functional Safety System Design Capable:

MPSafe^TM Compatible – Functional Safety Supporting Document Available

Active Part Numbers:

MPQ4334JGRHE-0000-AEC1-Z MPQ4334JGRHE-0000-AEC1-P MPQ4334JGRHE-0002-AEC1-Z MPQ4334JGRHE-0002-AEC1-P MPQ4334JGRHE-1002-AEC1-Z MPQ4334JGRHE-1002-AEC1-P MPQ4334JGRHE-1332-AEC1-Z MPQ4334JGRHE-1332-AEC1-P MPQ4334JGRHE-2002-AEC1-Z MPQ4334JGRHE-2002-AEC1-P MPQ4334JGRHE-2008-AEC1-Z MPQ4334JGRHE-2008-AEC1-P MPQ4334JGRHE-2502-AEC1-Z MPQ4334JGRHE-2502-AEC1-P MPQ4334JGRHE-2505-AEC1-Z MPQ4334JGRHE-2505-AEC1-P MPQ4334JGRHE-2AF8-AEC1-Z MPQ4334JGRHE-2AF8-AEC1-P MPQ4334JGRHE-3000-AEC1-Z MPQ4334JGRHE-3000-AEC1-P MPQ4334JGRHE-3002-AEC1-Z MPQ4334JGRHE-3002-AEC1-P MPQ4334JGRHE-3007-AEC1-Z MPQ4334JGRHE-3007-AEC1-P MPQ4334JGRHE-3502-AEC1-Z MPQ4334JGRHE-3502-AEC1-P MPQ4334JGRHE-35F2-AEC1-Z MPQ4334JGRHE-35F2-AEC1-P MPQ4334JGRHE-4000-AEC1-Z MPQ4334JGRHE-4000-AEC1-P MPQ4334JGRHE-4001-AEC1-Z MPQ4334JGRHE-4001-AEC1-P MPQ4334JGRHE-4002-AEC1-Z MPQ4334JGRHE-4002-AEC1-P MPQ4334JGRHE-4008-AEC1-Z MPQ4334JGRHE-4008-AEC1-P MPQ4334JGRHE-4502-AEC1-Z MPQ4334JGRHE-4502-AEC1-P

Meaning of P & Z

Related Products

EVQ4334J-RH-4000-00A 36V, 4A, Low Quiescent Current, Synchronous Step-Down Converter Evaluation Board, AEC-Q100 Qualified

The EVQ4334J-RH-4000-00A is an evaluation board designed to demonstrate the capabilities of the MPQ4334JGRHE-4000-AEC1 and the MP4334JGRHE-4000, a configurable-frequency (200kHz to 2.5MHz), synchronous, step-down switching converter with integrated, internal high-side and low-side MOSFETs (HS-FET and LS-FET, respectively).

The MPQ4334JGRHE-4000-AEC1 provides up to 4A of highly efficient output current (I_OUT) with peak current mode control. The wide 3V to 36V input voltage (V_IN) range and 40V load dump tolerance accommodate a variety of step-down applications in automotive input environments. A 0.5μA shutdown mode quiescent current (I_Q) allows the device to be used in battery-powered applications.

The EVQ4334J-RH-4000-00A is a fully assembled and tested evaluation board. The MPQ4334JGRHE-4000-AEC1 and MP4334JGRHE-4000 are each available in a QFN-15 (2.5mmx3.5mm) package with wettable flanks. The MPQ4334JGRHE-4000-AEC1 is AEC-Q100 qualified.

Contact MPS regarding device availability for the MP4334JGRHE-4000.
