MPQ5613B
Session textval
Session Titefor popup

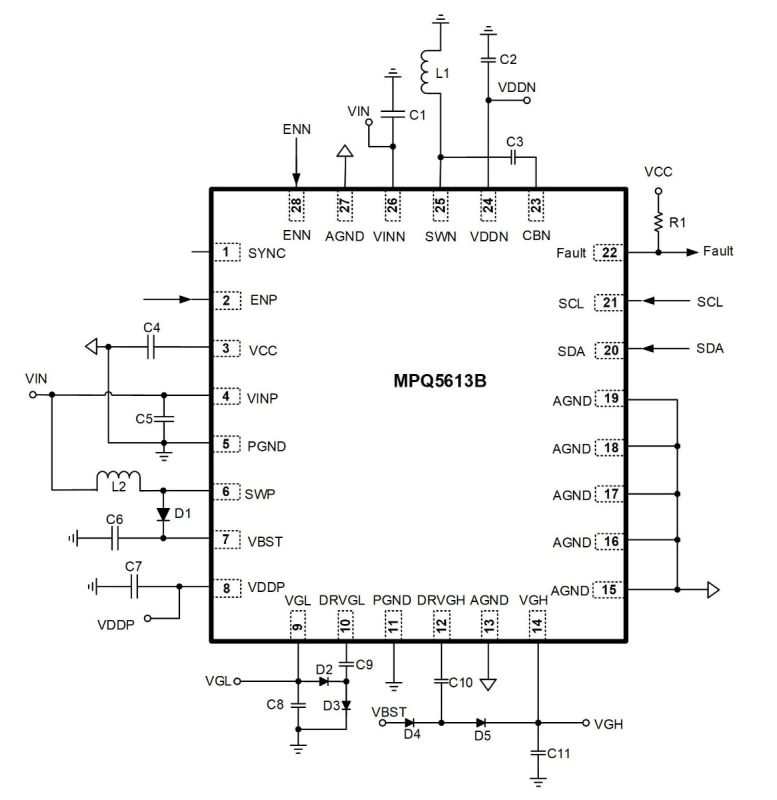

Description
The MPQ5613B is an integrated power supply for automotive LCD TFT bias drivers. The device integrates a configurable, fixed-frequency boost converter (VDDP), a synchronous buck-boost inverter (VDDN), an adjustable positive charge pump output (VGH), and an adjustable negative charge pump output (VGL) for the gate voltages. It also includes a VCOM buffer to minimize the external components. The MPQ5613B is designed to power TFT LCD panels from a regulated 3.3V or 5V supply.
VDDP can output a maximum 9V voltage, VDDN can output a minimum -10.3V negative voltage, VGH can output a maximum 32V voltage, and VGL can output a minimum -15.9V negative voltage.
The I2C interface and configurable power-on sequence for VDDP, VDDN, VGL, and VGH make the IC suitable for different applications. An internal soft-start (SS) function prevents input overload at start-up. Cycle-by-cycle current limiting reduces component stress.
The MPQ5613B is available in a tiny QFN-28 (4mmx5mm) package, and is AEC-Q100 qualified.
-
Show more
Show less
Features & Benefits
- 2.7 to 5.7V Operating Input Voltage (VIN) Range
- 1.8A Current Limit for Boost
- 1.8A Current Limit for Buck-Boost
- 250mΩ MOSFET for Boost
- 200mΩ/250mΩ Power MOSFET for Sync-Buck-Boost
- I2C Interface and 1-Time One-Time Programmable (OTP) Memory for Registers
- Configurable Switching Frequency (fSW), Up to 3MHz
- Frequency Spread Spectrum (FSS) for Improved EMI
- Frequency Synchronization and Interleaved (180°) Buck-Boost and Boost Control for Improved EMI
- Input and Output Disconnection
- Four Outputs with VCOM Buffer in a Single Package:
- Boost Up to 9V, with 300mA Current
- Buck-Boost Inverter Down to -10.3V, with 300mA Current
- Adjustable Positive Charge Pump Up to 32V, with 50mA Current
- Adjustable Negative Charge Pump Down to -15.9V, with 50mA Current
- VCOM Buffer with 25mA Current
- High Efficiency
- Configurable Power-On/Off Sequence
- Cycle-by-Cycle Over-Current Protection (OCP)
- Under-Voltage Lockout (UVLO)
- Fault Flag
- Available in AEC-Q100
- Available in a QFN-28 (4mmx5mm) Package
Active Part Numbers:
MPQ5613BGVE-xxxx-AEC1-Z MPQ5613BGVE-xxxx-AEC1-P MPQ5613BGVE-0000-AEC1-Z MPQ5613BGVE-0000-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
