MPQ5613C
Session textval
Session Titefor popup

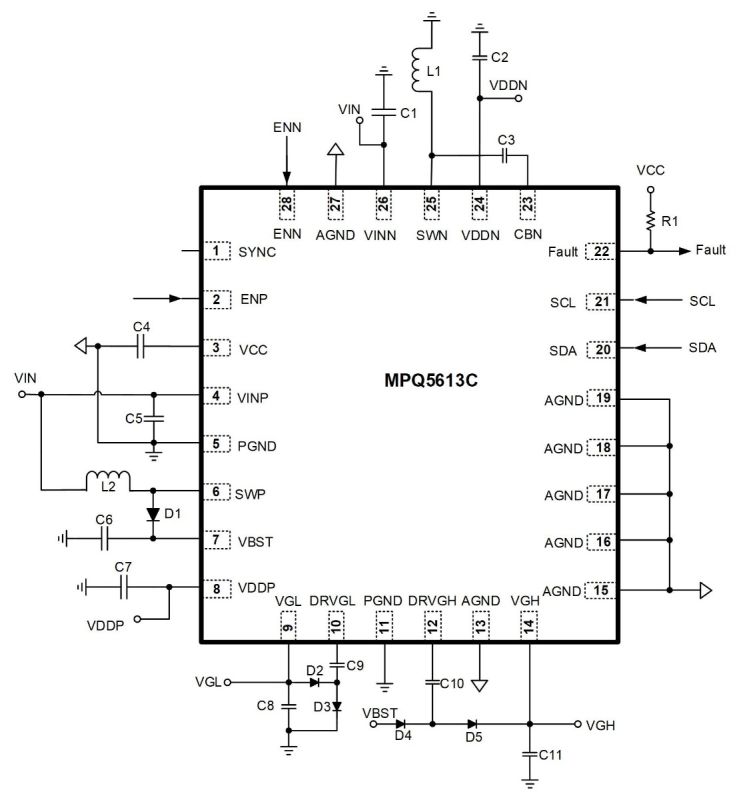

Description
The MPQ5613C is an integrated power supply for automotive TFT LCD bias drivers. The device integrates a configurable, fixed-frequency boost converter (VDDP), a synchronous buck-boost inverter (VDDN), an adjustable positive charge pump output (VGH), and an adjustable, negative charge pump output (VGL) for the gate voltages. The MPQ5613C is designed to power TFT LCD panels from a regulated 3.3V or 5V supply, or the 12V battery directly.
VDDP can output a maximum 21.8V voltage, VDDN can output a minimum -16.6V negative voltage, VGH can output a maximum 43.2V voltage, and VGL can output a minimum -15.9V negative voltage.
The I2C interface and configurable power-on sequence for VDDP, VDDN, VGL, and VGH make the IC suitable for different applications. An internal soft-start (SS) function prevents input overload at start-up. The cycle-by-cycle current limit protection of SWP and SWN reduces component stress.
Rich protections are designed to guarantee safe operation of the device. Protection modes include under-voltage protection (UVP) for all outputs, cycle-by-cycle current limit protection for SWP and SWN, output current-limit protection for VDDP, input voltage (VIN) under-voltage lockout (UVLO), and over-temperature protection (OTP).
The MPQ5613C is available in a tiny QFN-28 (4mmx5mm) package. It is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- 2.7 to 12V Operating Input Voltage (VIN) Range
- 2A Current Limit for Boost Converter
- 2.5A Current Limit for Sync-Buck-Boost Inverter
- 250mΩ Power MOSFET for Boost
- 200mΩ/250mΩ Power MOSFET for Sync-Buck-Boost
- I2C Interface and 1-Time One-Time Programmable Memory for Some Registers
- Configurable Switching Frequency (fSW), Up to 3MHz
- Frequency Spread Spectrum (FSS) for Improved EMI
- Frequency Synchronization and Interleaved (180°) Buck-Boost and Boost Control for Improved EMI
- Input and Output Disconnection
- Configurable VDDP: 2.7V to 21.8V
- Configurable VDDN: -0.7V to -16.6V
- VDDP and VDDN Support Maximum 500mA
- Continuous Load Current (Limited by the Cycle-by-Cycle Current Limit Protection)
- Configurable VGH: 5V to 43.2V, with 50mA Current
- Configurable VGL: 0V to -15.9V, with 50mA Current
- High Efficiency
- Configurable Power-On/Off Sequence
- VIN Under Voltage Lockout (UVLO)
- Under-Voltage Protection (UVP) for All Outputs
- Cycle-by-Cycle Current Limit Protection for SWP and SWN
- Output Current-Limit Protection for VDDP
- Over-Temperature Protection (OTP)
- Fault Flag
- Available in AEC-Q100 Grade 1
- Available in a QFN-28 (4mmx5mm) Package
Active Part Numbers:
MPQ5613CGVE-xxxx-AEC1-Z MPQ5613CGVE-xxxx-AEC1-P MPQ5613CGVE-0000-AEC1-Z MPQ5613CGVE-0000-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
