- MPM3864L
MPM3864L
Session textval
Session Titefor popup

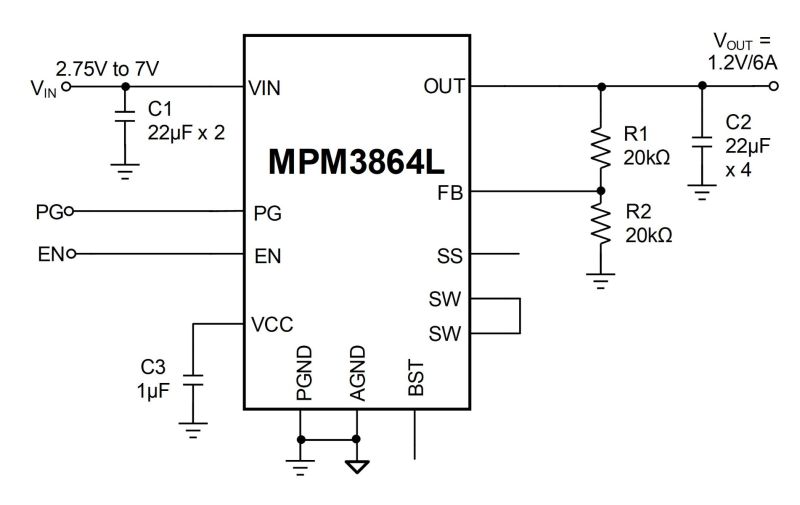

Description
The MPM3864L is a fully integrated, high-frequency, synchronous, rectified, step-down power module with an internal inductor. This device is a compact solution that achieves 6A of continuous output current (IOUT) across a wide input voltage (VIN) range, with excellent load and line regulation. The MPM3864L provides synchronous mode for higher efficiency across the full IOUT load range.
Constant-on-time (COT) control provides very fast transient response and easy loop design, as well as very tight output regulation.
Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown.
The MPM3864L requires a minimal number of readily available, standard external components. It is available in a space-saving ECLGA-19 (3mmx3mmx1.56mm) package.
-
Show more
Show less
Features & Benefits
- Wide 2.75V to 7V Operating Input Voltage (VIN) Range
- 6A of Output Current (IOUT)
- Internal Power MOSFETs
- Adjustable Output Voltage (VOUT) from 0.6V
- High-Efficiency Synchronous Mode
- Pre-Biased Start-Up
- Forced Continuous Conduction Mode (FCCM) for Low VOUT Ripple
- Fixed 1200kHz Switching Frequency (fSW)
- Configurable, External Soft-Start Time (tSS)
- Enable (EN) and Power Good (PG) for Power Sequencing
- Over-Current Protection (OCP) with Hiccup Mode
- Thermal Shutdown
- Available in an ECLGA-19 (3mmx3mmx1.56mm) Package
Active Part Numbers:
MPM3864LGPQ-Z MPM3864LGPQ-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
