MPM3809C
Session textval
Session Titefor popup
Description

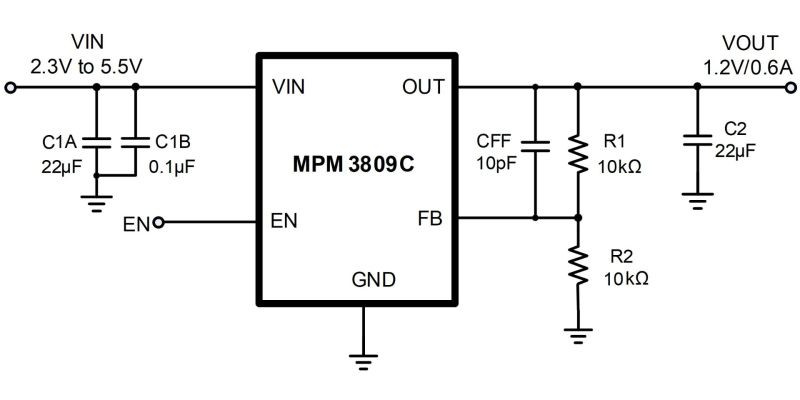

The MPM3809C is a monolithic, step-down, switch-mode converter power module with built-in, internal power MOSFETs and an inductor. The MPM3809C achieves 0.6A of continuous output current (IOUT) from a 2.3V to 5.5V input voltage (VIN) range, with excellent load and line regulation. The MPM3809C is ideal for a wide range of applications, including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other low-power systems. The output voltage (VOUT) can be regulated as low as 0.6V. Only input capacitors, output capacitors, and feedback (FB) resistors are needed to complete the design.
The constant-on-time (COT) control scheme provides fast transient response, high light-load efficiency, and easy loop stabilization. Full protection features include cycle-by-cycle current limiting and thermal shutdown.
The MPM3809C requires a minimal number of readily available, standard external components, and is available in an ultra-small ECLGA-6 (1.5mmx2mmx1mm) package.
-
Show more
Show less
Features & Benefits
- Wide 2.3V to 5.5V Operating Input Voltage (VIN) Range
- Output Voltage (VOUT) as Low as 0.6V
- 100% Duty Cycle in Dropout Mode
- 0.6A Output Current (IOUT)
- 2.4MHz Frequency
- Forced Continuous Conduction Mode (FCCM)
- Enable (EN) for Power Sequencing
- Cycle-by-Cycle Over-Current Protection (OCP)
- 0.5ms Internal Soft-Start (SS) Time (tSS)
- Output Discharge
- Short-Circuit Protection (SCP) with Hiccup Mode
- Thermal Shutdown
- Stable with Low-ESR Output Ceramic Capacitors
- Available in an ECLGA-6 (1.5mmx2mmx1mm) Package
Active Part Numbers:
MPM3809CGPH-Z MPM3809CGPH-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
