- MPQ2283-AEC1
MPQ2283-AEC1
6V, 6A, Configurable, High-Frequency, Synchronous Buck Converter with ZDPTM, AEC-Q100 Qualified
Session textval
Session Titefor popup
概要
The MPQ2283-AEC1 is a configurable, high-frequency, synchronous buck converter with integrated, internal high-side and low-side power MOSFETs (HS-FET and LS-FET, respectively). The MPQ2283-AEC1 operates from a 2.7V to 6V input voltage (VIN) range and provides up to 6A of highly efficient output current (IOUT) with fixed-frequency, zero-delay pulse-width modulation (PWM) (ZDPTM) control for optimal transient response.
The configurable 2MHz to 4MHz switching frequency (fSW) during forced continuous conduction mode (FCCM) reduces the external inductance and capacitance. Internal feedback and compensation minimizes the external component count and improves accuracy.
High power conversion efficiency across the wide load range is achieved by scaling down fSW under light-load conditions to reduce fSW and gate driving losses. Full protection features include short-circuit protection (SCP), over-current protection (OCP), input over-voltage protection (OVP), output OVP, and thermal shutdown. These protections provide reliable, fault-tolerant operation.
The digital interface features packet error checking (PEC), and the integrated multi-page one-time programmable (OTP) memory allows for a high degree of configurability.

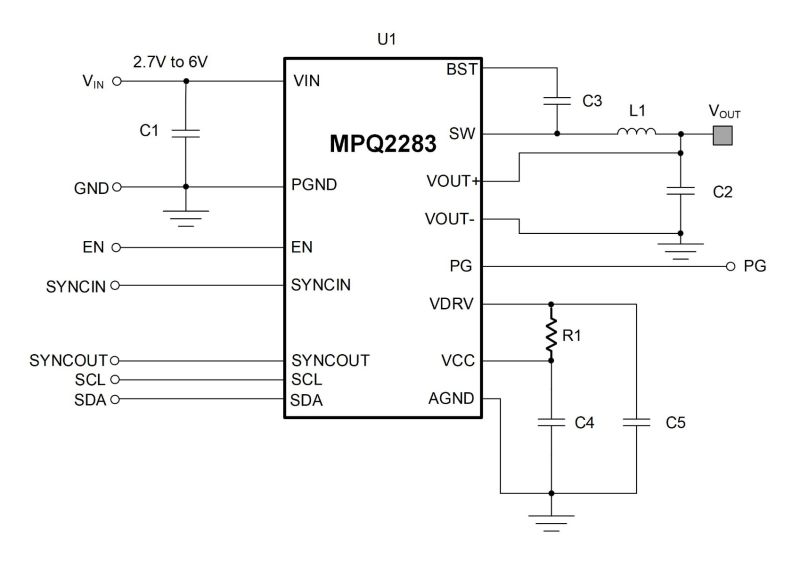

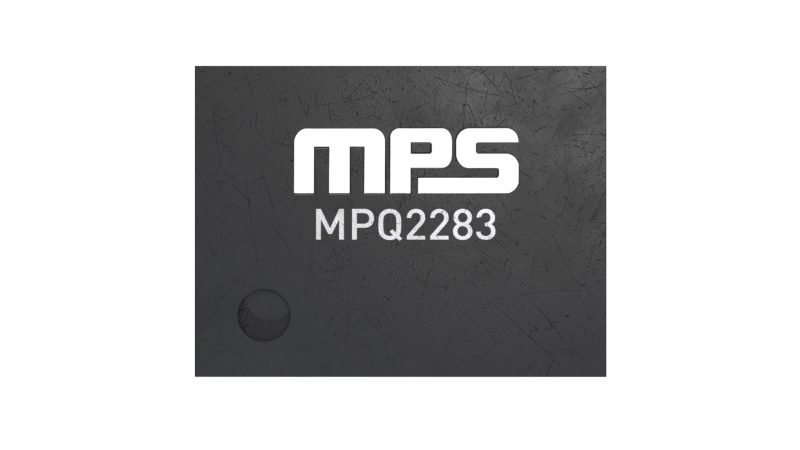

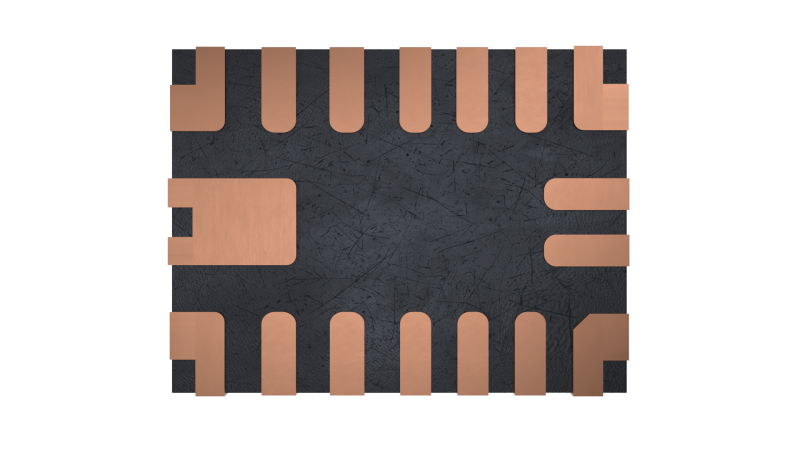

The MPQ2283-AEC1 is available in a QFN-18 (3mmx4mm) package with wettable flanks. It is available in AEC-Q100 Grade 1.
-
もっと見る
少なく表示
機能と利点
- Designed for Automotive Point-of-Load (PoL) Applications:
- 2.7V to 6V Input Voltage (VIN) Range
- 6A of Continuous Output Current (IOUT)
- 1% Output Regulation Accuracy
- Differential Output Voltage (VOUT) Sense
- Internal 6mΩ High-Side MOSFET (HS-FET) and 4mΩ Low-Side MOSFET (LS-FET)
- Configurable 2MHz to 4MHz Switching Frequency (fSW)
- Optimized for EMC/EMI Reduction:
- Synchronizable Input/Output
- Frequency Spread Spectrum (FSS)
- Flexible Application with Digital Interface:
- Digital Interface with Cyclic Redundancy Check (CRC)
- Converter On/Off
- VOUT Setting Range between 0.20625V and 3.6V
- Fault Detection
- Factory-Configurable Multi-Page One-Time Programmable (OTP) Memory
- Protections:
- Peak and Valley Current Limits
- Over-Current Protection (OCP)
- Short-Circuit Protection (SCP)
- Output Over-Voltage Protection (OVP)
- Input OVP
- Thermal Warning
- Thermal Shutdown
- Additional Features:
- Soft Start (SS) and Soft Shutdown
- Power Good (PG)
- Available in a QFN-18 (3mmx4mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
- Functional Safety System Design Capable:
- MPSafeTM Compatible – Functional Safety Supporting Document Available

入手可能な製品番号
MPQ2283GLE-xxxx-AEC1-Z MPQ2283GLE-0000-AEC1-Z MPQ2283GLE-xxxx-AEC1-P MPQ2283GLE-0000-AEC1-P
PとZで終わる部品番号は同じ部品です。PとZはリールサイズのみを示します
P&Zの意味
