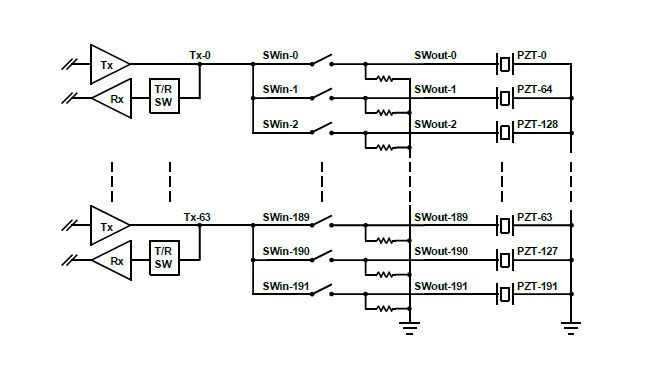

The MP4864A is a 64-channel high voltage single-pole single-throw, SPST, analog switch with integrated output bleed resistors designed for medical ultrasound imaging applications. It is designed to multiplex the transmit and receive voltages to and from multiple piezoelectric transducers, PZTs.
The output switches are controlled by a 64-bit serial shift register followed by a 64-bit data latch. A data out, Dout, pin is provided to allow for multiple devices to be cascaded together. This will help minimize the number of input/output, I/O, control lines. A logic High in the data latch will turn on the corresponding analog switch whereas a logic Low will turn it off.
The MP4864A does not require any high voltage supplies. Only two low voltage supplies are required, 3.3V and 12V. The analog switch can block or pass analog voltages up to ±90V with peak currents of up to ±2.0A. The MP4864A is available in a 10mm x 10mm BGA-144 package.
