MP2354

NOT RECOMMENDED FOR NEW DESIGNS

2A, 23V, 380KHz Asynchronous Step-Down Converter

ALTERNATIVE PART

NRFND Datasheet

The MP2392 continues to be in production for existing customers. Please consider this alternative for new designs:

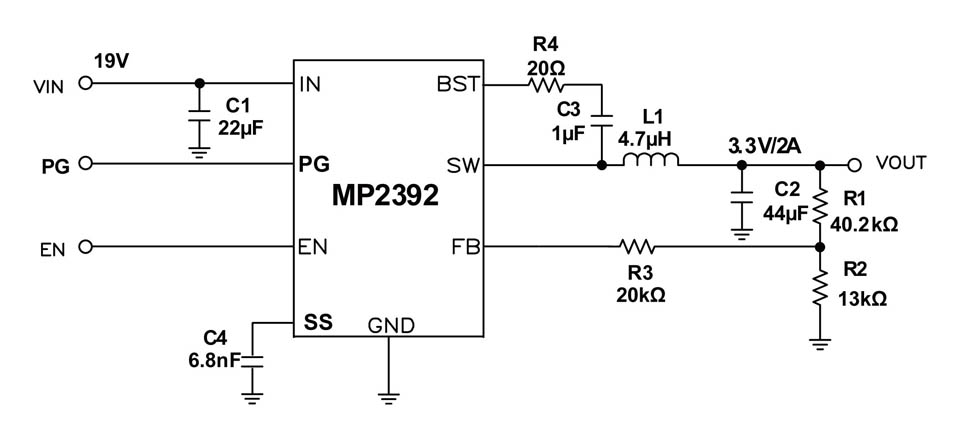

MP2392

High-Efficiency, 2A, 4.2 to 24V, 650kHz, Synchronous, DC Step-Down Converter with PG and Soft Start In SOT583

Features & Benefits

Wide 4.2V to 24V Operating Input Range
110mΩ/45mΩ Low R_DS(ON)Internal Power MOSFETs
200µA Low I_Q
High-Efficiency Synchronous Mode Operation
Power-Save Mode (PSM) at Light Load
Fast Load Transient Response
650kHz Switching Frequency
Programmable Soft-Start Time
Power Good (PG) Indication
Output Over-Voltage Protection (OVP)
Over-Current Protection (OCP) and Hiccup
Pre-Bias Start-Up
Thermal Shutdown
Available in a SOT583 (1.6mmx2.1mm) Package

… and many more!

概要

The MP2354 is a monolithic step down switch mode converter with a built in internal power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cyclebycycle current limiting and thermal shutdown. In shutdown mode the regulator draws 20μA of supply current.
