MPQ3621-AEC1
48-Channel, Max 50mA/Channel Current-Source LED Driver with Independent Analog and PWM Dimming, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description

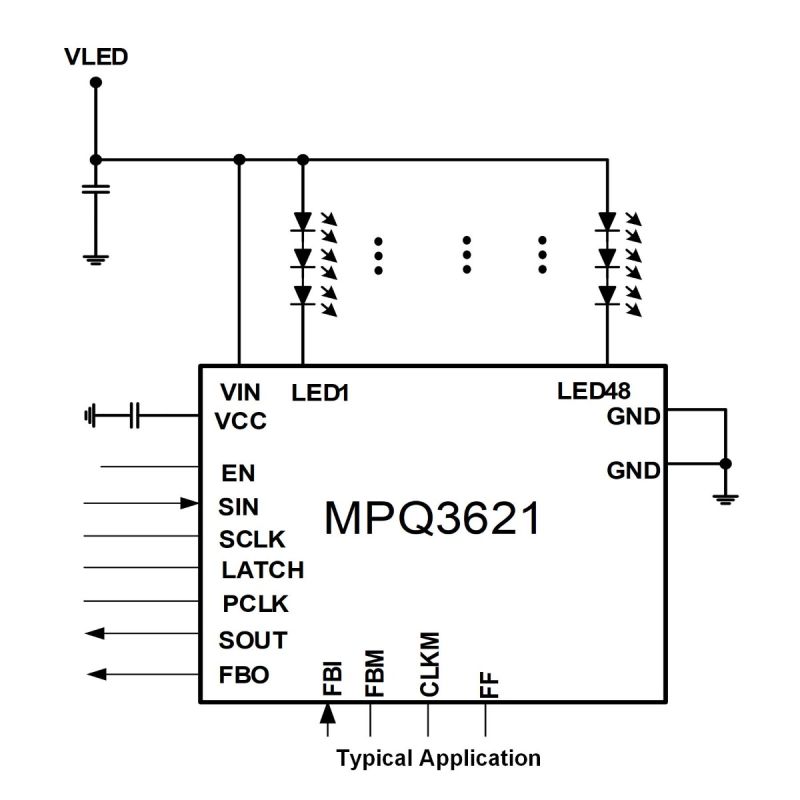

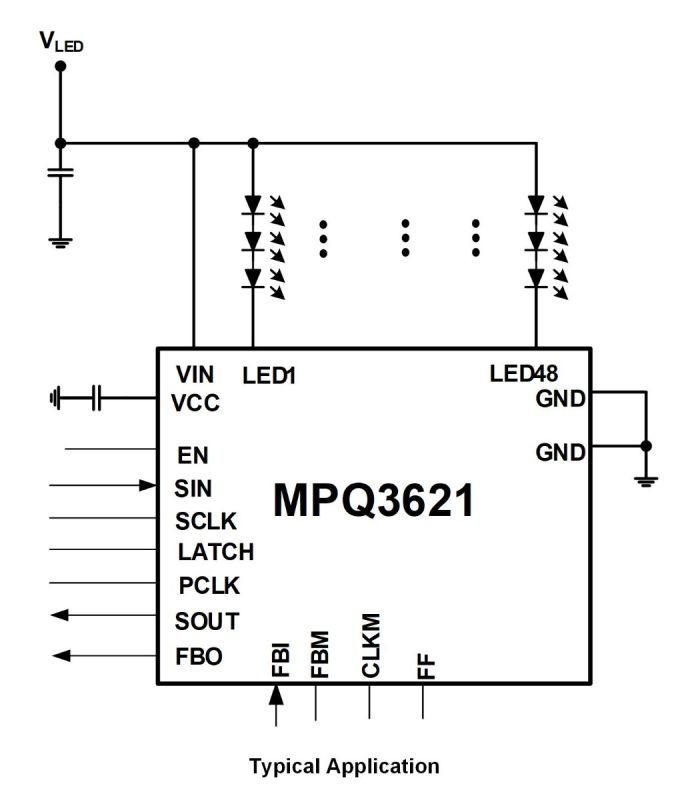

The MPQ3621-AEC1 is a 48-channel LED driver with a 12V voltage rating and maximum 50mA current sources. It is designed to drive LED arrays for local dimming backlighting in automotive LCD panels.
The device employs low headroom to regulate the LED current (ILEDx, where x = 1–48). The adaptive voltage feedback function optimizes the LED voltage (VLEDx, where x = 1–48), which achieves higher system efficiency.
The MPQ3621-AEC1 supports independent 16-bit pulse-width modulation (PWM) and 7-bit analog dimming for each channel via the serial interface. The configurable internal registers enable reliability and flexibility in application. The 25MHz serial interface clock guarantees a high data transfer rate for multiple devices operating in a daisy-chain application.
Robust protections are included to guarantee safe device operation. Protection modes include LED open protection, LED short protection, and over-temperature protection (OTP). All fault statuses can be read via the serial interface.

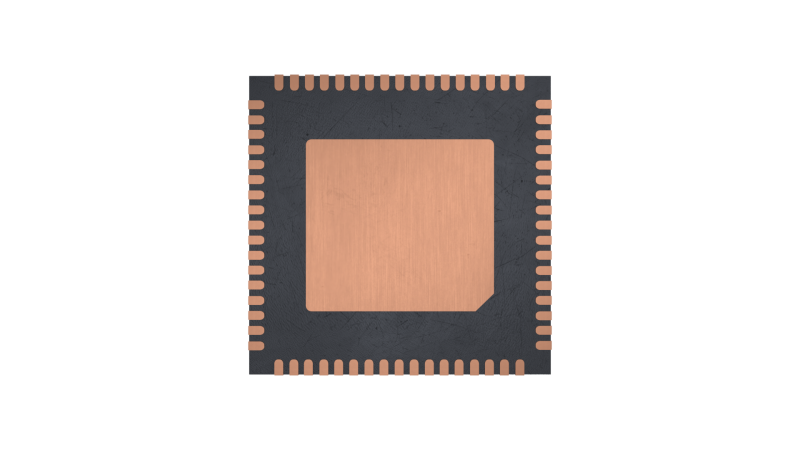

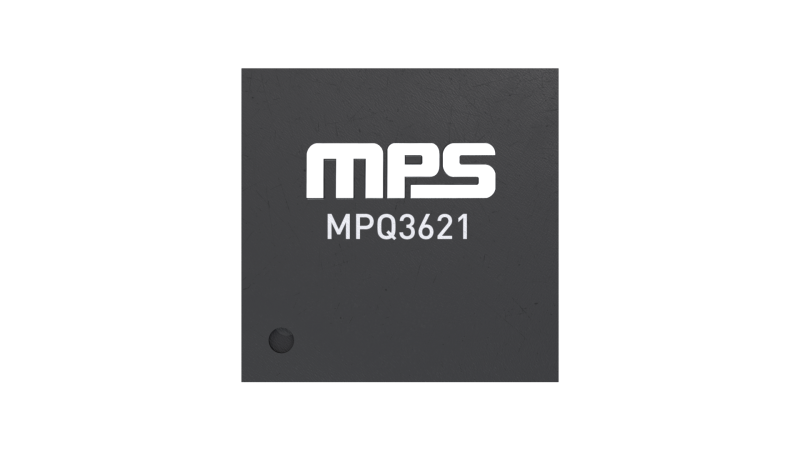

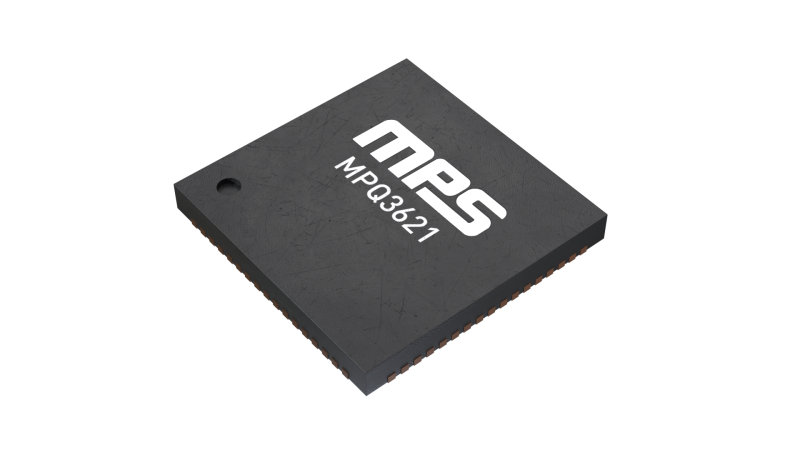

The MPQ3621-AEC1 is available in a QFN-68 (8mmx8mm) package, and is available in AEC-Q100 Grade 0.
-
Show more
Show less
Features & Benefits
- Internal 48 Channels with Max 50mA per Channel
- 12V Voltage Rating
- Low Dropout Voltage (250mV at 30mA)
- Independent 16-Bit Pulse-Width Modulation (PWM) Dimming
- Independent 7-Bit Analog Dimming
- Adaptive Voltage Feedback Function
- 25MHz Serial Interface

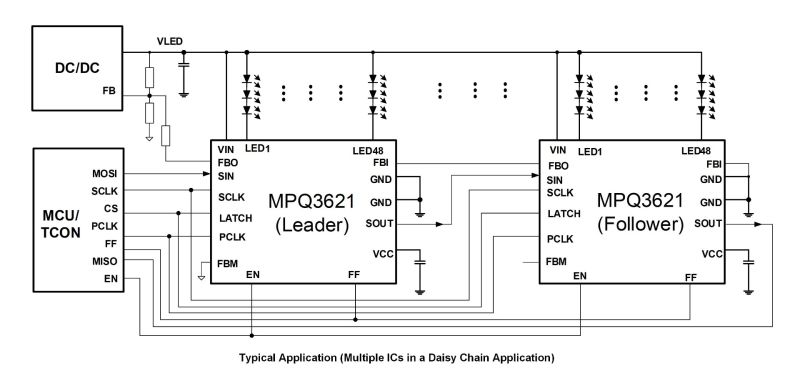

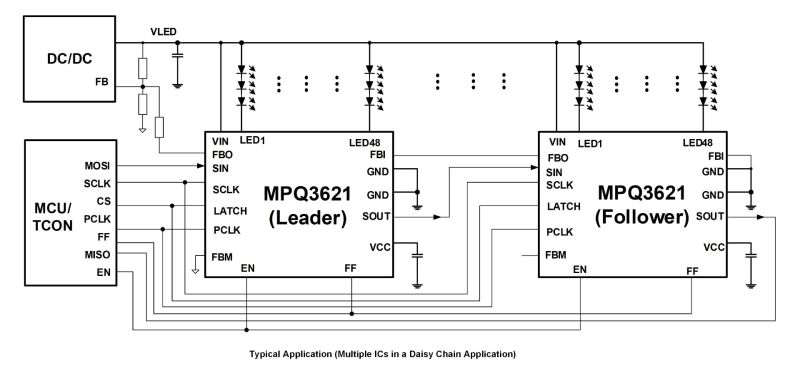

- Supports Daisy-Chaining for Multiple ICs
- Improve EMI with LED Current (ILEDx, where x = 1–48) Slew Rate and Phase Shift
- LED Short Protection
- LED Open Protection
- Fault Status Indicator Register
- Available in a QFN-68 (8mmx8mm) Package
- Available in AEC-Q100 Grade 0
Active Part Numbers:
MPQ3621GQQE-AEC1-Z MPQ3621GQQE-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
