MP9931
Session textval
Session Titefor popup
Description

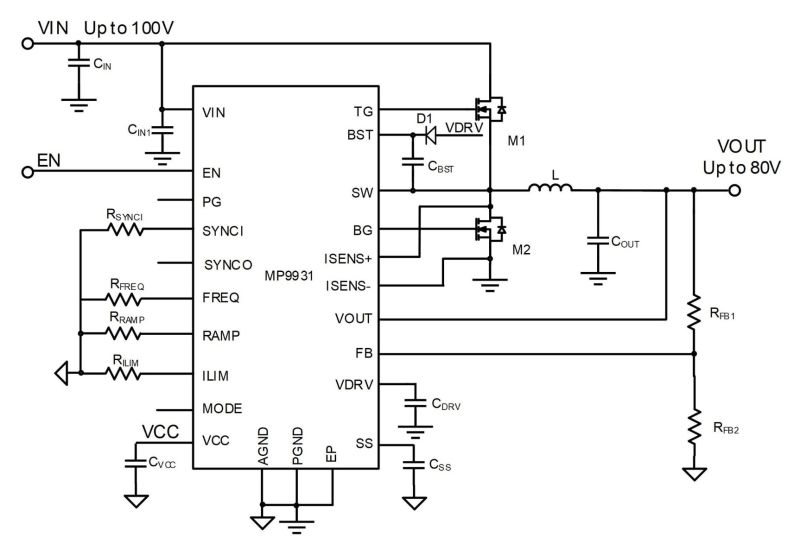

The MP9931 is a high-voltage, synchronous step-down switching regulator controller that can directly step down voltages from up to 100V. It is capable of driving dual N-channel MOSFETs.
The MP9931’s adaptive constant-on-time (COT) control architecture provides fast transient response and eases loop stabilization. The DC auto-tune loop provides good load and line regulation. Pulse-skip mode (PSM) and ultrasonic mode (USM) enable asynchronous operation to optimize light-load efficiency.
The MP9931’s operating frequency can be configured via an external resistor or synchronized to an external clock for noise-sensitive applications. Fault protections include precision input over-voltage protection (OVP), output over-current protection (OCP), and thermal shutdown.
The MP9931 is available in a QFN-23 (4mmx4mm) package.
-
Show more
Show less
Features & Benefits
- Basic Functions:
- Lossless On Resistance (RDS(ON)) or Shunt Current Sense
- Constant-On-Time (COT) Control Offers Fast Load Transient Response
- 7V to 100V Input Voltage (VIN) Range
- Adjustable Output Voltage (VOUT) from 0.8V to 80V
- 450µA Quiescent Current (IQ)
- 4µA Enable (EN) Shutdown Current
- 60ns Minimum On Time (tON_MIN)
- Low-Dropout (LDO) Operation: Maximum Duty Cycle Up to 99%
- Ultrasonic Mode (USM), Pulse-Skip Mode (PSM), or Forced Continuous Conduction Mode (FCCM) Selectable via the MODE Pin
- Selectable Frequency via the FREQ Resistor: 100kHz to 1000kHz
- Power Good (PG) Indicator
- Selectable Ramp via the RAMP Pin
- Selectable Current Limit via the ILIM Resistor
- VDRV Pin Voltage (VDRV) Power from the Output Voltage (VOUT) when VOUT > 8.4V
- External VDRV: Bias VDRV with an External Voltage Source Exceeding the Internal VDRV
- Drive Ability:
- 10V N-Channel MOSFET Gate Driver with 4.2A Source and 5.2A Sink Capability
- SYNCI/SYNCO:
- SYNCI with External Clock
- 180° Out-of-Phase SYNCO
Active Part Numbers:
MP9931GR-Z MP9931GR-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
