- MP3713
MP3713
Session textval
Session Titefor popup

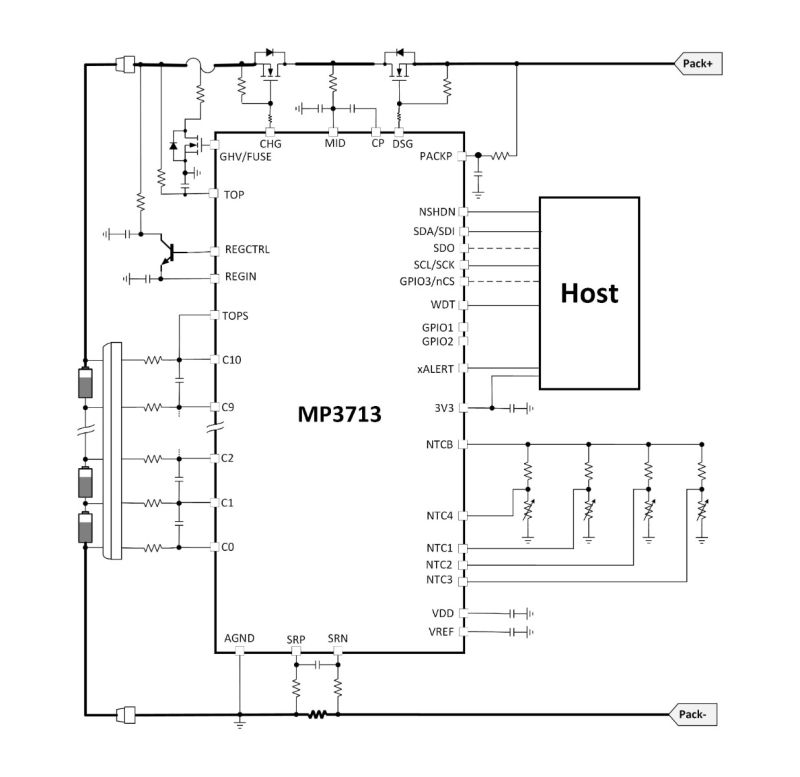

Description
The MP3713 is a robust battery management device, providing a complete analog front-end (AFE) monitoring and protection solution. The device can support I2C or serial peripheral interface (SPI) communication. It supports connections for 3-cell to 10-cell series battery packs, with an absolute voltage exceeding 80V on particular pins.
The MP3713 integrates two separate analog-to-digital converters (ADCs). The first ADC measures each channel’s differential cell voltages (up to 10 channels), die temperature, and 7-channel temperatures via external negative temperature coefficient (NTC) thermistors. The second ADC measures the charge/discharge current via an external current-sense resistor. The dual ADC architecture enables synchronous voltage and current measurements for cell and pack impedance monitoring.
When paired with an MPF4279x fuel gauge, the MP3713 can achieve state-of-charge (SOC) accuracy to within 2%.
The MP3713 includes high-side MOSFET (HS-FET) drivers for charge and discharge independent control. The discharge (DSG) MOSFET driver includes a configurable-scaled current soft start (SS) that provides a controlled turn-on, eliminating the need for an external pre-charge circuit. The MOSFET drivers also incorporate over-current protection (OCP), short-circuit protection (SCP), battery under-voltage protection (UVP), battery over-voltage protection (OVP), and high-/low-temperature protection. All of these protections have configurable thresholds.
The MP3713 integrates the fuse driver for severe under-voltage protection (SUVP), severe over-voltage protection (SOVP), MOSFET damage protection, and abundant self-diagnostics protection.
Internal passive balancing MOSFETs can be used to equalize mismatched cells, supporting up to 58mA. There is also an option to drive external balancing transistors (MOSFET or BJT).
The MP3713 is available in a TQFP-48 (7mmx7mm) package.
-
Show more
Show less
Features & Benefits
- Incorporates Dual Analog-to-Digital Converter (ADC) Architecture:
- <±2% State-of-Charge (SOC) Error with the MPF4279x Fuel Gauge
- Cell Voltage Measurement Error <5mV
- Current/Coulomb Counter Error <±0.3%
- Strictly Synchronized Current/Voltage Measurement for Impedance Sensing
- Standalone Mode:
- Analog Front-End (AFE) Can Work in Standalone Mode without the Microcontroller Unit (MCU)
- Includes High-Side N-Channel MOSFET Drivers for Charge and Discharge Control:
- Supports Soft Start (SS) to Eliminate Pre-Charge Circuit
- Drives Up to 100A DC with Parallel N-Channel MOSFETs
- Configurable MOSFET Protections with Recovery Option:
- Charge/Discharge Over-Current Protection (OCP) and Short-Circuit Protection (SCP)
- Cell Under-Voltage Protection (UVP) and Over-Voltage Protection (OVP)
- Pack UVP and OVP
- Cell Low-/High-Temperature Protection
- Die High-Temperature Protection
- Configurable Fuse Protections:
- Dead Cell and Severe Over-Voltage Protection (SOVP)
- Pack Severe Under-Voltage Protection (SUVP) and SOVP
- MOSFET Damage Protection
- Self-Diagnostics Protection
- Passive Cell Balancing Up to 58mA per Cell:
- Can Drive External Balancing Transistors
- Automatic or Manual Control
- Additional Features:
- Intelligent Open-Wire Detection
- Integrated 3.3V and 5V Low-Dropout (LDO)
- Reduced Current Standby Mode
- Load and Charge Plug-In and Removal Detection
- High-Voltage and Low-Voltage GPIOs
- Configurable for Low-Side MOSFET (LS-FET) Control
- Dedicated Thermistor Inputs
- Persistent Dead Battery Flag
- Lockable Configurable Memory for Protection Configuration
- I2C Interface or Serial Peripheral Interface (SPI) with 8-Bit Cyclic Redundancy Check (CRC)
- Random Cell Connection Tolerant
- Available in a TQFP-48 (7mmx7mm) Package
Active Part Numbers:
MP3713DFP-xxxx-T MP3713DFP-xxxx-Z MP3713DFP-xxxx-P MP3713DFP-0000-T MP3713DFP-0000-Z MP3713DFP-0000-P MP3713DFP-0001-T MP3713DFP-0001-Z MP3713DFP-0001-P MP3713DFP-0002-T MP3713DFP-0002-Z MP3713DFP-0002-P MP3713DFP-0003-T MP3713DFP-0003-Z MP3713DFP-0003-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
