MP6603
Active Part Numbers:
MP6603GV-Z MP6603GV-P
Meaning of P & Z
Related Products

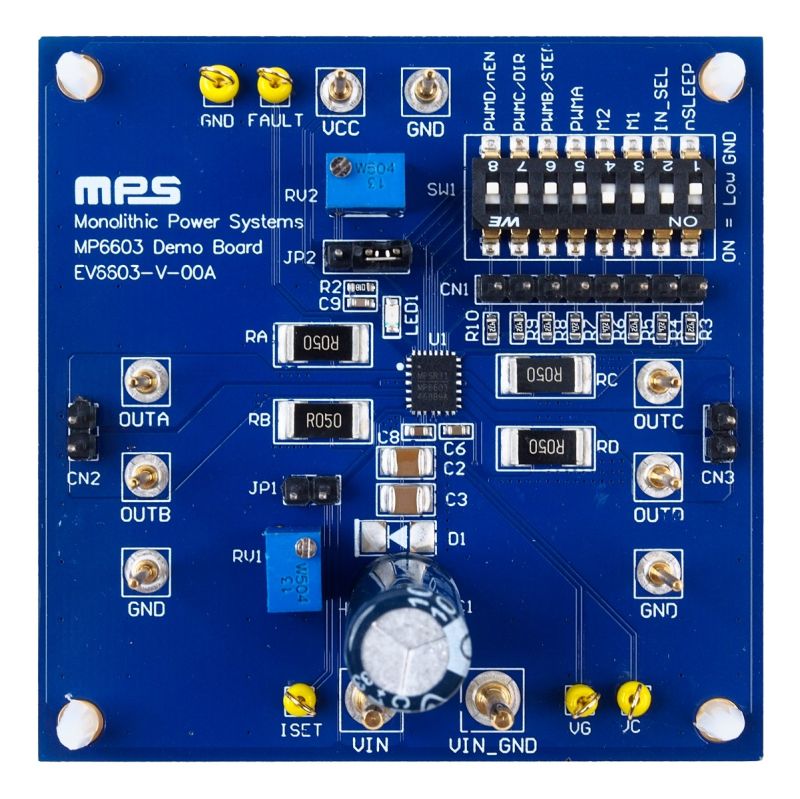

The EV6603-V-00A is an evaluation board designed to demonstrate the capabilities of the MP6603, a dual full-bridge motor driver with a built-in, microstepping translator.

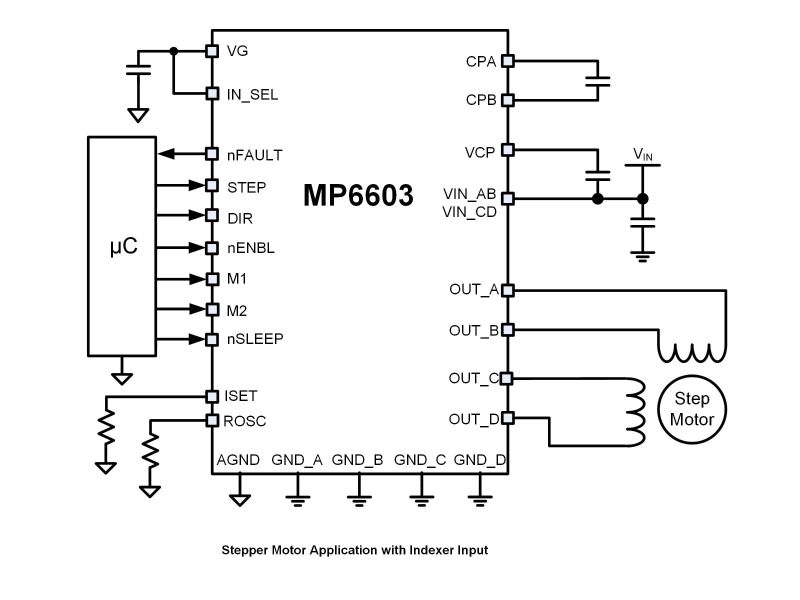

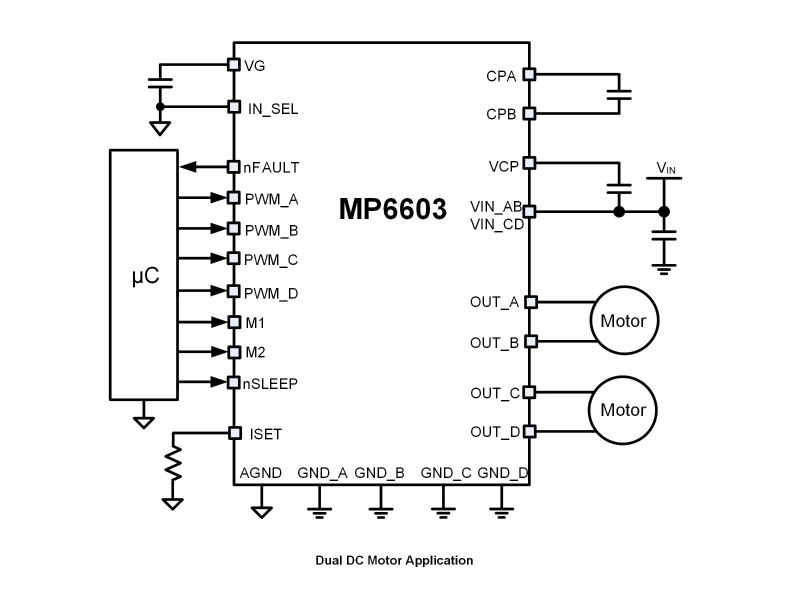

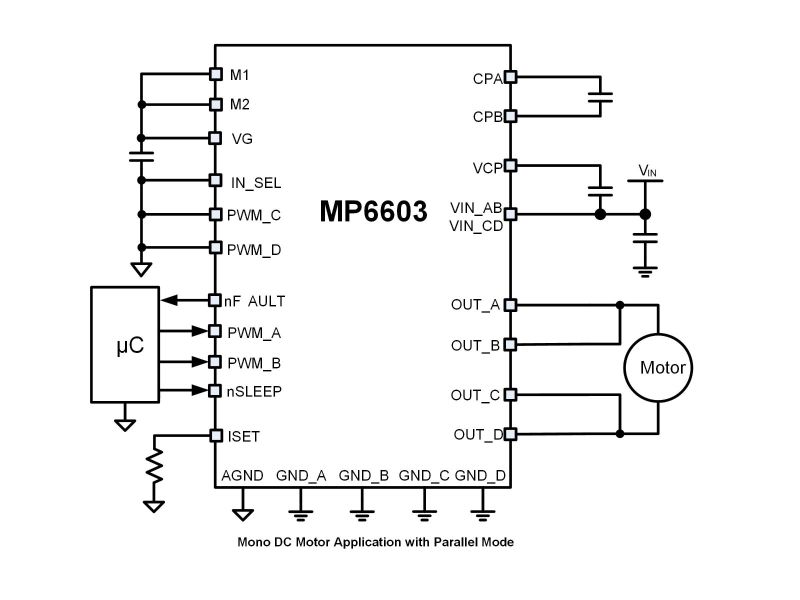

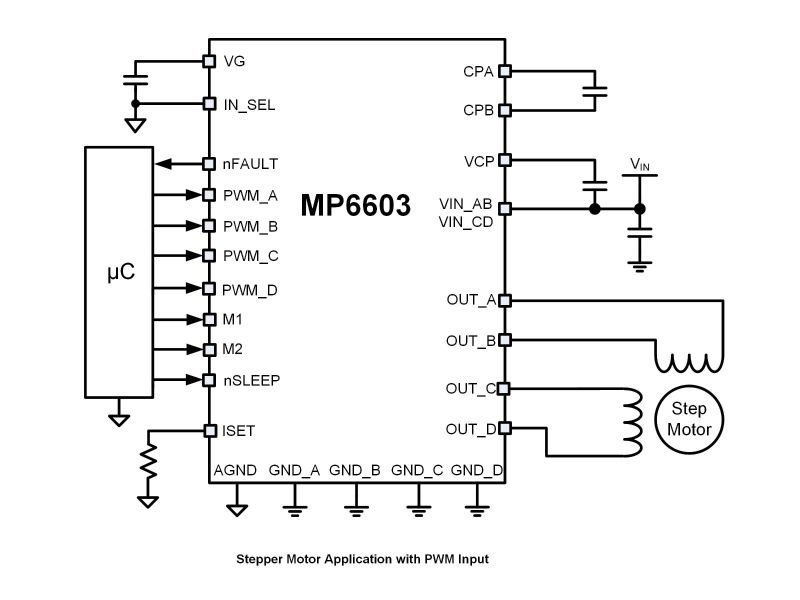

The MP6603 operates from a supply voltage of up to 55V, and it can deliver a motor current up to 5A. It can drive one or two DC motors or a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes by setting M2 and M1. The input control signals for the MP6603 are applied through the CN1 connector or generated on the board.
The MP6603 is available in a QFN-25 (4mmx5mm) package. It is recommended to read the MP6603 datasheet prior to making any changes to the evaluation board.
