MP6613

MP6613

4.5V to 45V, 5A, Simple H-Bridge Driver

Datasheet

Description

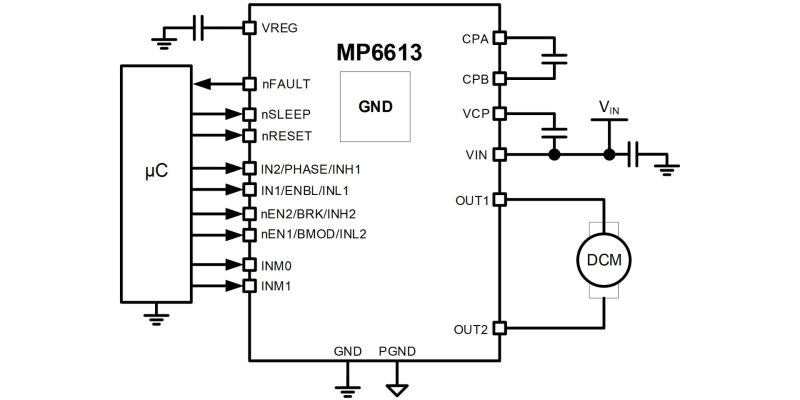

The MP6613 is an H-bridge motor driver IC designed to drive stepper motors, brushed DC motors, and other loads.

The MP6613 operates across a 4.5V to 45V input voltage (V_IN) range. It can deliver a motor current up to 5A, depending on the ambient temperature (T_A) and PCB layout.

Internal safety and diagnostic features include over-current protection (OCP), input over-voltage protection (OVP), input under-voltage protection (UVP), and thermal shutdown.

The MP6613 has several control modes that are configurable via pins. The MP6613 is available in QFN-28 (4mmx5mm) and TSSOP-28EP packages.

Features & Benefits

4.5V to 45V Operating Input Voltage (V_IN) Range
5A Maximum Output Current (I_{OUT_MAX})
Single H-Bridge Driver
Low 75mΩ On Resistance (R_DS(ON)) per MOSFET
Protection Functions Include:
- Over-Current Protection (OCP)
- Over-Voltage Protection (OVP)
- Under-Voltage Protection (UVP)
- Over-Temperature (OT) Shutdown
- Fault Indication Output

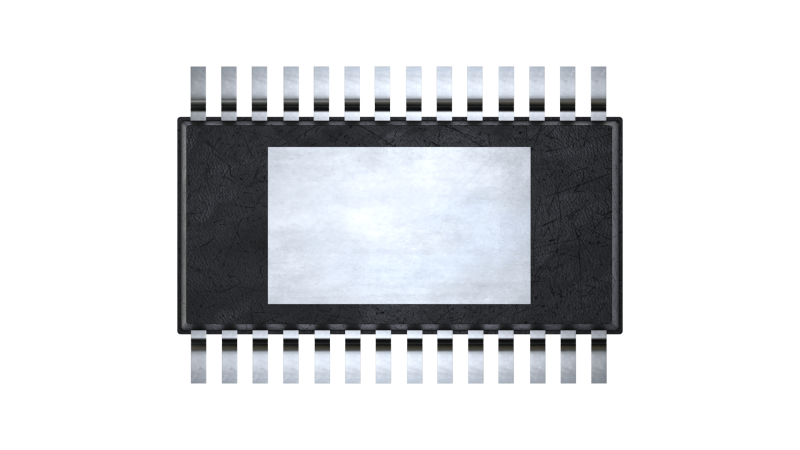

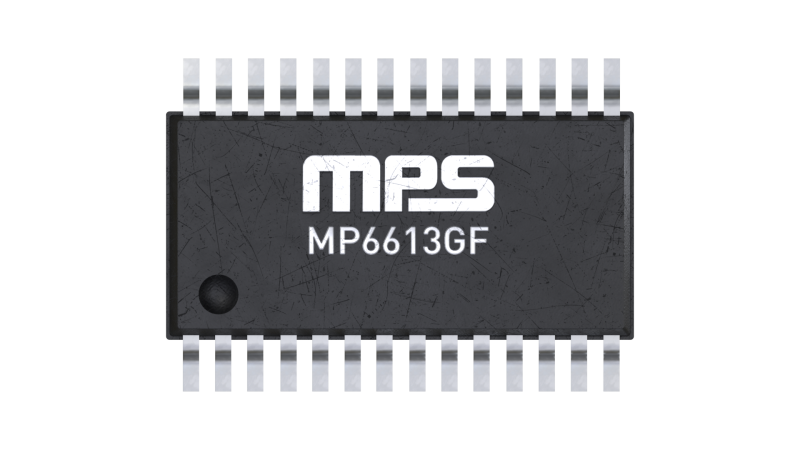

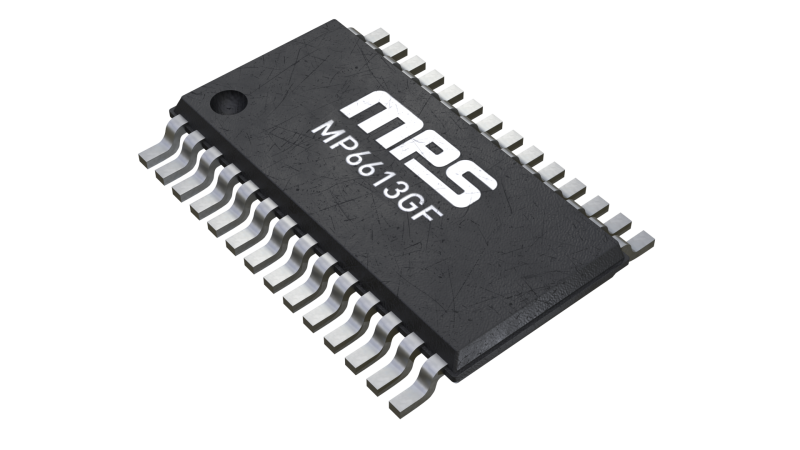

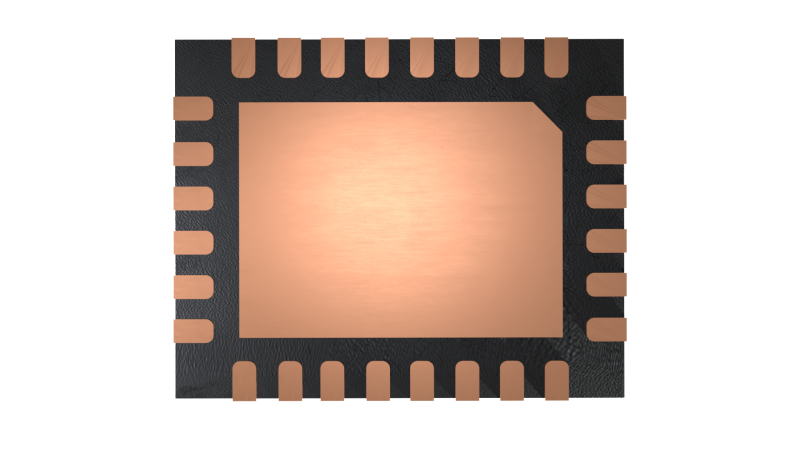

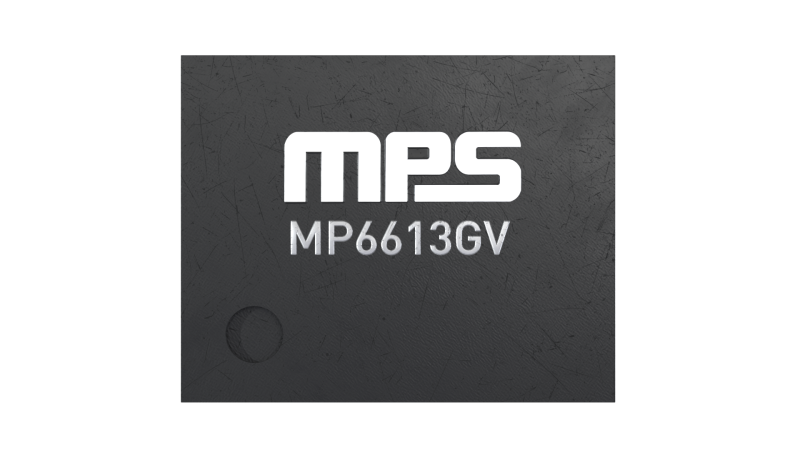

Available in QFN-28 (4mmx5mm) and TSSOP-28EP Packages

Active Part Numbers:

MP6613GV-Z MP6613GV-P MP6613GF-Z MP6613GF-P

Meaning of P & Z

Related Products

EV6613-V-00A 45V, 5A, Simple H-Bridge Driver Evaluation Board

The EV6613-V-00A evaluation board is designed to demonstrate the capabilities of the MP6613, a simple H-bridge motor driver. It can be used to drive brushed DC motors or other loads.

The MP6613 operates from an input voltage (V_IN) up to 45V, and can deliver load currents up to 5A.

The MP6613 supports several control modes, which can be configured via the pins. The input control signals are generated on the board, or they come from an external controller via the connector on the board.

The MP6613 is available in a QFN-28 (4mmx5mm) package. It is recommended to read the MP6613 datasheet prior to making any changes to the EV6613-V-00A.
