4-Channel Low-Side MOSFET Driver IC with Parallel Interface

Datasheet

Description

The MP6605D is a 4-channel low-side MOSFET (LS-FET) driver IC that integrates four LS-FETs and high-side (HS) clamp diodes to drive inductive loads. It is well-suited for unipolar stepper motor and solenoid driver applications.

The device can achieve up to 1.5A of output current (I_OUT) across a wide 4.5V to 60V input voltage (V_IN) range. The maximum voltage of the motor driver output pins is 60V.

Full protection features include over-current protection (OCP), under-voltage lockout (UVLO) protection, and thermal shutdown.

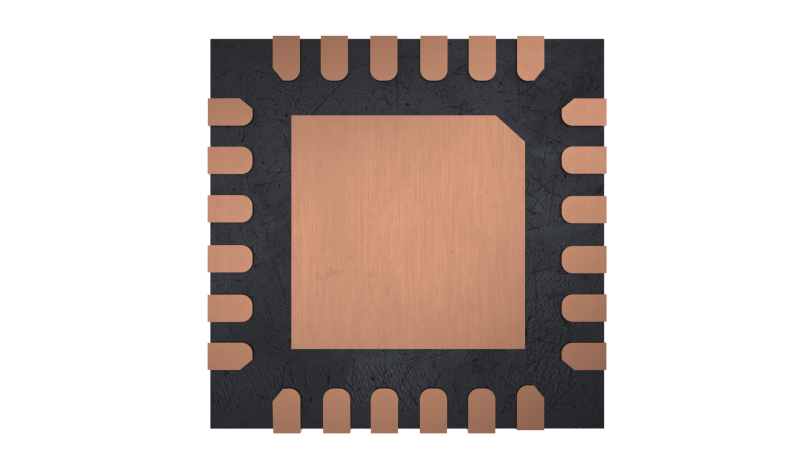

The MP6605D is available in a QFN-24 (4mmx4mm) package.

Features & Benefits

Wide 4.5V to 60V Input Voltage (V_IN) Range
60V Maximum Winding Clamp Voltage (V_CLAMP)
Four Low-Side MOSFETs (LS-FETs) and Four High-Side (HS) Clamp Diodes
350mΩ MOSFET On Resistance
1.5A Maximum Output Current (I_OUT) while One LS-FET Is On, or 700mA Maximum I_OUT while Four LS-FETs Are On
Over-Current Protection (OCP)
Under-Voltage Lockout (UVLO) Protection
Thermal Shutdown
Fault Indication Output
Control Power Supply Not Required
Simple Logic Interface
3.3V and 5V Compatible Logic Supply
Available in a QFN-24 (4mmx4mm) Package

Active Part Numbers:

MP6605DGR-Z MP6605DGR-P

Meaning of P & Z

Related Products

EV6605D-R-00A 4-Channel Low-Side Driver with Parallel Interface Evaluation Board

The EV6605D-R-00A is an evaluation board designed to demonstrate the capabilities of the MP6605D, a 4-channel low-side MOSFET (LS-FET) driver with a parallel interface. It integrates LS-FETs and high-side (HS) clamp diodes to drive inductive loads.

The MP6605D operates from a supply voltage of up to 60V, and can deliver up to 1.5A of output current (I_OUT). The MP6605D has a simple logic interface, and supports a 3.3V and 5V logic supply. Internal safety features include over-current protection (OCP), under-voltage lockout (UVLO) protection, and over-temperature protection (OTP).

The MP6605D is well-suited for unipolar stepper motor and solenoid driver applications. The MP6605D is available in a QFN-24 (4mmx4mm) package.
