OrderMP6604C
Active Part Numbers:
MP6604CGV-Z MP6604CGV-P MP6604CGF-Z MP6604CGF-P
Meaning of P & Z
Related Products
EV6604C-V-00A 45V, 2.5A, Simple Dual H-Bridge Driver (HS/LS) Evaluation Board

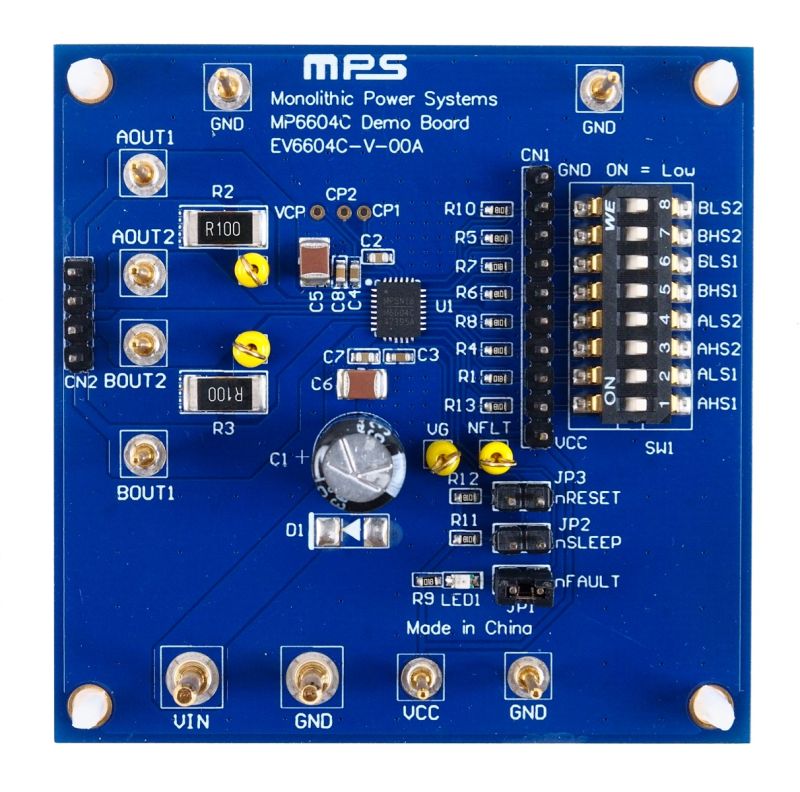

The EV6604C-V-00A is an evaluation board designed to demonstrate the capabilities of the MP6604C, a dual H-bridge motor driver. It can be used to drive stepper motors, DC brushed motors, or other loads.

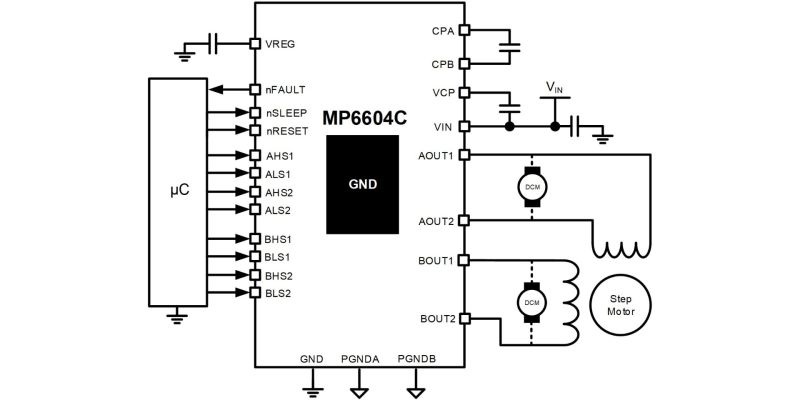

The MP6604C operates from an input voltage (VIN) of up to 45V, and can deliver load currents up to 2.5A per H-bridge. The MP6604C has separate high-side (HS) and low-side (LS) input pins for each output pin. The input control signals are generated on the board or come from an external controller via the connector on the board.
The MP6604CGV is available in a QFN-28 (4mmx5mm) package. It is recommended to read the MP6604C datasheet before making any changes to the EV6604C-V-00A.
45V, 2.5A, Simple Dual H-Bridge Driver (HS/LS) in a TSSOP-28EP Package Evaluation Board
Simple, Dual H-Bridge Motor Driver with Separate Input and Enable Pins
4.5V to 45V, 2.5A, Simple, Dual H-Bridge Driver (PHASE/EN)
