MP6508A
Active Part Numbers:
MP6508AGQ-Z MP6508AGQ-P
Meaning of P & Z
Related Products

EV6508A-Q-00A 18V, 1.2A, Bipolar Stepper Motor Driver Evaluation Board
The EV6508A-Q-00A is an evaluation board designed to demonstrate the capabilities of the MP6508A, a bipolar stepper motor driver with dual, built-in full bridges consisting of N-channel power MOSFETs.
The MP6508A operates across a 2.7V to 18V supply voltage range, and can deliver up to 1.2A of output current (IOUT) per channel. The internal safety features include over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown.
The MP6508A’s input control signals are applied through the connector or generated on the board. The EV6508A-Q-00A can drive a bipolar stepper motor in full-step and half-step modes. The board can also drive two independent DC motors.

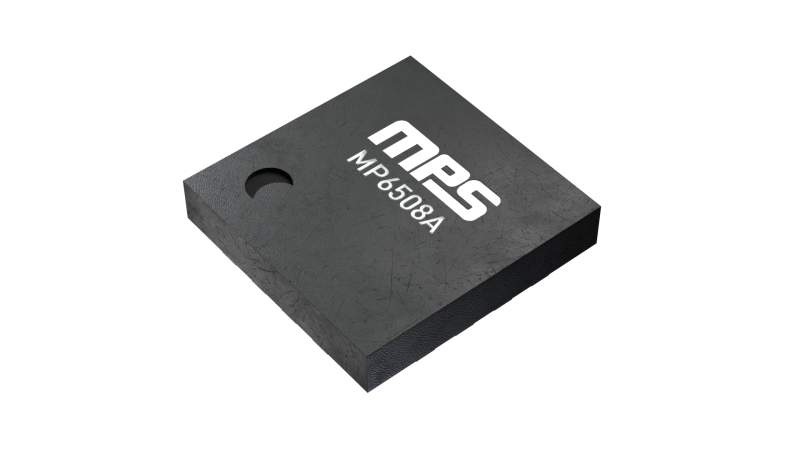

The MP6508A is available in a QFN-16 (3mmx3mm) package. It is recommended to read the MP6508A datasheet prior to making any changes to the EV6508A-Q-00A.
