OrderMP6604A
Active Part Numbers:
MP6604AGV-Z MP6604AGV-P MP6604AGF-Z MP6604AGF-P
Meaning of P & Z
Related Products
EV6604A-V-00A 45V, 2.5A, Simple Dual H-Bridge Driver (IN/EN) Evaluation Board
The EV6604A-V-00A is an evaluation board designed to demonstrate the capabilities of the MP6604A, a dual H-bridge motor driver. It can be used to drive stepper motors, DC brushed motors, or other loads.
The MP6604A operates from an input voltage (VIN) of up to 45V, and can deliver load currents up to 2.5A per H-bridge. The MP6604A has separate IN and EN pins for each output pin. The input control signals are generated on the board, or come from an external controller via the connector on the board.

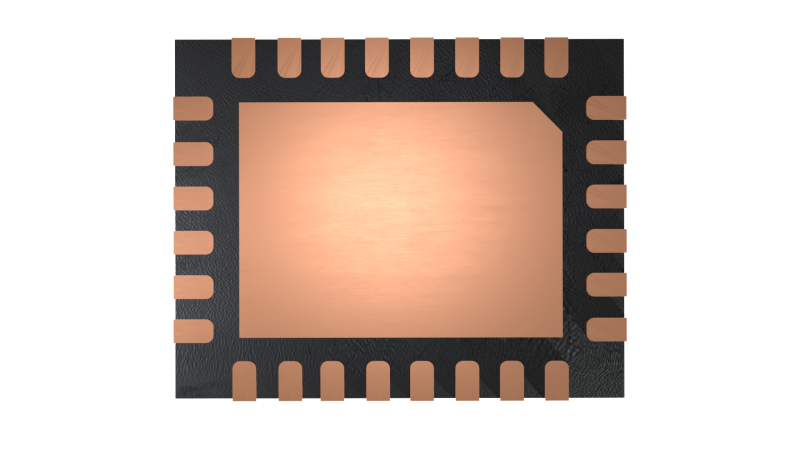

The MP6604AGV is available in a QFN-28 (4mmx5mm) package. It is recommended to read the MP6604A datasheet before making any changes to the EV6604A-V-00A.

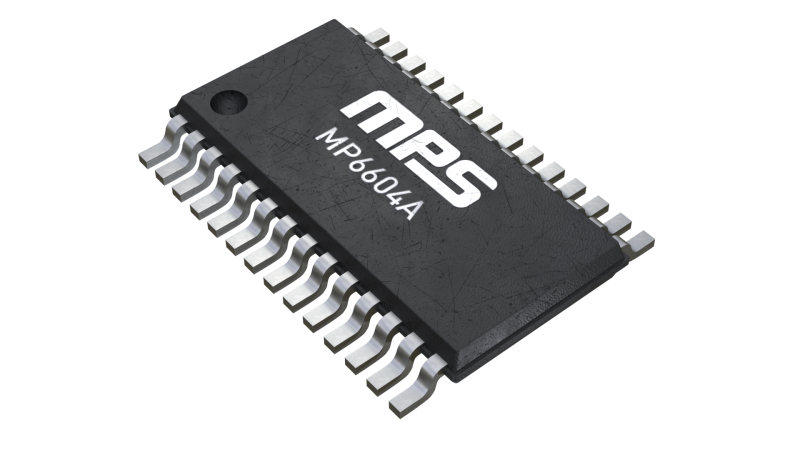

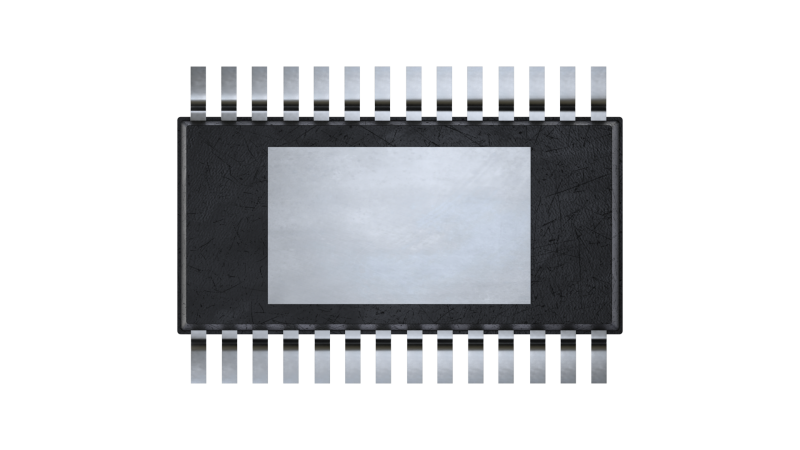

45V, 2.5A, Simple Dual H-Bridge Driver (IN/EN) in a TSSOP-28EP Package Evaluation Board
4.5V to 45V, 2.5A, Simple, Dual H-Bridge Driver (PHASE/EN)
4.5V to 45V, 2.5A, Simple Dual H-Bridge Driver (HS/LS)
