MP6500A

New

35V, 2.5A Stepper Motor Driver



Talk to an Engineer or get a Quote

Product Description

The MP6500A is a stepper motor driver with a built-in translator and current regulation.  Current sensing is internal and requires no external sense resistors. High integration and a small package size make the MP6500A a space-saving and cost-effective solution for bipolar stepper motor drives.

The MP6500A operates from a supply voltage of up to 35V, and can deliver motor currents up to 2.5A (depending on PCB design and thermal conditions). The MP6500A can operate a bipolar stepper motor in full-, half-, quarter-, or eighth-step modes. Internal safety features include over-current protection (OCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), and thermal shutdown.

The MP6500A is identical to the MP6500, except the current setting is accomplished with a voltage input instead of a resistor to ground.

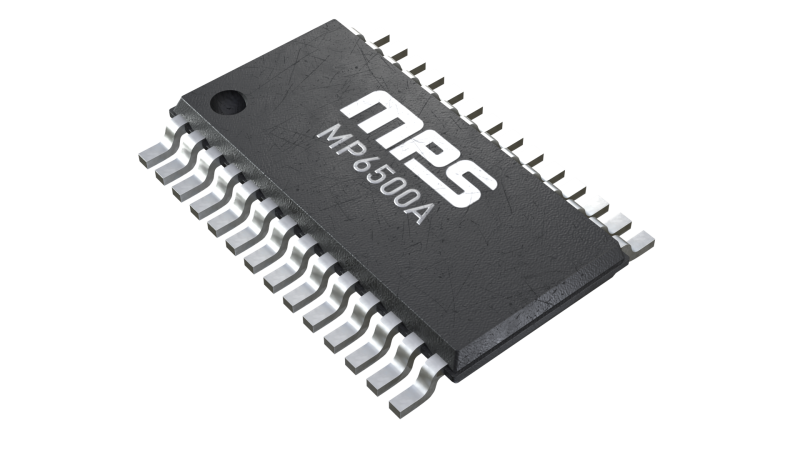

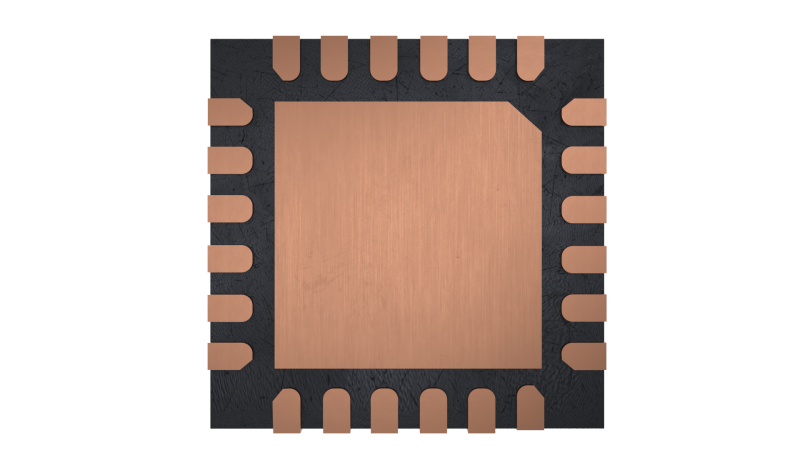

The MP6500A is available in a TSSOP-28 EP package.

Product Features

  • Wide 4.5V to 35V Input Voltage Range
  • Two Internal Full-Bridge Drivers
  • Internal Current Sensing and Regulation
  • Low On Resistance (HS: 195mΩ, LS: 170mΩ)
  • No Control Power Supply Required
  • Simple Logic Interface
  • 3.3V and 5V Compatible Logic Supply
  • Step Modes from Full-Step to Eighth-Step
  • 2.5A Output Current
  • Automatic Current Decay
  • Over-Current Protection (OCP)
  • Input Over-Voltage Protection (OVP)
  • Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection
  • Fault Indication Output
  • Available in a Thermally Enhanced TSSOP-28 Package

Parametrics

  • Control InterfaceIndexer
  • Step Mode1, 1/2, 1/4, 1/8
  • GradeCatalog
  • PackageTSSOP28 EP
  • Iout (max) (A)2.5
  • Vin (max) (V)35
  • Vin (min) (V)4.5
