MP2333
Session textval
Session Titefor popup

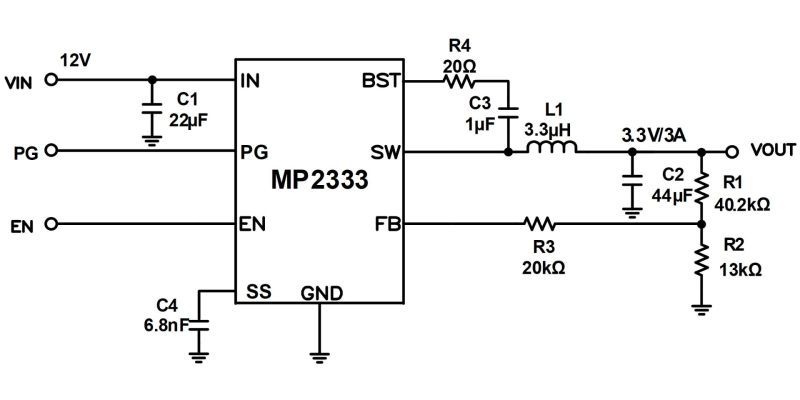

Description
The MP2333 is a fully integrated, high-frequency, synchronous, rectified, step-down switch-mode converter with internal power MOSFETs. The MP2333 offers a compact solution that achieves 3A of continuous output current (IOUT) across a wide input range, with excellent load and line regulation.
The MP2333 uses synchronous mode operation for higher efficiency across the IOUT load range. Constant-on-time (COT) control operation provides fast transient response, easy loop design, and tight output regulation.
Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.
The MP2333 requires a minimal number of readily available, standard, external components, and is available in a space-saving SOT583 (1.6mmx2.1mm) package.
-
Show more
Show less
Features & Benefits
- Wide 4.2V to 18V Operating Input Voltage (VIN) Range
- 75mΩ and 40mΩ Low On Resistance (RDS(ON)) Internal Power MOSFETs
- 200μA Low Quiescent Current (IQ)
- High-Efficiency Synchronous Mode Operation
- Power-Save Mode (PSM) under Light Loads
- Fast Load Transient Response
- 650kHz Switching Frequency (fSW)
- Configurable Soft-Start Time (tSS)
- Power Good (PG) Indication
- Over-Current Protection (OCP) with Hiccup Mode
- Pre-Biased Start-Up
- Thermal Shutdown
- Available in an SOT583 (1.6mmx2.1mm) Package
Active Part Numbers:
MP2333GTL-Z MP2333GTL-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
