MPM3683-20

MPM3683-20

2.7V to 16V, 15A, Step-Down Power Module

Datasheet

Description

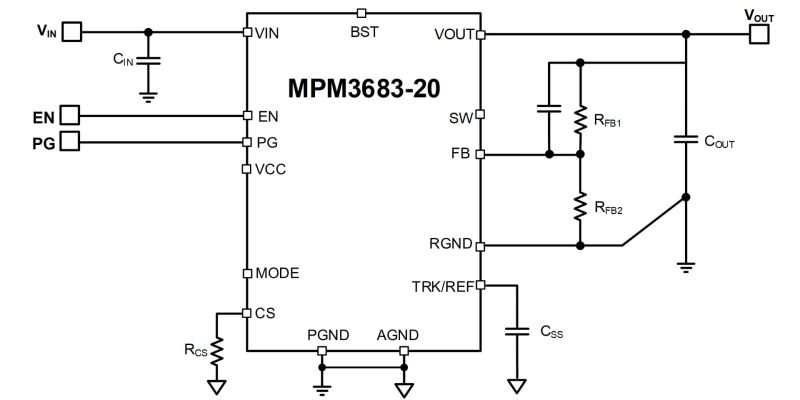

The MPM3683-20 is an easy-to-use, fully integrated, step-down DC/DC power module. The MPM3683-20 offers a complete power solution that achieves up to 20A of peak current. It integrates a DC/DC converter, power inductor, and passive components. The MPM3683-20 can deliver the output current (I_OUT) across a wide input voltage (V_IN) supply range, with excellent load and line regulation.

The MPM3683-20 uses constant-on-time (COT) control to provide fast transient response and ease loop stabilization. The operating switching frequency (f_SW) can be set to 600kHz, 800kHz, or 1000kHz with the MODE pin. This allows f_SW to remain constant, regardless of V_IN or the output voltage (V_OUT).

The MPM3683-20 features a configurable soft start time (t_SS) with one capacitor. An open drain power good (PG) signal indicates whether V_OUT is within the nominal voltage range.

The MPM3683-20 has fully integrated, non-latch protection features including over-current protection (OCP), over-voltage protection (OVP), and over-temperature protection (OTP).

The MPM3683-20 is available in a compact FCM LGA-29 (7mmx7mmx4.4mm) package.

Features & Benefits

Wide Input Voltage (V_IN) Range:
- 2.7V to 16V with External 3.3V V_CC
- 4V to 16V with Internal or External V_CC
Output Voltage (V_OUT) Range: 0.6V to 5.5V
Up to 15A of Continuous Output Current (I_OUT) with a 20A Peak
Differential V_OUT Remote Sense
Adaptive Constant-On-Time (COT) for Ultra-Fast Transient Response
Selectable Pulse-Skip Mode (PSM) or Forced Continuous Conduction Mode (FCCM)
V_OUT Tracking
PG Active-Clamped to Low Level during Power Failure
Configurable Soft-Start Time (t_SS)
Pre-Biased Start-Up
Selectable Switching Frequency (f_SW) from 600kHz, 800kHz, and 1000kHz
Non-Latch Over-Current Protection (OCP), Under-Voltage Lockout (UVLO), Over-Temperature Protection (OTP), and Over-Voltage Protection (OVP)
Available in an FCM LGA-29 (7mmx7mmx4.4mm) Package

Active Part Numbers:

MPM3683GMN-20-T

Related Products

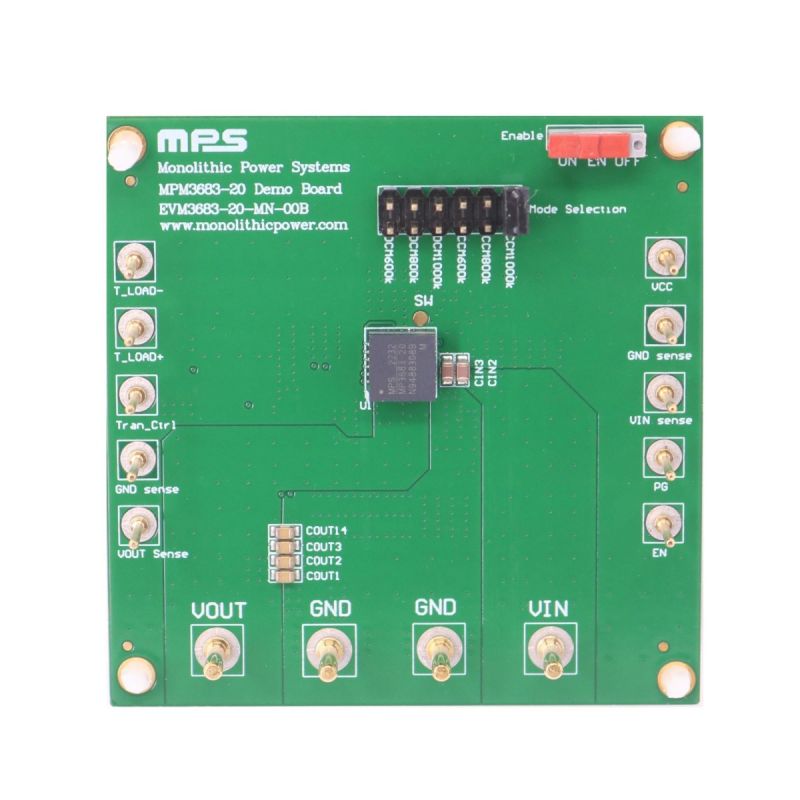

EVM3683-20-MN-00B 2.7V to 16V, 15A, Step-Down Power Module Evaluation Board

The EVM3683-20-MN-00B evaluation board is designed to demonstrate the capabilities of the MPM3683-20, a fully integrated, step-down, DC/DC power module with 15A of continuous current.

The MPM3683-20 features a configurable soft-start time (t_SS) with one capacitor. An open-drain power good (PG) signal indicates whether the output voltage (V_OUT) is within the nominal voltage range. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and over-temperature protection (OTP).

It is recommended to read the MPM3683-20 datasheet prior to making any changes to the EVM3683-20-MN-00B.
