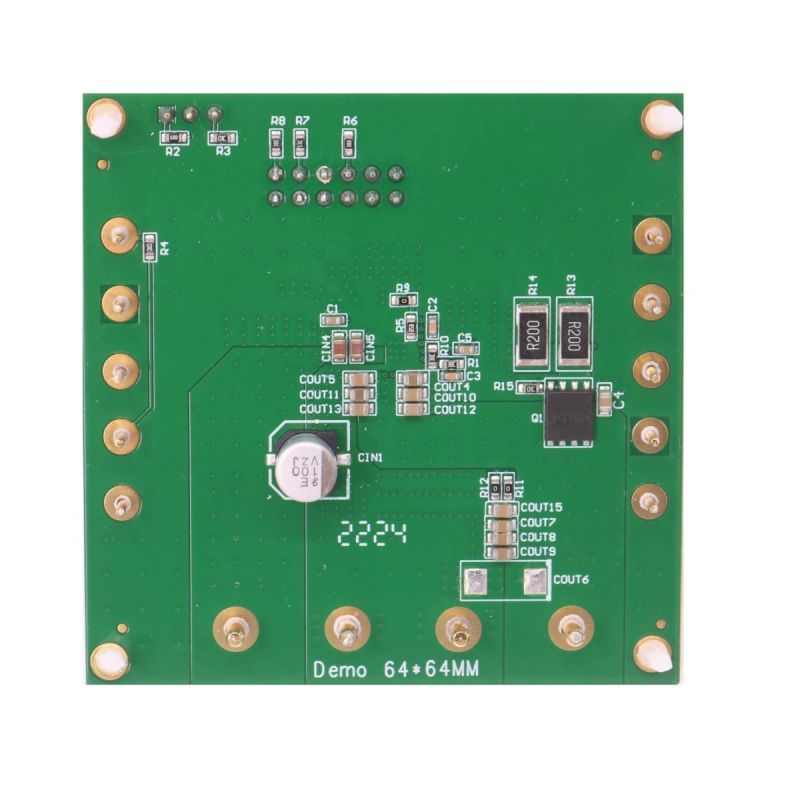

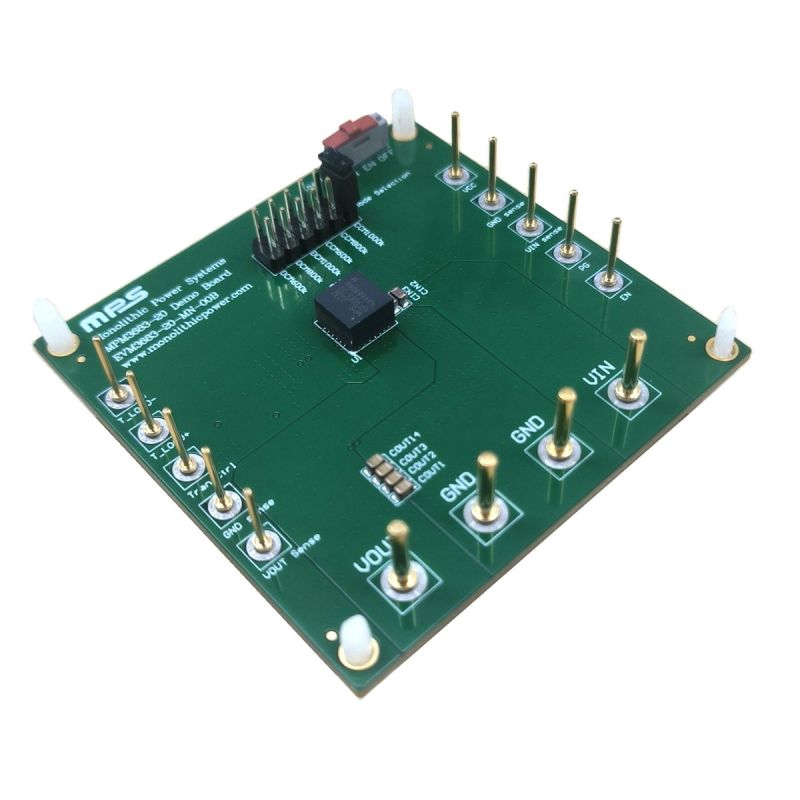

The EVM3683-20-MN-00B evaluation board is designed to demonstrate the capabilities of the MPM3683-20, a fully integrated, step-down, DC/DC power module with 15A of continuous current.

The MPM3683-20 features a configurable soft-start time (t_SS) with one capacitor. An open-drain power good (PG) signal indicates whether the output voltage (V_OUT) is within the nominal voltage range. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and over-temperature protection (OTP).

It is recommended to read the MPM3683-20 datasheet prior to making any changes to the EVM3683-20-MN-00B.
