MPQ8632D-12

12A, 2.5-19V, DCM, Non-latch OVP, COT Synchronous Step-down Converter with output Discharge

ALTERNATIVE PART

Datasheet

MPQ8632D-12 continues to be in production for existing customers. Please consider this alternative for new designs:

MPQ8632-12

12A、2.5V～18V、DCM、ノンラッチOVP、COT同期整流式ステップダウンコンバータ

Features & Benefits

2.5Vからの低い入力電圧範囲 :
- 外部5Vバイアスで、5V〜18V
- 内部バイアスで、5V～18V
4A～20Aの出力電流アプリケーション向けのスケーラブルな製品ファミリ
- 4A / 6A / 8A / 10A / 12Aで同じフットプリントを共有
- 4A / 6A / 8A / 10A / 12Aで電力段部分のわずかな変更をして、15A / 20Aで同じフットプリントを共有
デバイスごとに最適な低RDS (ON) 内部パワーMOSFET
独自のスイッチング損失低減技術
超高速過渡応答の適応型COT
0°C〜70°Cの接合部温度幅で5%の基準電圧
プログラム可能なソフトスタート時間
プリバイアススタートアップ
200kHz～1MHzまでのプログラム可能なスイッチング周波数
ノンラッチOCP、OVP、およびサーマルシャットダウン保護
0.611V～13Vまで調整可能な出力

… and many more!

概要

The MPQ8632D-6/MPQ8632D-12 is a fully integrated high frequency synchronous rectified step-down switch mode converter. It offers a very compact solution to achieve 6A/12A output current over a wide input supply range with excellent load and line regulation. The MPQ8632D-6/MPQ8632D-12 operates at high efficiency over a wide output current load range.
The MPQ8632D-6/MPQ8632D-12 uses Constant-On-Time (COT) control mode to provide fast transient response and ease loop stabilization.
An external resistor programs the operating frequency from 200kHz to 1MHz and the frequency keeps nearly constant as input supply varies with the feedforward compensation.
The default under voltage lockout threshold is internally set at 4.1V, but a resistor network on the enable pin can increase this threshold. An open drain power good signal indicates that the output is within nominal voltage range.
The MPQ8632D-6/MPQ8632D-12 employs a programmable soft start and shut-down scheme. With the soft shut-down feature, it discharges the output voltage smoothly when the enable signal is deserted.
It has fully integrated protection features that include over-current protection, over-voltage protection and thermal shutdown.

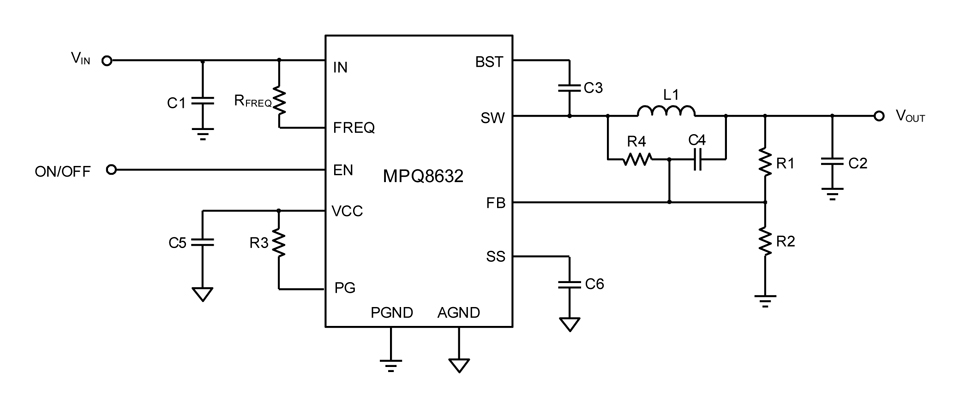

The MPQ8632D-6/MPQ8632D-12 requires a minimal number of readily available standard external components and is available in a 3mm×4mm package.
