MP2322A

MP2322A

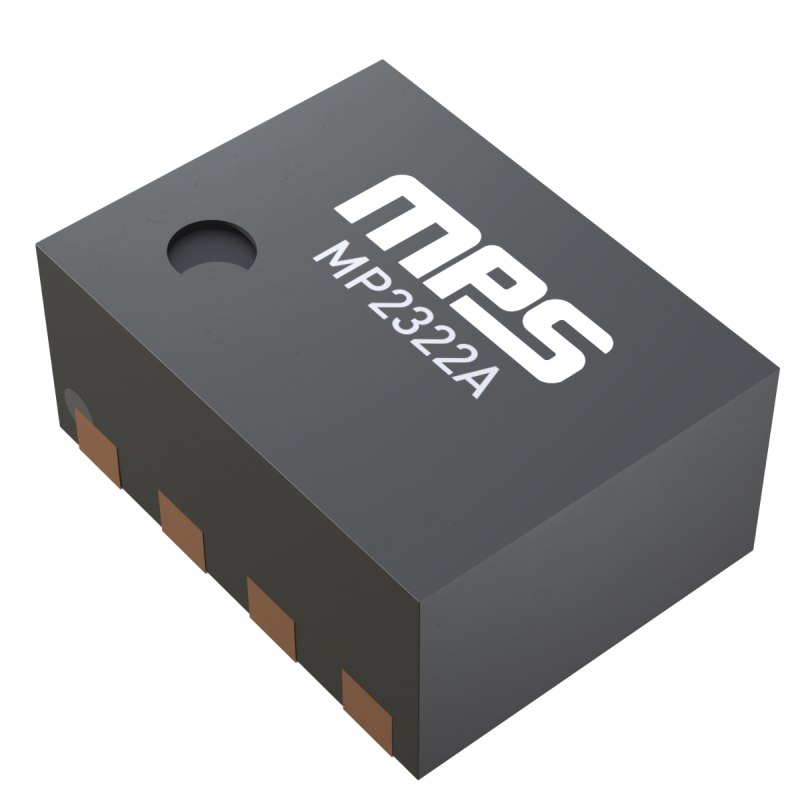

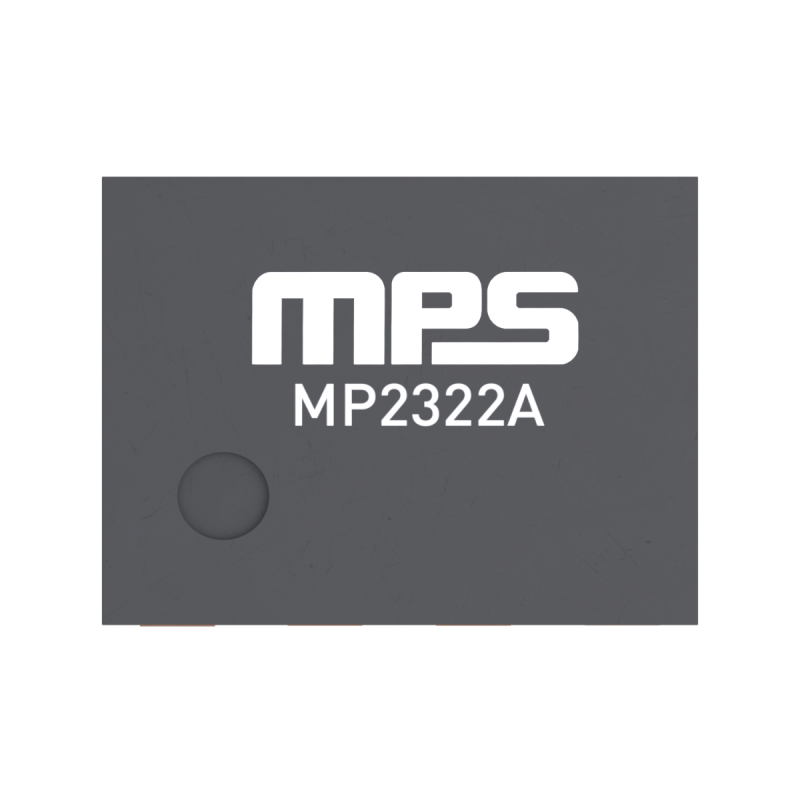

1A, 3V to 22V, 5μA I_Q, Synchronous Step-Down Converter in a QFN-8 (1.5mmx2mm) Package

MPL

概要

MPL

MPS のインダクタで性能を最適化済み

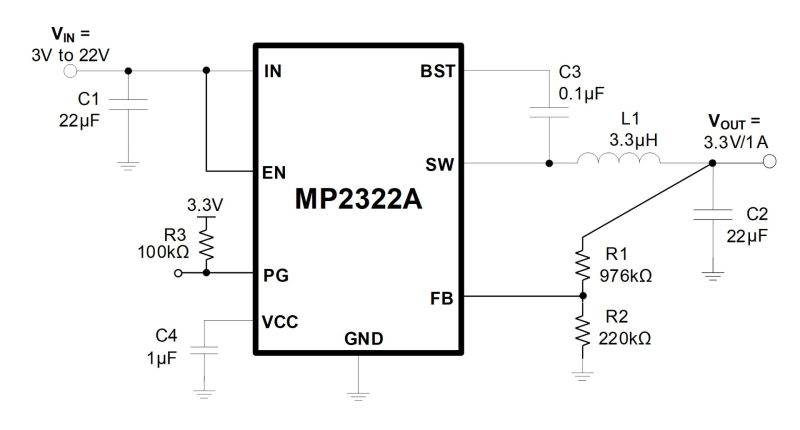

The MP2322A is a synchronous, rectified, step-down switch-mode converter with built-in internal power MOSFETs and high light-load efficiency. The MP2322A offers a very compact solution that achieves up to 1A of continuous output current (I_OUT) with excellent load and line regulation across a wide input voltage (V_IN) supply range.

The MP2322A's switching edge is optimized for EMI reduction. Constant-on-time (COT) control provides seamless mode transitions and a fast load transient response.

Full protection features include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The MP2322A requires a minimal number of readily available, standard external components, and is available in a space-saving QFN-8 (1.5mmx2mm) package.

機能と利点

Improved Performance under No-Load and Light-Load Conditions
Wide 3V to 22V Operating Input Voltage (V_IN) Range
5µA Low Quiescent Current (I_Q)
1A Load Current
260mΩ/120mΩ On Resistance (R_DS(ON)) Internal Power MOSFETs
High Efficiency from 100µA to 1A Load during V_IN from 4V to 22V
Power-Save Mode (PSM) under Light-Load Conditions
1.25MHz Fixed Switching Frequency (f_SW) during Continuous Conduction Mode (CCM)
On Time (t_ON) Extension to Support Large Duty Cycles
Power Good (PG) Indication
Enable (EN) Shutdown Output Discharge
Over-Current Protection (OCP) and Over-Voltage Protection (OVP) with Hiccup Mode
Output Voltage (V_OUT) Adjustable from 0.6V

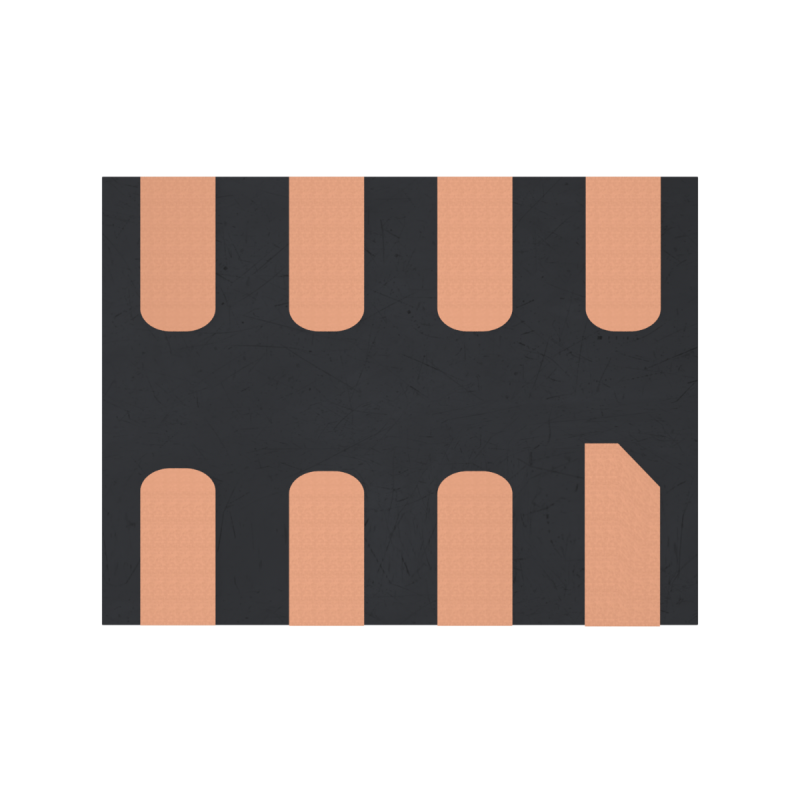

Available in a QFN-8 (1.5mmx2mm) Package
Optimized Performance with MPS Inductor MPL-AL6050 Series

入手可能な製品番号

MP2322AGQH-Z MP2322AGQH-P

P＆Zの意味

関連商品

MPS のインダクタで性能を最適化済み

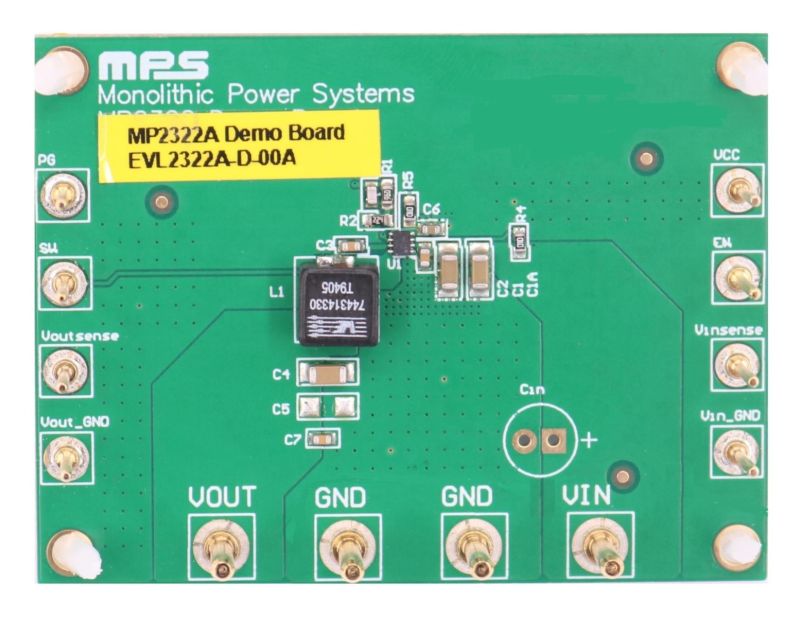

EVL2322A-D-00A 1A, 22V, Low-I_Q Step-Down Converter Evaluation Board

MPL

MPS のインダクタで性能を最適化済み

The EVL2322A-D-00A evaluation board is designed to demonstrate the capabilities of the MP2322A, a high light-load efficiency, synchronous, rectified, step-down switch mode converter with built-in internal power MOSFETs. It offers a very compact solution to achieve up to 1A of continuous output current (I_OUT) across a wide input supply voltage (V_IN) range, with excellent load and line regulation.

Full protection features include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The MP2322A is available in a space-saving QFN-8 (1.5mmx2mm) package. It is recommended to read the MP2322A datasheet prior to making any changes to the EVL2322A-D-00A.
