MP86885
NOT RECOMMENDED FOR NEW DESIGNS
MP86885 continues to be in production for existing customers. Please consider this alternative for new designs:
MP86905

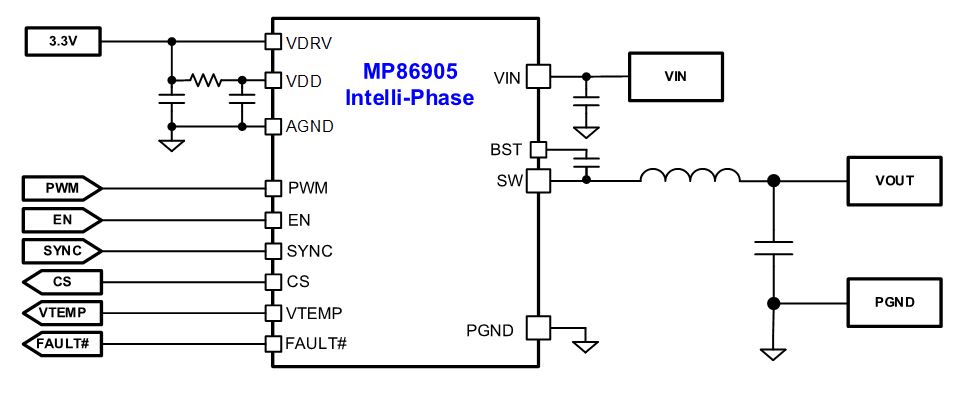

MP86905
Intelli-PhaseTMSolution with Integrated HS-/LS-FETs and Driver
Features & Benefits
- Wide 4.5V to 16V Operating Input Range
- 50A Output Current
- Current Sense with Accu-SenseTM
- Temperature Sense
- Accepts Tri-State PWM Signal
- Current-Limit Protection
- Over-Temperature Protection (OTP)
- Fault Reporting
- Available in an FC-QFN (4mmx4mm) Package
… and many more!
Session textval
Session Titefor popup
Description
-
Show more
Show less
Features & Benefits
- Wide 4.5V to 14V Operating Input Range
- Simple Logic Interface
- 40A Output Current
- Accepts Tri-State PWM Signal
- Built-In Switch for bootstrap
- Current Sense
- Temperature Sense (10mV/oC)
- Current Limit Protection
- Used for Multi-Phase Operation
- Fault Reporting
- Available in 4mm x 6mm FC-TQFN Package
- RoHS 6 Compliant
Active Part Numbers:
MP86885GQWT-P MP86885GQWT-Z
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
