OrderMP2722
Active Part Numbers:
MP2722GRH-xxxx-Z MP2722GRH-xxxx-P MP2722GRH-0000-Z MP2722GRH-0000-P
Meaning of P & Z
Evaluation Tools

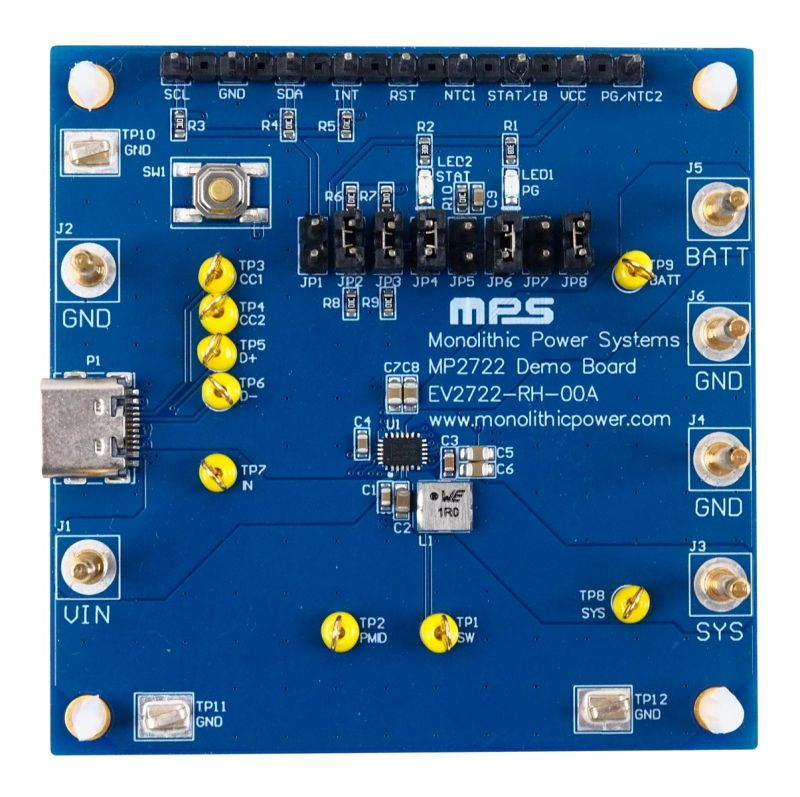

EV2722-RH-00A Evaluation Kit 1-Cell, 5A, NVDC Buck Charger with USB-C DRP Detection Evaluation Board with Serial Interface Control
The EV2722-RH-00A is an evaluation board designed to demonstrate the capabilities of the MP2722, a highly integrated, 5A, switch-mode battery management device for a single-cell Li-ion or Li-polymer batteries. The narrow-voltage DC (NVDC) power management structure provides a low-impedance power path, which optimizes charging efficiency, reduces battery charging time, and extends battery life during discharging.
The MP2722 is fully compliant with USB Type-C 1.3 and supports dual-role port (DRP) functionality, as well as Try.SNK and Try.SRC mode. USB Battery Charging Specification 1.2 (BC 1.2) and non-standard adapter detection are also supported by the input source type identification algorithm.
The serial interface offers complete operating control, charging parameter configuration, and status/interrupt monitoring. The MP2722 supports a fully customizable JEITA profile with configurable temperature windows and actions. It is available in a QFN-22 (2.5mmx3.5mm) package.
The EV2722-RH-00A supports input sources up to 16V, including standard USB host ports and high-voltage wall adapters with fast charge capability. The EV2722-RH-00A supports boost mode and USB On-The-Go (OTG) operation by supplying a voltage between 5V and 5.35V at the IN pin, with up to 3A of current.
5A, Single-Cell NVDC Buck Charger
2.5A, Single-Cell NVDC Buck Charger
MP2722 Resources
-
USB TYPE-C CHARGING CONNECTORS: DESIGN, OPTIMIZATION, AND INTEROPERABILITYIn June 2022, the EU parliament approved a mandate that will require the next generation of portable devices to be compatible with USB Type-C charging connectors. Manufacturers have until fall 2024 to make their products compatible with USB Type-C cables by adding a USB Type-C connector. Affected industries include mobile phones, digital cameras, handheld video game consoles, portable speakers, ke...
-
BATTERY CHARGER FUNDAMENTALSLi-ion battery charger ICs are devices that regulate battery charging current and voltage, and are commonly used for portable devices, such as cellphones, laptops, and tablets. Compared to other battery chemistries, Li-ion batteries have one of the highest energy densities, provide a higher voltage per cell, can tolerate higher currents, and do not have to be trickle charged when the battery is fu...
-
MP2629: UNBOXING AND GETTING STARTEDOur engineers walk you through unboxing and getting started with the evaluation kit for the MP2629, a buck charger IC with NVDC and an I2C interface. The EV2629-QC-00A evaluation board provides the ability to test and configure following features: 3.7V to 5.8V operating input voltage NVDC power path with 4.5A charge current Adjustable 4.8V to 5.5V output voltage Configurable charging paramet...
-
LITHIUM-ION BATTERY CHARGER IC BASED MAXIMUM POWER POINT TRACKING SYSTEMIn an era characterized by the internet of things (IoT), more connectivity means more outdoor devices are now battery-powered and constantly communicating. In particular, an increasing number of outdoor devices are being powered through solar panels. The charger should be suitable for maximum power point tracking (MPPT) in outdoor designs with a solar panel. This article illustrates design tips fo...
-
HOW TO ACHIEVE FAST CHARGING WITH USB PD IN PORTABLE DEVICESToday’s consumers want to conveniently and quickly charge their portable devices anywhere, whether they are in a business center or shopping mall, or waiting for a flight or train. However, there are many different types of charging adapters and connectors, which can make determining which charger or chargers to have on hand confusing for the end user. If the consumer has to carry multiple d...
-
HOW TO SELECT A LITHIUM-ION BATTERY CHARGE MANAGEMENT ICJohn B. Goodenough, considered the father of lithium-ion (Li-ion) batteries, became the oldest Nobel Prize winner when he was awarded the Nobel Prize in Chemistry in 2019 for his pioneering work. Nowadays, Li-ion batteries are utilized in all aspects of life for most consumers since they make electronic devices lightweight and long-lasting. For example, most mobile phones rely on a Li-ion battery ...
-
BATTERY CHARGER WITH MPPT REFERENCE DESIGN -
HIGHLY INTEGRATED BATTERY-CHARGING SOLUTION WITH INNOVATIVE POWER PATH MANAGEMENTTo achieve compact design for battery-powered devices, the battery is usually not removable and the capacity is limited by the space reserved for the battery. As a result, the operation time of the device is a major concern as devices are built with more and more power-consuming functions. To improve the portability of battery-powered devices, another auxiliary charging device with greater battery...
-
SINGLE CELL SWITCH MODE BATTERY CHARGERHighly-integrated switch-mode battery charger with system power path management and system boost designed for single-cell Li-ion or Li-Polymer batteries. Battery Management > MP2636
