EVKT-MP2722

EVKT-MP2722

MP2722 Evaluation Kit

Datasheet

Description

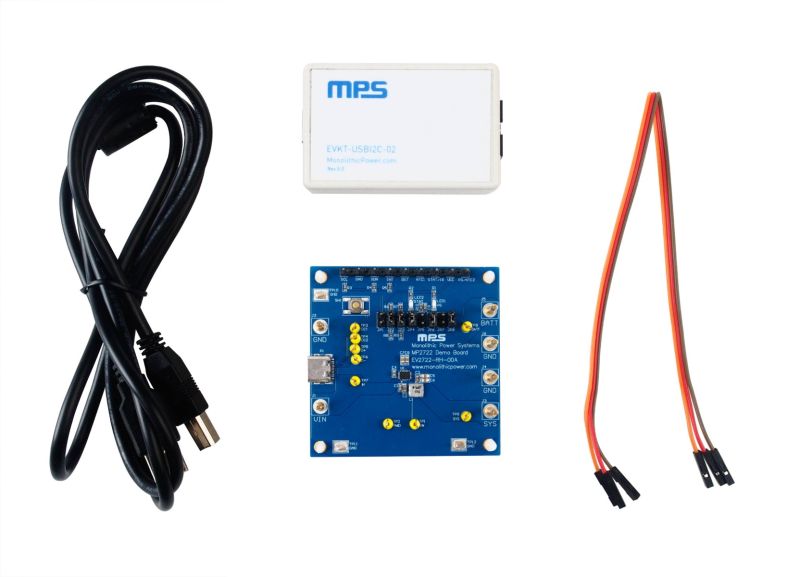

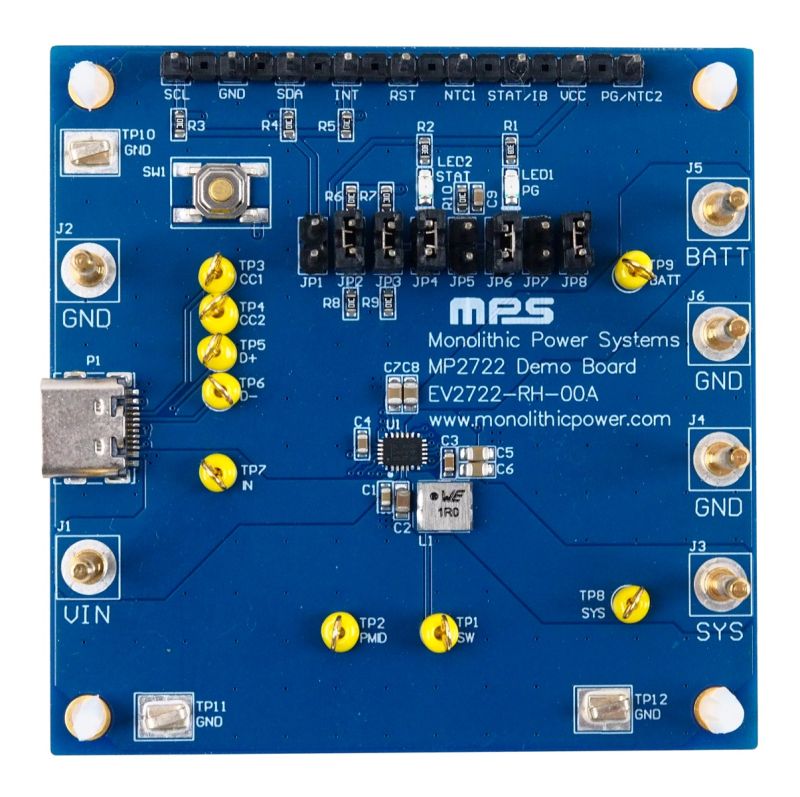

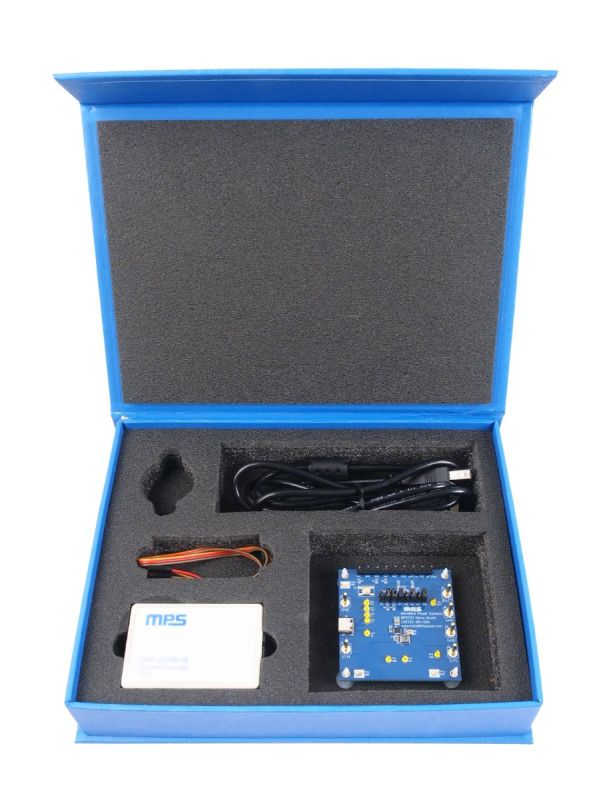

The EVKT-MP2722 is an evaluation kit for the MP2722. It is used to demonstrate the capabilities of the MP2722, a single-cell, 5A, narrow-voltage DC (NVDC) buck charger with USB Type-C dual-role power (DRP) detection and serial interface control.

The device can accept a 4V to 16V input voltage (V_IN) to charge the battery. The default function of this board is preset for charger mode, and the charge-full voltage is preset to 4.2V for a single-cell Li-ion battery.

Product Evaluated

Features & Benefits

Fully Integrated CC Controller Compliant with USB Type-C 1.3
USB Type-C Dual-Role Power (DRP) with Try.SNK and Try.SRC Mode Support
Supports USB BC 1.2 and Non-Standard Adapters
26V Sustainable Input Voltage (V_IN)
Configurable 80mA to 5A Charge Current (I_CC) via the Serial Interface
Configurable 100mA to 3.2A Input Current Limit (I_{IN_LIM}) via the Serial Interface
Minimum V_IN Loop for Maximum Adapter Power Tracking
Comprehensive Safety Features:
- Fully Customizable JEITA Profile
- Additional Negative Temperature Coefficient (NTC) Thermistor Input
- Configurable Die Temperature Regulation from 60°C to 120°C
- Complete Charge and Pre-Charge Safety Timers
- Watchdog Safety Timer
Configurable 750kHz to 1.5MHz Switching Frequency (f_SW)
Ultra-Low 8.5μA Battery Discharge Current in Shipping Mode
Down to 30mA Termination Current Settings for Wearable Applications
Serial Interface Port for Flexible System Parameter Setting and Status Reporting
Configurable Boost Converter for Source Mode and USB On-The-Go (OTG)
Accuracy:
- ±0.5% Battery Regulation Voltage (V_{BATT_REG})
- ±5% I_CC
- ±5% I_{IN_LIM}
- ±2% Output Regulation in Boost Mode
Available in a Small QFN-22 (2.5mmx3.5mm) Package

Active Part Numbers:

EVKT-MP2722

Design Resources

Buy direct from MPS

Standard Pricing

Quantity Price
1

$165.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
