MPQ4384-AEC1
36V, 12A to 18A, Low-EMI, Synchronous Step-Down Converter with ZDPTM, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description
The MPQ4384-AEC1 is a configurable-frequency (200kHz to 2.5MHz), synchronous step-down switching regulator with an integrated, internal high-side MOSFET (HS-FET) and low-side MOSFET (LS-FET). It provides a highly efficient, 12A to 18A output current (IOUT) with fixed-frequency, Zero-Delay pulse-width modulation (PWM) (ZDPTM) control for an optimal transient response.
The wide 3.3V to 36V input voltage (VIN) range accommodates a variety of step-down applications in the automotive environment. A 1.5μA shutdown-mode quiescent current (IQ) allows the MPQ4384-AEC1 to be used in battery-powered applications.
High power conversion efficiency across a wide load range is achieved by scaling down the switching frequency (fSW) under light-load conditions to reduce switching and gate driver losses. An open-drain power good (PG) signal indicates whether the output is within 95% to 105% of its nominal voltage.
Frequency foldback helps prevent inductor current (IL) runaway during start-up. Thermal shutdown provides reliable, fault-tolerant operation. A high duty cycle and low-dropout (LDO) mode are provided for automotive cold-crank conditions.
The MPQ4384-AEC1 is available in a TQFN-32 (5mmx6mm) package with wettable flanks. It is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- Designed for Automotive Transients:
- 3.3V to 36V Input Voltage (VIN) Range
- Low-Dropout (LDO) Mode with Soft Recovery
- Available in AEC-Q100 Grade 1
- Highly Scalable Family:
- 12A to 18A Output Current (IOUT) Versions in Pin-Compatible Family
- Multi-Phase Capable Up to 8 Phases
- Designed for High Performance and Reduced Component Overhead:
- Zero-Delay Pulse-Width Modulation (PWM) (ZDPTM) Control for Extremely Fast Transient Response and Fewer External Capacitors
- ±0.5% Output Accuracy, ±1% Power Good (PG) Accuracy
- Fixed or Adjustable Output Voltage (VOUT) Options

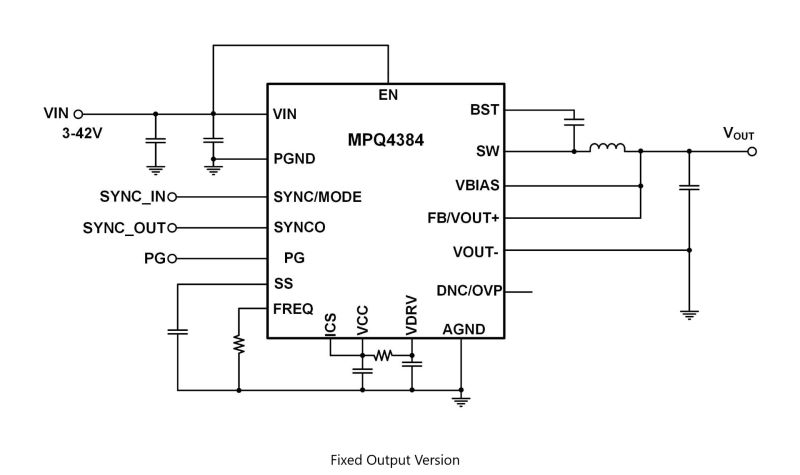

- Fixed Output: 0.8V, 1V, 1.2V, 1.8V, 2.5V, 3.3V, 3.8V, or 5V

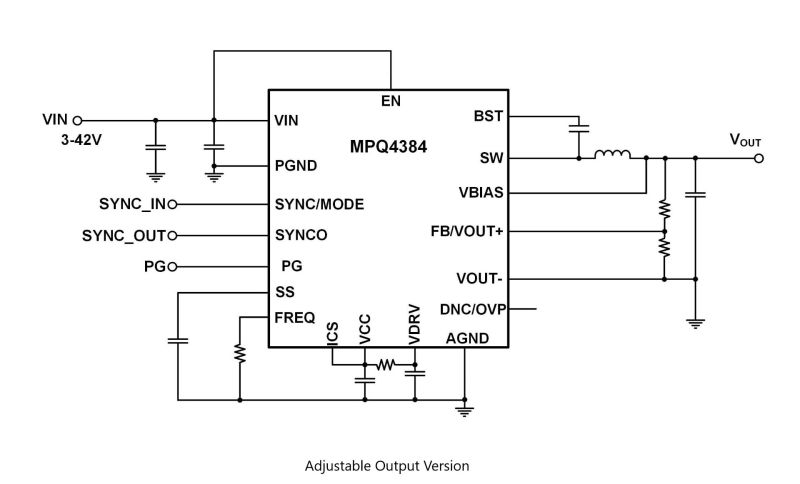

- Adjustable Output Voltage (VOUT) Up to 13V
- Output Discharge from SW to GND
- 25ns Minimum On Time to Allow High Conversion Ratio
- High Efficiency for Increased Battery Life and Improved Thermals:
- 14μA Standby Current
- Advanced Asynchronous Modulation (AAM) Mode Increases Efficiency under Light Loads
- Integrated, Low-Resistance High-Side MOSFET (HS-FET) and Low-Side MOSFET (LS-FET)
- Thin QFN Package to Facilitate Top-Side Cooling
- Optimized for Low EMC/EMI:
- 200kHz to 2.5MHz Configurable Switching Frequency (fSW)
- Symmetric VIN Pinout Placement
- Low Noise at High Frequency Band Using Quiet-FETTM Advanced Switching Technology
- Frequency Spread Spectrum (FSS) Modulation
- Synchronizable to an External Clock
- CISPR 25 Class 5 Compliant
- MeshConnectTM Package in a TQFN-32 (5mmx6mm) Package with Wettable Flanks
- Functional Safety System Design Capability:
- MPSafeTM-Compatible: Functional Safety Supporting Document Available
Active Part Numbers:
MPQ4384GQJTE-xxxx-AEC1-Z MPQ4384GQJTE-xxxx-AEC1-P MPQ4384GQJTHE-xxxx-AEC1-Z MPQ4384GQJTHE-xxxx-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
