Order- MPQ2013D-AEC1
MPQ2013D-AEC1
Session textval
Session Titefor popup
Description
The MPQ2013D-AEC1 is a low-power linear regulator that supplies power to systems with high-voltage batteries. The device has a wide 2.5V to 40V input voltage (VIN) range, low dropout voltage, and low quiescent supply current. The low quiescent current (IQ) and low dropout voltage allow for operation at extremely low power levels. This makes the MPQ2013D-AEC1 well-suited for low-power microcontrollers (MCUs) and battery-powered equipment.

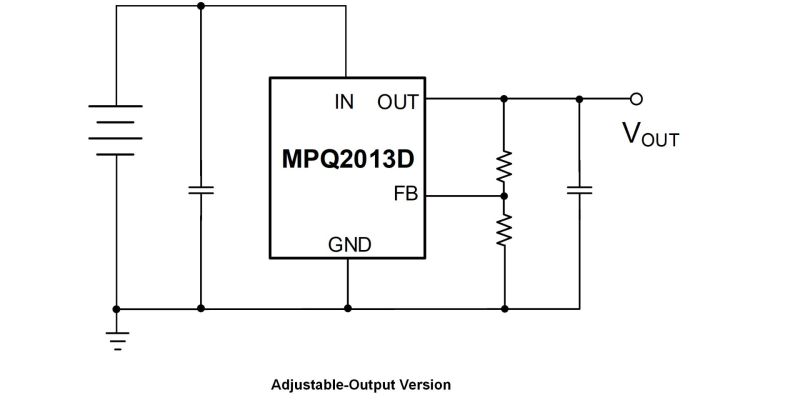

The MPQ2013D-AEC1 provides a wide variety of fixed output voltage (VOUT) versions by request: 2.5V, 3.3V, and 5V. In addition, the MPQ2013D-AEC1 has an adjustable VOUT version that can be set between 1.215V and 15V.
The MPQ2013D-AEC1 includes thermal shutdown and current-limiting fault protection. The output current (IOUT) is internally limited, and the device is protected against overload and over-temperature conditions.
The MPQ2013D-AEC1 is available in a TSOT23-4 package, and it is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- 2.5V to 40V Input Voltage (VIN) Range
- 3.3μA Quiescent Supply Current
- Stable with Lower-Value (>0.47μF) Ceramic Output Capacitors
- 100mA Specified Current
- 385mV Dropout at 100mA Load
- Available in Fixed and Adjustable Output Voltage (VOUT) (1.215V to 15V) Versions
- Output ±4% Accuracy
- Specified Current Limit
- Thermal Shutdown
- -40°C to +150°C Specified Junction Temperature (TJ) Range
- Available in a TSOT23-4 Package
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ2013DGJE-AEC1-Z MPQ2013DGJE-25-AEC1-Z MPQ2013DGJE-33-AEC1-Z MPQ2013DGJE-5-AEC1-Z MPQ2013DGJE-AEC1-P MPQ2013DGJE-25-AEC1-P MPQ2013DGJE-33-AEC1-P MPQ2013DGJE-5-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
