MPQ71000FS-AEC1

MPQ71000FS-AEC1

MPSafe^TM ASIL-D, 36V, 300mA, Dual LDO with ADC and I²C Interface, AEC-Q100 Qualified

Description

The MPQ71000FS-AEC1 is a dual-channel, low-dropout (LDO) regulator with an I²C interface and one-time programmable (OTP) memory. The device provides power for automotive advanced driver-assistance systems (ADAS) module and active antennas in automotive systems. The wide input voltage (V_IN) range makes the MPQ71000FS-AEC1 suitable for battery cold-crank (3V) conditions, up to load dump (42V) conditions.

The MPQ71000FS-AEC1 delivers up to 300mA of current per channel with excellent load and line regulation. The dual LDO output voltages (V_OUT1 and V_OUT2) are both configurable via the I²C interface with a range between 1V and 18V. The standard I²C interface provides flexibility in applications. Various parameters can be adjusted by writing the settings in the device without any hardware changes required.

The MPQ71000FS-AEC1 has an internal successive approximation register (SAR) analog-to-digital converter (ADC) to monitor output voltage and current, as well as the temperature. The device is provides full diagnostics of over-current (OC), short-circuit (SC), output over-voltage (OV), under-voltage (UV), short-to-battery (STB), and open-load conditions. It also features thermal shutdown.

Safety mechanisms such as built-in self-testing (BIST) provide high diagnostic coverage, which provides the desired safety coverage for ASIL-D requirements.

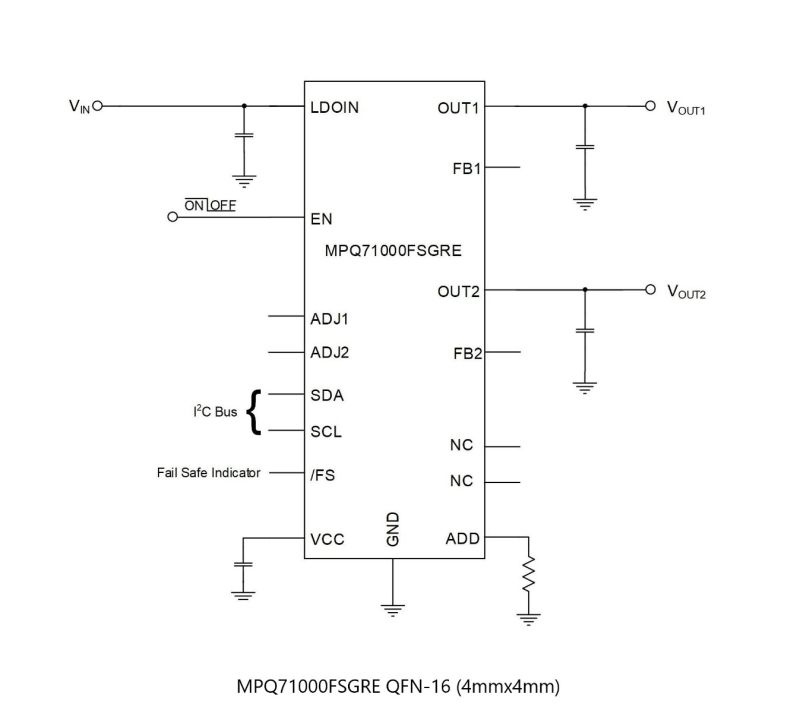

The MPQ71000FS-AEC1 is available in flip-chip QFN-14 (3mmx3mm) and wire-bonded QFN-16 (4mmx4mm) packages with wettable flanks. It is available in AEC-Q100 Grade 1.

Features & Benefits

Powerful Digital Capabilities:
- No External Resistor Network for Output Voltage (V_OUTx) Settings
- Configurable, Dual Low-Dropout (LDO) Regulators:
  - 300mA Continuous Output Current (I_OUTx) per Channel
  - 1V to 18V V_OUTx Range
  - Adjustable I_OUTx Limit
- Multi-Page One-Time Programmable (MOTP) Memory
Designed for Automotive Applications:
- Wide 4.5V to 36V Input Voltage (V_IN) Range
- Load Dump Up to 42V
- Cold Crank Down to 3V
- Available in AEC-Q100 Grade 1
Enhanced System Oversight:
- 8-Bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) Monitors Output Currents, Voltages, and Temperatures

Functional Safety Features:

MPSafe^TM Certified to ISO 26262 ASIL-D
Analog Built-In Self-Testing (BIST)
Logic BIST
Real-Time Register Cyclic Redundancy Check (CRC)
Non-Volatile Memory (NVM) CRC Protection
Rich Protections and Diagnostics:
- Output Over-Current (OC) Detection
- Output Over-Voltage (OV) and Under-Voltage (UV) Detection
- Short-to-Battery (STB) Protection
- Open-Load Detection
- Back-to-Back MOSFETs for Reverse-Current Protection
- Over-Temperature (OT) Shutdown Detection

Application Flexibility with I²C Interface:

Fast Mode I²C Interface with Optional Packet Error Checking (PEC)
Configurable Parameters:
- V_OUTx
- Protection Thresholds
- Fault Behaviors
- Power-On Sequencing

Additional Features:

20μA Quiescent Supply Current
140mV LDO Voltage
93dB High Power Supply Rejection Ratio at 100Hz
Available in QFN-14 (3mmx3mm) and QFN-16 (4mmx4mm) Packages
Available in a Wettable-Flank Package

Active Part Numbers:

MPQ71000FSGQE-xxxx-AEC1-Z MPQ71000FSGQE-xxxx-AEC1-P MPQ71000FSGQE-0000-AEC1-Z MPQ71000FSGQE-0000-AEC1-P MPQ71000FSGRE-xxxx-AEC1-Z MPQ71000FSGRE-xxxx-AEC1-P MPQ71000FSGRE-0000-AEC1-Z MPQ71000FSGRE-0000-AEC1-P
