- MPQ20033-AEC1
MPQ20033-AEC1
Session textval
Session Titefor popup
Description
The MPQ20033-AEC1 is an ultra-low dropout linear regulator that supplies up to 0.3A of current with a 1.6V to 5.5V input range. The device includes a low-dropout voltage, low quiescent supply current (IQ), and provides fast line and load transient performance, making it ideal for automotive battery-powered equipment.
The MPQ20033-AEC1 provides fixed output voltage (VOUT) options: 0.75V, 0.85V, 1.1V, 1.2V, 1.5V, 1.7V, 1.8V, 2.5V, 2.8V, 2.9V, 3V, or 3.3V. The device also provides adjustable-output options from 0.5V to 5V.
The MPQ20033-AEC1 is stable with small ceramic output capacitors, allowing for a small overall solution size. Full protection features include integrated thermal shutdown, current limit foldback, power good (PG), and under-voltage lockout (UVLO).
The MPQ20033-AEC1 family provides different package options, including QFN-8 (3mmx3mm), QFN-8 (2mmx2mm), TQFN-6 (2mmx2mm), TSOT23-5, and SOT563 packages. It is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- Built to Handle Tough Automotive Transients and Meet AEC-Q100 Requirements:
- Guaranteed Industrial and Automotive Temperature

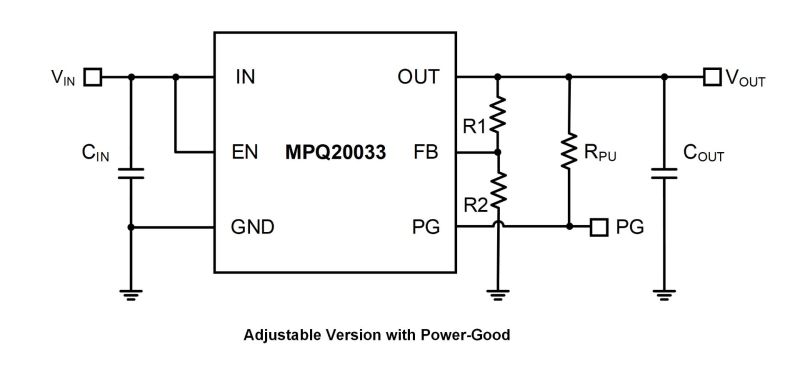

- 0.5V to 5V Adjustable Output Voltage (VOUT) Option

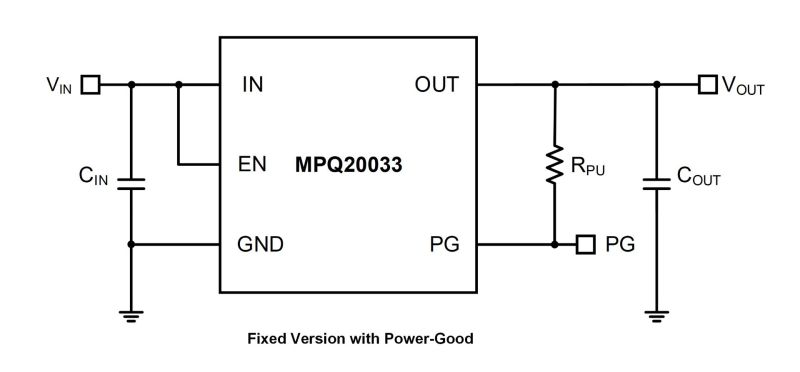

- Fixed VOUT Options: 0.75V, 0.85V, 1.1V, 1.2V, 1.5V, 1.7V,1.8V, 2.5V, 2.8V, 2.9V, 3V, or 3.3V
- Outputs ±1.4% Over-Temperature Accuracy
- Stable with Low Output Ceramic Capacitance (>1μF)
- Available in AEC-Q100 Grade 1
- Extends Vehicle Battery Life:
- 26µA Quiescent Supply Current (IQ)
- Supports Multiple Package Options:
- Available in a Small QFN-8 (3mmx3mm) Package
- Available in a Small QFN-8 (2mmx2mm) Package
- Available in a Small TQFN-6 (2mmx2mm) Package
- Available in a TSOT23-5 Package
- Available in an SOT563 Package
- Additional Features:
- 0.3A Nominal Current
- Current Limit Foldback
- Power Good (PG)
- Functional Safety System Design Capable:
- MPSafeTM-Compatible – Functional Safety Supporting Document Available
Active Part Numbers:
MPQ20033GQE-xxx0-AEC1-Z MPQ20033GQE-xxx0-AEC1-P MPQ20033GQE-xxx1-AEC1-Z MPQ20033GQE-xxx1-AEC1-P MPQ20033GGTE-xxx0-AEC1-Z MPQ20033GGTE-xxx0-AEC1-P MPQ20033GGTE-2900-AEC1-Z MPQ20033GGTE-2900-AEC1-P MPQ20033GGE-xxx0-AEC1-Z MPQ20033GGE-xxx0-AEC1-P MPQ20033GJ-xxx0-AEC1-Z MPQ20033GJ-xxx0-AEC1-P MPQ20033GTF-xxx0-AEC1-Z MPQ20033GTF-xxx0-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
