MPQ20083-AEC1
Session textval
Session Titefor popup
Description

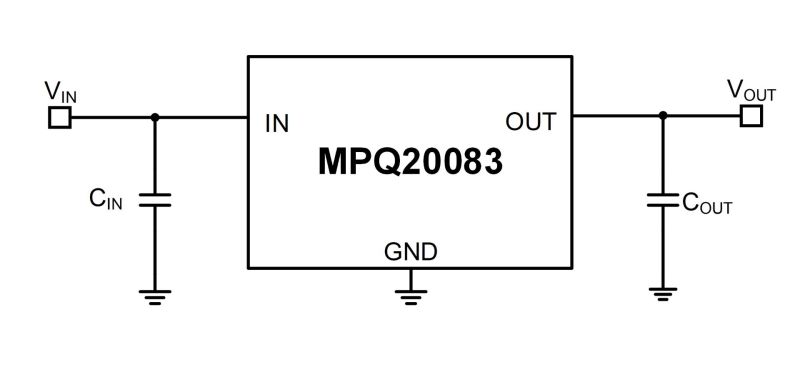

The MPQ20083-AEC1 is a low-power, low-dropout (LDO) linear regulator that supplies power to systems that are connected to the battery in automotive applications. It includes a wide 3V to 40V input voltage (VIN) range, making it capable of withstanding transients (such as load dump) that are anticipated in automotive systems.
The device is an optimal solution for powering always-on components such as microcontrollers (MCUs) and controller area network (CAN) transceivers in standby systems. The wide output voltage (VOUT) range allows the device to generate the bias voltage for silicon carbide (SiC) gate drivers and microphones as well as power MCUs and processors.
The device also incorporates exceptionally precise VOUT accuracy of ±1.35% across line, load, and temperature. This allows the device to quickly react to changes in load or line such as during cold-crank conditions.
The MPQ20083-AEC1 is available in an SOT-223 package, and is available in AEC-Q100 Grade 1. The low thermal resistance enables sustained operation against dissipation across the device.
-
Show more
Show less
Features & Benefits
- Versatile Voltage Range:
- Wide 3V to 40V Input Voltage (VIN) Range
- Fixed 3.3V or 5V Output Voltage (VOUT)
- Reduced Board Size:
- Available in an SOT-223 Package
- Additional Features:
- ±1.35% Output Accuracy Over-Temperature
- 210mV Low-Dropout Voltage
- High PSRR (77dB at 1kHz)
- Available in AEC-Q100 Grade 1
- Functional Safety System Design Capable:
- MPSafeTM-Compatible – Functional Safety Supporting Document Available
Active Part Numbers:
MPQ20083GTD-xxxx-AEC1-Z MPQ20083GTD-xxxx-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
