MPM3612

MPM3612

3V to 22V Input, 1A, Ultra-Low 5μA I_Q Power Module in an LGA Package

Datasheet

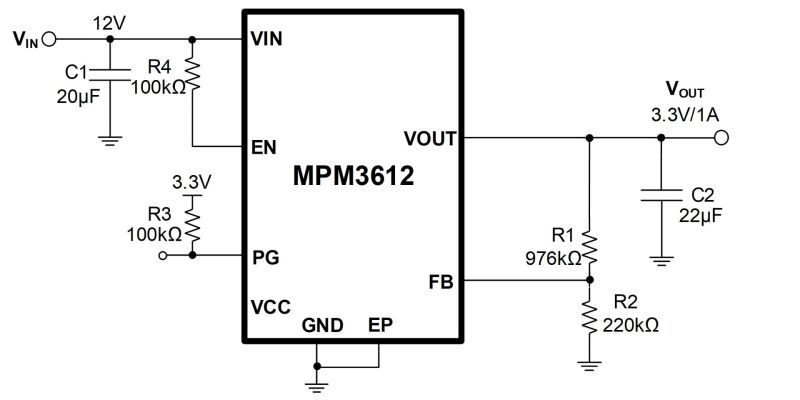

Description

The MPM3612 is a synchronous, rectified, step down, switch-mode power module with built-in internal power MOSFETs and high light-load efficiency. The MPM3612 has an ultra-low 5μA quiescent current (I_Q). The MPM3612 offers a very compact solution that can achieve up to 1A of continuous output current (I_OUT), with excellent load and line regulation across a wide input supply range.

The MPM3612's switching edge is optimized for EMI reduction. Constant-on-time (COT) control enables seamless mode transition and fast load transient response. Protection features include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The MPM3612 requires a minimal number of readily available, standard external components, and is available in a space-saving LGA (3mmx3mmx2mm) package.

Features & Benefits

Wide 3V to 22V Operating Input Voltage (V_IN) Range
5μA Low Quiescent Current (I_Q)
1A Load Current
High Efficiency from 100μA to 1A Load at 4V to 22V V_IN
Power-Save Mode (PSM)
1.25MHz Fixed Switching Frequency (f_SW) during Continuous Conduction Mode (CCM)
On Time (t_ON) Extension to Support Large Duty Cycles
Power Good (PG) Indication
EN Shutdown Output Discharge
Over-Current Protection (OCP), Over Voltage Protection (OVP), and Hiccup Mode
Adjustable Output Voltage (V_OUT)
Available in an LGA (3mmx3mmx2mm) Package

Active Part Numbers:

MPM3612GLQ-Z MPM3612GLQ-P

Meaning of P & Z

Related Products

EVM3612-LQ-00A 3V to 22V Input, 1A, Ultra-Low 5μA I_Q, Power Module Evaluation Board

The EVM3612-LQ-00A is an evaluation board designed to demonstrate the capabilities of MPM3612, a synchronous, rectified, step-down switch-mode converter with built-in internal power MOSFETs and high light-load efficiency. The MPM3612 has an ultra-low, 5μA quiescent current (I_Q). The device offers a very compact solution that achieves up to 1A of continuous output current (I_OUT), with excellent load and line regulation across a wide input supply range.

The MPM3612's switching edge is optimized for EMI reduction. Constant-on-time (COT) control provides seamless mode transition and a fast load transient response. Full protection features include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The MPM3612 requires a minimal number of readily available, standard external components. It is available in a space-saving LGA (3xmm3xmm2mm) package.

$25.00
+ tax
