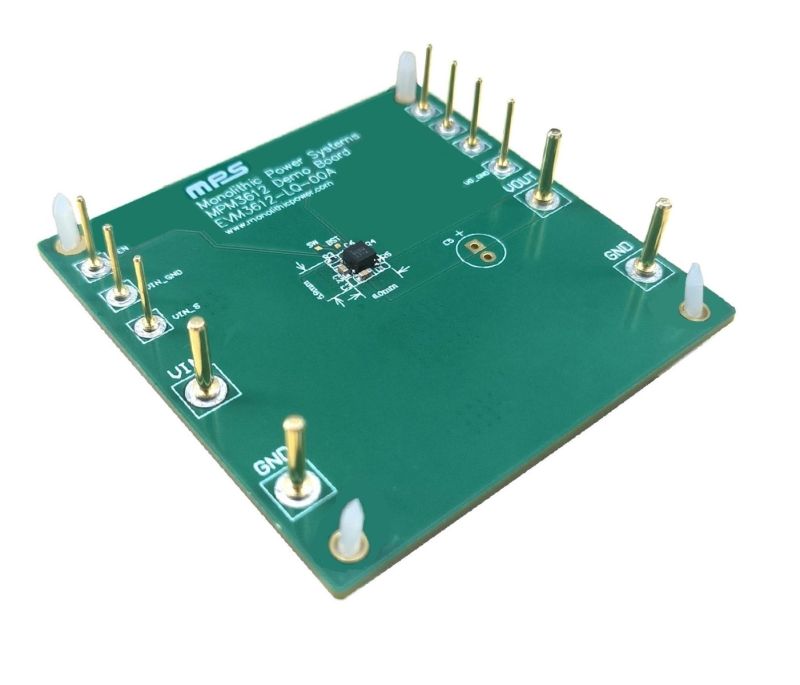

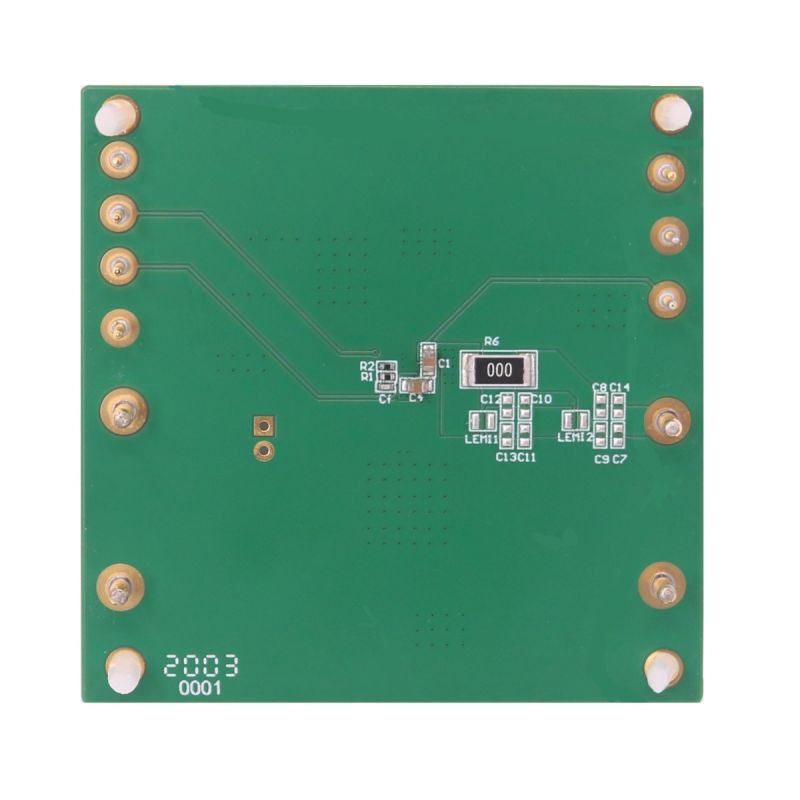

The EVM3612-LQ-00A is an evaluation board designed to demonstrate the capabilities of MPM3612, a synchronous, rectified, step-down switch-mode converter with built-in internal power MOSFETs and high light-load efficiency. The MPM3612 has an ultra-low, 5μA quiescent current (I_Q). The device offers a very compact solution that achieves up to 1A of continuous output current (I_OUT), with excellent load and line regulation across a wide input supply range.

The MPM3612's switching edge is optimized for EMI reduction. Constant-on-time (COT) control provides seamless mode transition and a fast load transient response. Full protection features include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The MPM3612 requires a minimal number of readily available, standard external components. It is available in a space-saving LGA (3xmm3xmm2mm) package.
