MPM3612-33

MPM3612-33

3V to 22V Input, 1A, Ultra-Low 5μA I_Q, Power Module in an LGA-10 (3mmx3mmx2mm) Package

Datasheet

Description

The MPM3612-33 is a synchronous, rectified, step-down switch-mode converter with built-in internal power MOSFETs and high light-load efficiency. The MPM3612-33 has an ultra-low 5μA quiescent current (I_Q). The MPM3612-33 offers a very compact solution that achieves 1A of continuous output current (I_OUT) with excellent load and line regulation across a wide input supply range.

The MPM3612-33’s switching edge is optimized to reduce electromagnetic interference (EMI). Constant-on-time (COT) control provides seamless mode transitions and a fast load transient response.

Full protection features include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The MPM3612-33 requires a minimal number of readily available, standard external components, and is available in a space-saving LGA-10 (3mmx3mmx2mm) package.

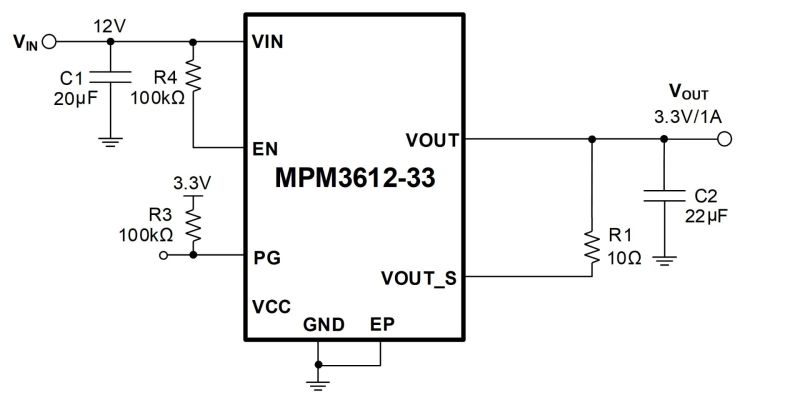

Features & Benefits

Wide 3V to 22V Operating Input Voltage (V_IN) Range
5μA Low Quiescent Current (I_Q)
1A Load Current
High Efficiency at 100μA to 1A Load when V_IN is between 4V and 22V
Power-Save Mode (PSM)
1.25MHz Fixed Switching Frequency (f_SW) during Continuous Conduction Mode (CCM)
On Time (t_ON) Extension to Support Large Duty Cycles
Power Good (PG) Indication
Enable (EN) Shutdown Output Discharge
Over-Current Protection (OCP) and Over-Voltage Protection (OVP) with Hiccup Mode
Fixed 3.3V Output Voltage (V_OUT)
Available in an LGA-10 (3mmx3mmx2mm) Package

Active Part Numbers:

MPM3612GLQ-33-Z MPM3612GLQ-33-P
