MPF52000-AEC2
Dual USB PD Controller for Source Ports, Supporting for Firmware Updates and Advanced PDP Management, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description
The MPF52000-AEC2 is a highly integrated, dual-channel USB power delivery (PD) controller for source ports. The device integrates a 32-bit ARM Cortex-M0 microcontroller, up to 36MHz operating frequency, USB Type-C port controller, and legacy charging protocol management. In addition, the CC lines support a firmware update feature.
The dual USB Type-C ports support USB PD revision 3.1 with programmable power supply (PPS) and Qualcomm Quick Charge 3/4/4+ technology. These ports are also backwards-compatible with dedicated charging port (DCP) schemes for Battery Charging Specification (BC1.2), Apple Divider 3 Mode, and Huaweifast charge protocol (FCP) and super charge protocol (SCP), without the need for outside user interaction.
Power-sharing functionality supports dynamic power budget management between the two USB PD ports. Power data object (PDO) capabilities are reduced when the car battery voltage is low, or when an over-temperature (OT) warning is triggered.
Fault condition protections includes bus voltage (VBUS) over-voltage protection (OVP) and under-voltage protection (UVP), and thermal shutdown. The high-voltage input/output (I/O) pins support short-to-battery and short-to-VBUS protection.
The MPF52000-AEC2 requires a minimal number of readily available, standard external components, and is available in a QFN-24 (4mmx4mm) package. It is AEC-Q100 Grade 2 qualified.
-
Show more
Show less
Features & Benefits
- 3.3V to 21V Bus Voltage (VBUS) Range in Standard Power Range (SPR) Mode with Discharge Function
- Supports Up to 48V VBUS in Extended Power Range (EPR) Mode with External VBUS Resistor Divider
- 4.6V to 5.5V Input Supply Voltage (VIN) Range
- 150μA Low Deep Sleep Supply Current (IDSLP) Mode in Detached State
- Dual USB PD Controller for Source Ports:
- Compliant with USB PD3.1 with Programmable Power Supply (PPS), USB Type-C 2.1, and TCPC 2.0 Supporting Firmware Updates
- Passes USB PD3.1 Certification Testing with PPS (TID: 8467)
- Supports USB PD Alternate Mode for Display Ports
- Integrated VCONN Power Switch and Over-Current Protection (OCP)
- Dynamic Power-Sharing Function
- Load-Shedding Function at High Temperatures or Low Battery Voltages
- Other Supported Charging Protocols:
- Qualcomm Quick Charge 3/4/4+
- Legacy Charging Protocol Support for BC1.2, Apple Divider 3 Mode, Huawei FCP/SCP, and UFCS
- 32-Bit ARM Cortex-M0 Microcontroller:
- Integrated 12MHz and 8kHz RC Oscillator
- 128kB Flash with ECC, 12kB SRAM, and 4kB ROM
- Three 16-Bit Timers with Pulse-Width Modulation (PWM) Function
- 12-Bit Analog-to-Digital Converter (ADC)
- Watchdog Timer (WDT)
- UART and Serial Wire Debugging (SWD)
- Two I2C Master/Slave Interfaces
- Protection Features:
- High-Voltage CCx/DP/DM I/O and Short-to-Battery/VBUS/GND Protection
- Thermal Shutdown Protection

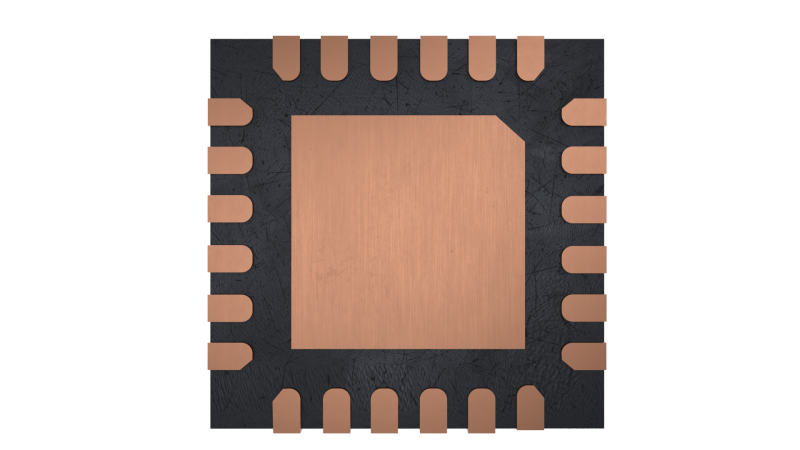

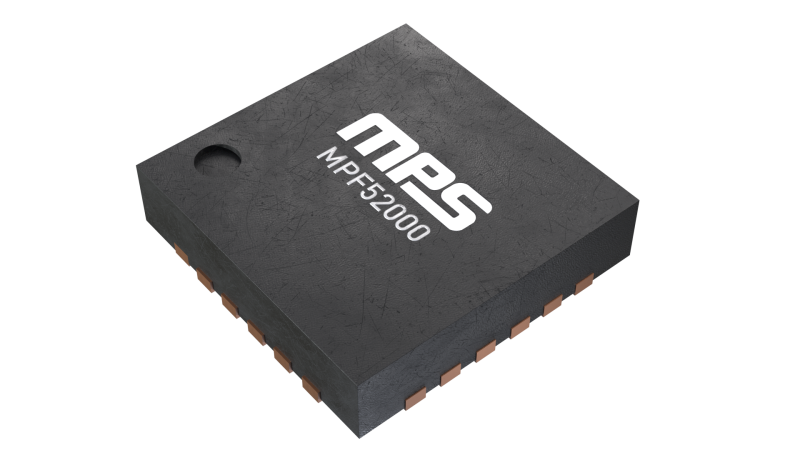

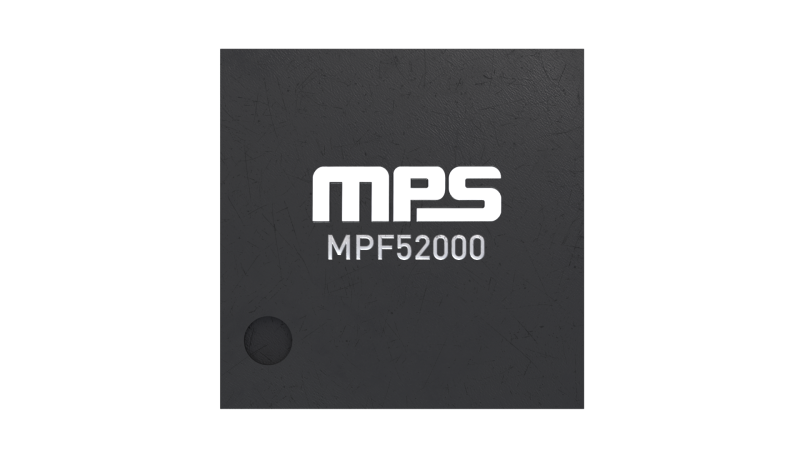

- Available in a QFN-24 (4mmx4mm) Package
- Available in AEC-Q100 Grade 2
Active Part Numbers:
MPF52000GRE-xxxx-AEC2-Z MPF52000GRE-xxxx-AEC2-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
