MPQ4276A-AEC1
36V, 6A, Configurable-Frequency Buck Converter with Dual USB Charging Ports and PFM Mode under Light Loads, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description

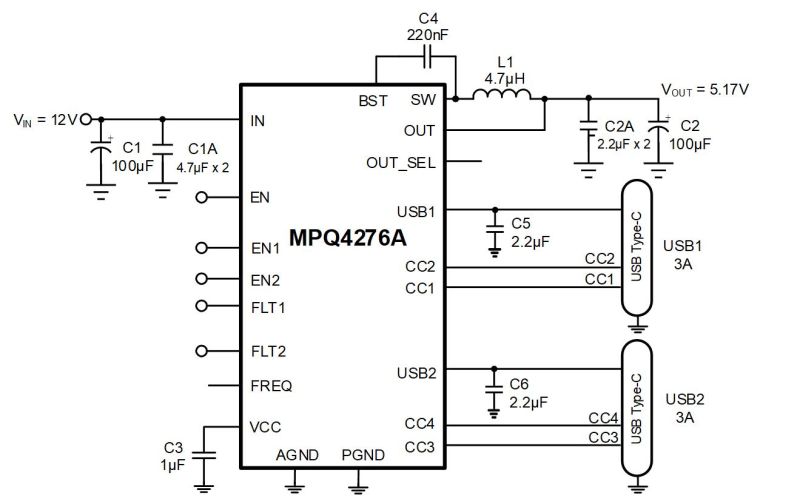

The MPQ4276A-AEC1 integrates a monolithic, step-down switch-mode converter with two USB current-limit switches, as well as USB Type-C 5V @ 3A mode configuration channels for each port. The MPQ4276A can achieve up to 6A of output current (IOUT) across a wide input voltage (VIN) range, with excellent load and line regulation.
The USB switch’s output is current-limited. Both USB ports support USB Type-C 5V @ 3A DFP mode, which eliminates the need for external user interaction. The MPQ4276A uses peak current mode control to regulate the output voltage (VOUT). Under light-load conditions, the device enters pulse-frequency modulation (PFM) mode to improve light-load efficiency.
Full protection features include hiccup current limiting, output over-voltage protection (OVP), and thermal shutdown. The MPQ4276A requires a minimal number of readily available, standard external components, and is available in a QFN-26 (5mmx5mm) package.
-
Show more
Show less
Features & Benefits
- Passes USB-IF Type-C Certification Test
- Passes Apple MFI Certification Test
- Automatic Pulse-Frequency Modulation (PFM) and Pulse-Width Modulation (PWM) Modes
- Enables Output when EN is Pulled High or CC1, CC2, CC3, and CC4 Are Connected
- EN1 and EN2 Being Pulled Active Low Controls USB1 and USB2 On/Off
- 135°C Load-Shedding vs. Temperature
- Accurate 5A USB1 and USB2 Output Current (IOUT) Limit
- Wide 6V to 36V Operating Input Voltage (VIN) Range
- Selectable Output Voltage (VOUT)
- Line Drop Compensation
- 21mΩ and 15mΩ Low On Resistance (RDS(ON)) Internal Power MOSFETs for the Buck Converter
- 18mΩ and 18mΩ Low RDS(ON Internal Power MOSFETs for USB1 and USB2
- Adjustable 200kHz to 2.2MHz Frequency
- Hiccup Current Limit for Both the Buck Converter and USB Switches
- Fault Indication for USB1 and USB2
- Supports USB Type-C 5V @ 3A Mode
- ±8kV Human Body Model (HBM) ESD Rating for USB1 and USB2
- Available in a QFN-26 (5mmx5mm) Package
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ4276AGU-AEC1-Z MPQ4276AGU-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
