- MPQ4229-C-AEC1
MPQ4229-C-AEC1
Session textval
Session Titefor popup

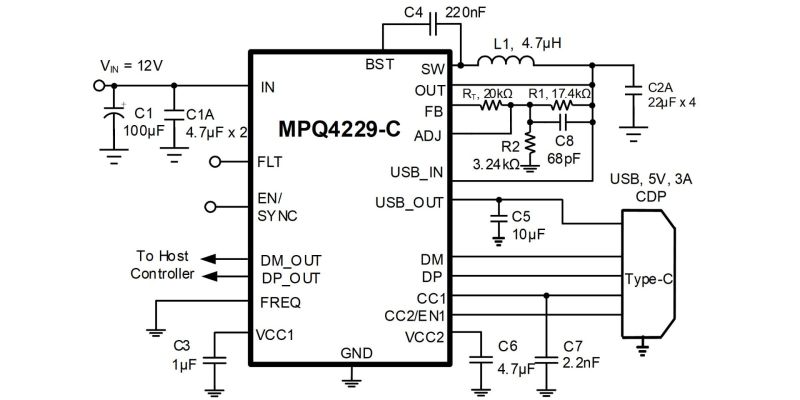

Description
The MPQ4229-C-AEC1 integrates a monolithic, step-down switch-mode converter with a single USB current-limit switch, as well as a USB Type-C 5V at 3A mode configuration channel for USB ports. It achieves 3A of output current (IOUT) across a wide input supply range, with excellent load and line regulation.
The USB switch's output is current-limited. The USB port supports charging downstream port (CDP) schemes. The USB port also supports USB Type-C 5V at 3A downstream facing port (DFP) mode.
Fault condition protections include hiccup current limiting, USB input over-voltage protection (OVP), DP/DM/CC1/CC2 short-to-battery protection, and thermal shutdown (TSD).
The MPQ4229-C-AEC1 requires a minimal number of readily available, standard external components, and it is available in a QFN-22 (4mmx4mm) package. It is available in AEC-Q100 Grade 1.
-
Show more
Show less
Features & Benefits
- Supports BC1.2 Charging Downstream Port (CDP) Mode
- Supports USB Type-C 5V at 3A Downstream Facing Port (DFP) Mode
- USB_OUT, DP/DM, CC1/CC2 Pins Short-to-Battery Protection
- Wide 4.2V to 36V Continuous Operating Input Range
- Passes Apple MFI Certification Test
- Passes USB-IF USB Type-C Certification Test
- Selectable 420kHz and 2.2MHz Switching Frequency (fSW) with Spread Spectrum
- Integrated High-Bandwidth USB2.0 Data Switch with Over-Voltage Protection (OVP)
- Accurate 3.55A and 2.85A USB Current Limit
- Integrated 20mΩ Low On Resistance (RDS(ON)) USB Switch
- 145°C Internal Load-Shedding Entry Temperature
- Enable (EN) Shutdown Discharge Function
- Frequency Synchronization from 200kHz to 2.2MHz
- Hiccup Current Limit for Both Buck and USB
- Fault Indication for Over-Current Protection (OCP), USB Input OVP, CCx/DP/DM Pin Short-to-Battery, and Thermal Shutdown
- 2ms Fault Deglitch Time during DP/DM OVP
- 6.9V USB Input OVP Rising Threshold
- Up to 1.5V Line Drop Compensation
- ±8kV IEC 61000-4-2 Contact Discharge ESD Rating for the CC1 and CC2 Pins
- ±8kV IEC 61000-4-2 Contact Discharge ESD Rating with External Small ESD Diodes on the DP and DM Pins
- ±15kV IEC 61000-4-2 Air Discharge ESD Rating for the DP, DM, CC1, and CC2 Pins
- Available in a QFN-22 (4mmx4mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
Active Part Numbers:
MPQ4229GRE-C-AEC1-Z MPQ4229GRE-C-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
