MPM3650C

1.2MHz, Synchronous, 2.75 to 17V, 6A, Ultra-Thin Power Module

Datasheet

Description

The MPM3650C is a fully integrated, high-frequency, synchronous, rectified, step-down power module with an internal inductor. It offers a highly compact solution to achieve 6A of continuous output current over a wide input range, with excellent load and line regulation. The MPM3650C offers synchronous mode operation for higher efficiency over the output current load range.

Constant-on-time (COT) control operation provides ultra-fast transient response and easy loop design, as well as very tight output regulation.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

The MPM3650C requires a minimal number of readily available, standard external components. It is available in a space-saving QFN-24 (4mmx6mm) package.

Features & Benefits

Wide 2.75V to 17V Operating Input Range
Output Currents:
0.6V to 1.8V, 6A Output
1.8V to 3.3V, 5A Output
Internal Power MOSFETs
Output Adjustable from 0.6V
High-Efficiency Synchronous Mode Operation
Forced CCM for Low V_OUT Ripple
Supports Pre-Biased Start-Up
Fixed 1200kHz Switching Frequency
Externally Programmable Soft-Start Time
EN and Power Good for Power Sequencing
Over-Current Protection and Hiccup Mode
Thermal Shutdown
Available in a QFN-24 (4mmx6mmx1.6mm) package

Active Part Numbers:

MPM3650CGQW-P MPM3650CGQW-Z

Meaning of P & Z

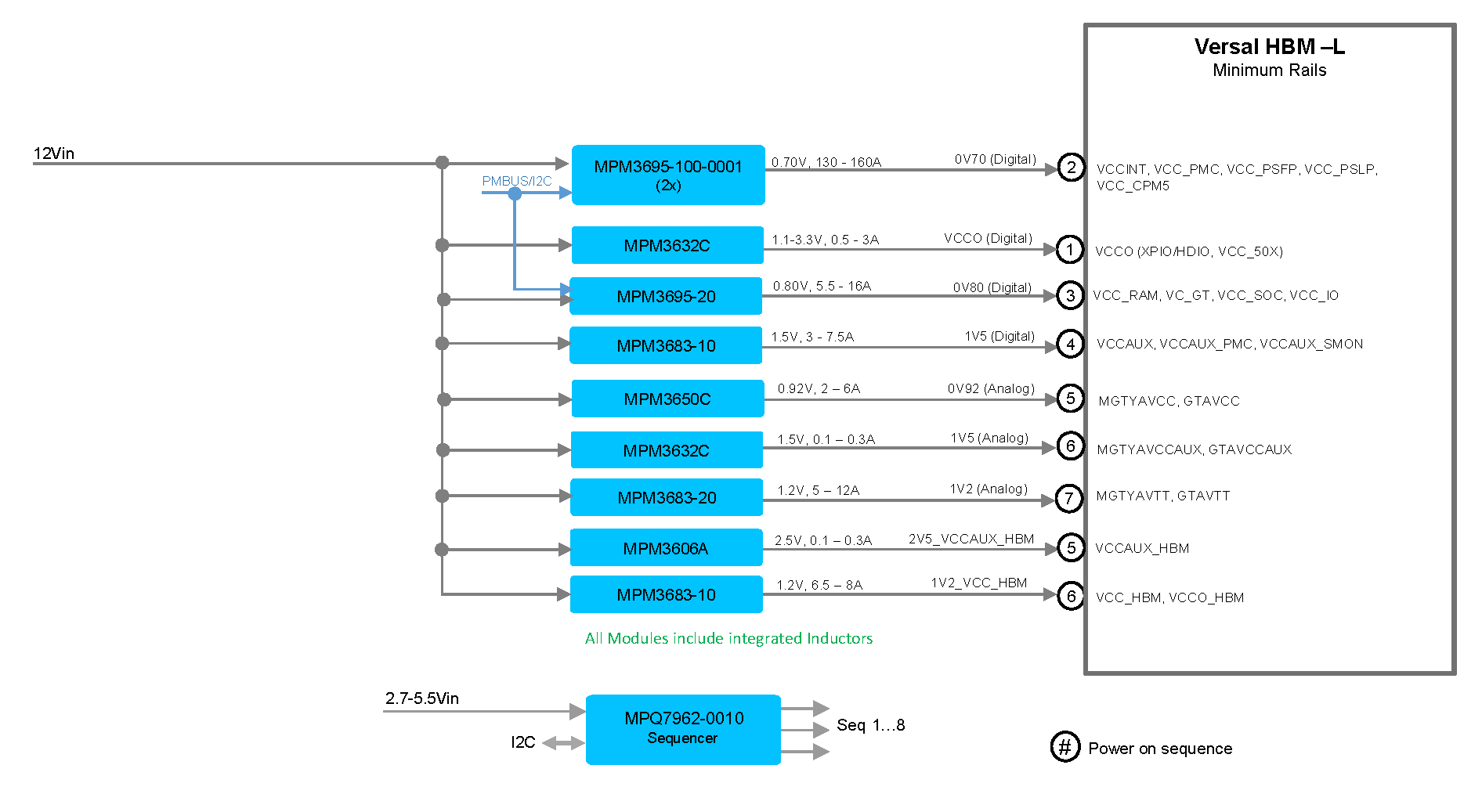

Related Products

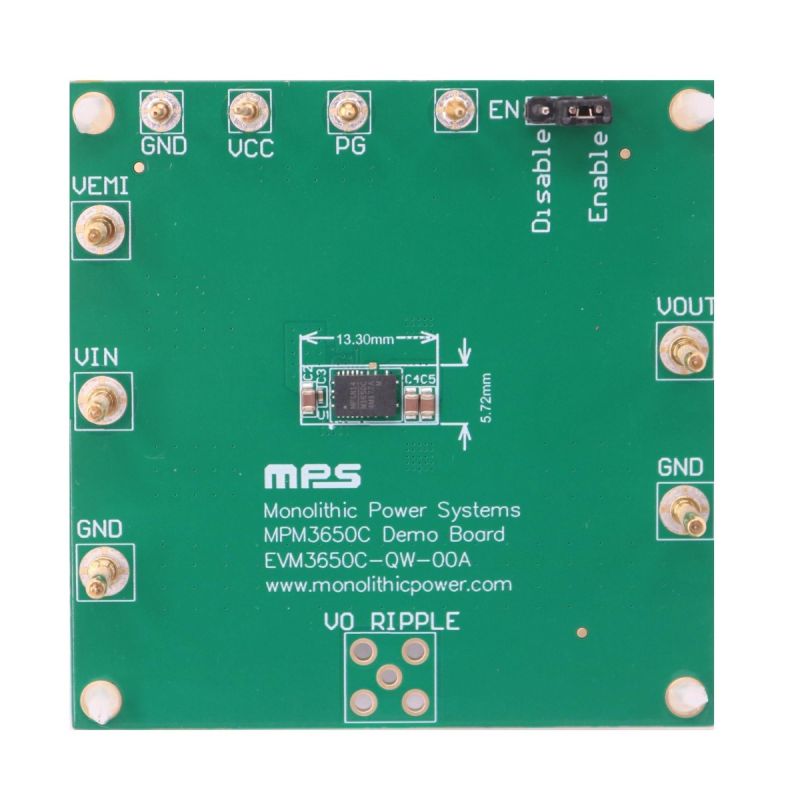

EVM3650C-QW-00A 17V, 6A, 1.2MHz, Ultra-Thin, Synchronous, Step-Down Power Module Evaluation Board

The EVM3650C-QW-00A is an evaluation board designed to demonstrate the capabilities of the MPM3650C, a fully integrated, high-frequency, synchronous, rectified, step-down power module with an internal inductor. It offers a highly compact solution to achieve 6A of continuous output current (I_OUT) across a wide 2.75V to 17V input voltage (V_IN) range, with excellent load and line regulation. The MPM3650C offers synchronous operation for high efficiency across the I_OUT load range.

Constant-on-time (COT) control enables ultra-fast transient response and easy loop design, as well as very tight output regulation.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

The MPM3650C is available in a QFN-24 (4mmx6mmx1.6mm) package.
