21V Input, 0.6A Module Synchronous Step-down Converter with Integrated Inductor and PG pin
10+$2.30 /unit 20 % Discount
100+$2.10 /unit 27 % Discount
250+$1.93 /unit 33 % Discount
500+$1.77 /unit 38 % Discount
1000+$1.43 /unit 50 % Discount
Arrives 3-4 business days.
Shipping only $5 per order.

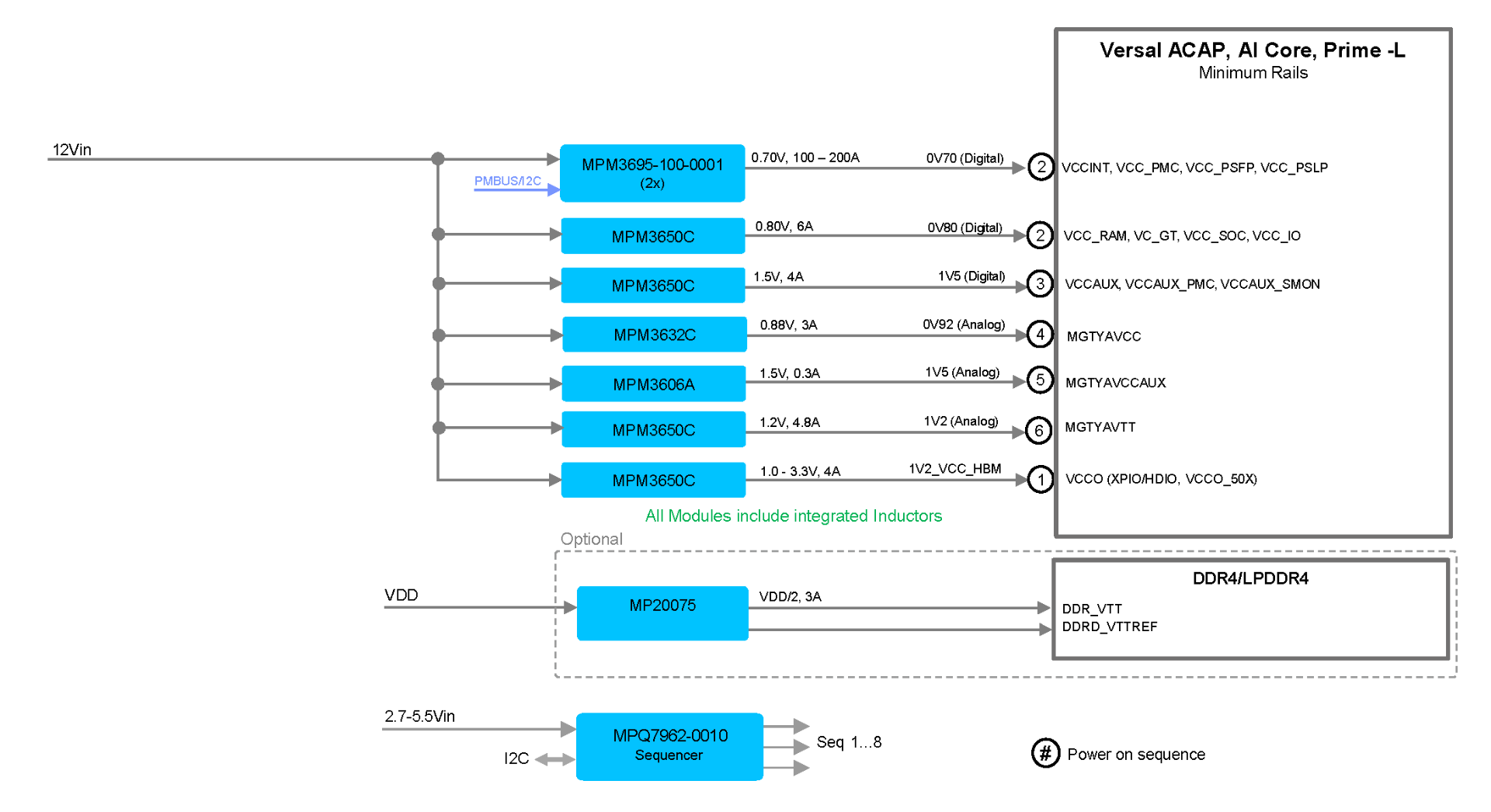

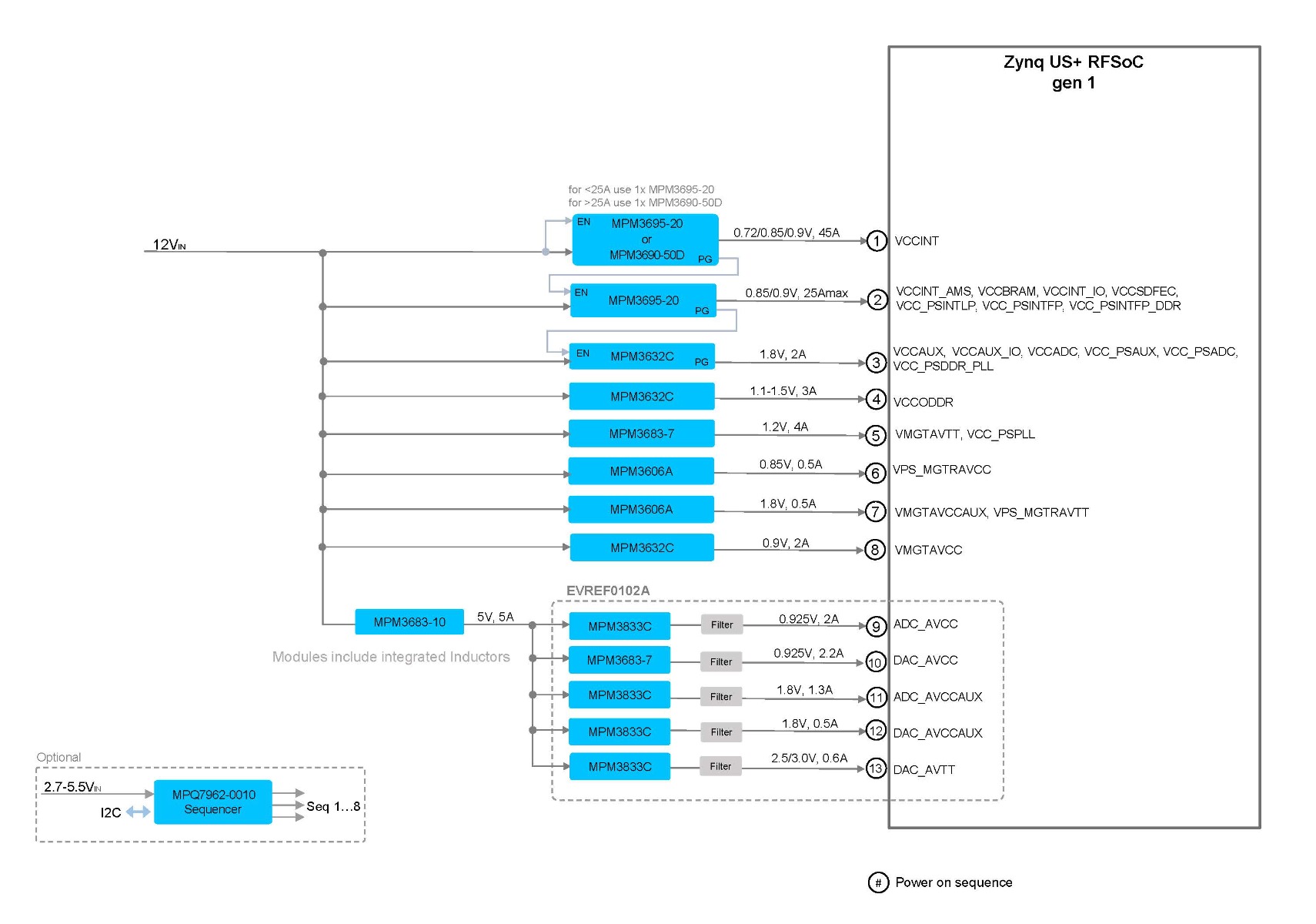

The MPM3606A is a synchronous rectified, step-down module converter with built-in power MOSFETs, inductor, and two capacitors. It offers a compact solution that requires only 5 external components to achieve a 0.6A continuous output current with excellent load and line regulation over a wide input-supply range. Also, it provides fast load transient response. Full protection features include over-current protection (OCP) and thermal shutdown (TSD). MPM3606A eliminates design and manufacturing risks while dramatically improving time-to-market. The MPM3606A is available in a space-saving QFN20 (3mmx5mmx1.6mm) package.
- 4.5V-to-21V Operating Input Range
- 0.6A Continuous Load Current
- 100mO/50mO Low RDS(ON) Internal Power MOSFETs
- Integrated Inductor
- Integrated VCC and Bootstrap Capacitors
- Power-Save Mode at Light Load
- Power Good Indicator
- Over-Current Protection and Hiccup
- Thermal Shutdown
- Output Adjustable from 0.8V
- Available in QFN20 (3x5x1.6mm) Package
- Total solution size 6.7mm x7.3mm
- fsw (max) (kHz)2000
- fsw (min) (kHz)2000
- Vin (min) (V)4.5
- Vin (max) (V)21
- Iout (max) (A)0.6
- Isw Limit (typ) (A)2.4
- Max Duty Cycle (%)0.83
- Vfb (V)0.798
- Iq (typ) (mA)0.3
- Regulated Outputs1
- Vout (max) (V)17.4
- Vout (min) (V)0.8
- EN ControlYes
- PackageQFN-20 (3x5)
- Special FeaturesEMI Tested, PWM and PFM Selection
- Dimension (H) (mm)4.2
- Mounting TypeSurface Mount
- Dimension WxL (mm)3x5
- I2C InterfaceNo
- Operating Junction Temp Range (°C) -40 to 125
- Module Assembly Encapsulated
21V/0.6A Module Converter With Integrated Inductor Evaluation Board
The EVM3606A-QV-00A is an evaluation board for MPM3606A, a synchronous rectified, step-down module converter with built-in power MOSFETs, inductor and two capacitors.
The evaluation board can deliver a 0.6A continuous output current with excellent load and line regulation over a wide input supply range.
Current-mode operation provides fast transient
response and eases loop stabilization.
Full protection features include over-current protection and thermal shut down.
The MPM3606A is available in a space-saving QFN20 (3mm x5mmx1.6mm) package.
$25.00 + tax
