MPM3826C

2.7V to 5.5V, 2A, Ultra-Small, Ultra-Low Noise Power Module

Description

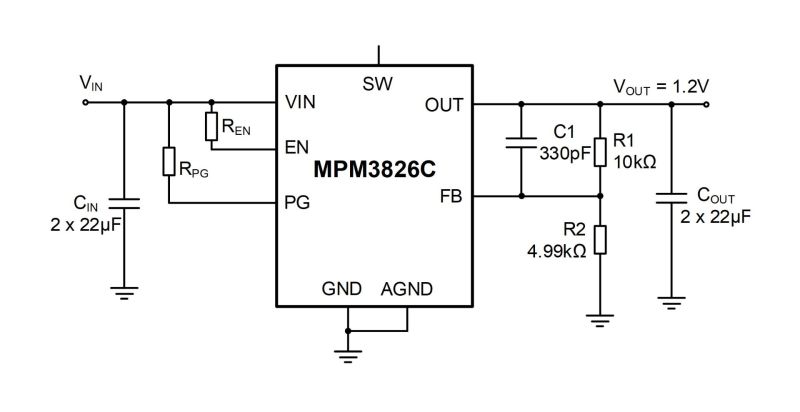

The MPM3826C is a synchronous, step-down power module with an integrated inductor. The MPM3826C achieves up to 2A of continuous output current (I_OUT) from a 2.7V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.4V. Only feedback (FB) resistors, input capacitors, and output capacitors are required to complete the design.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

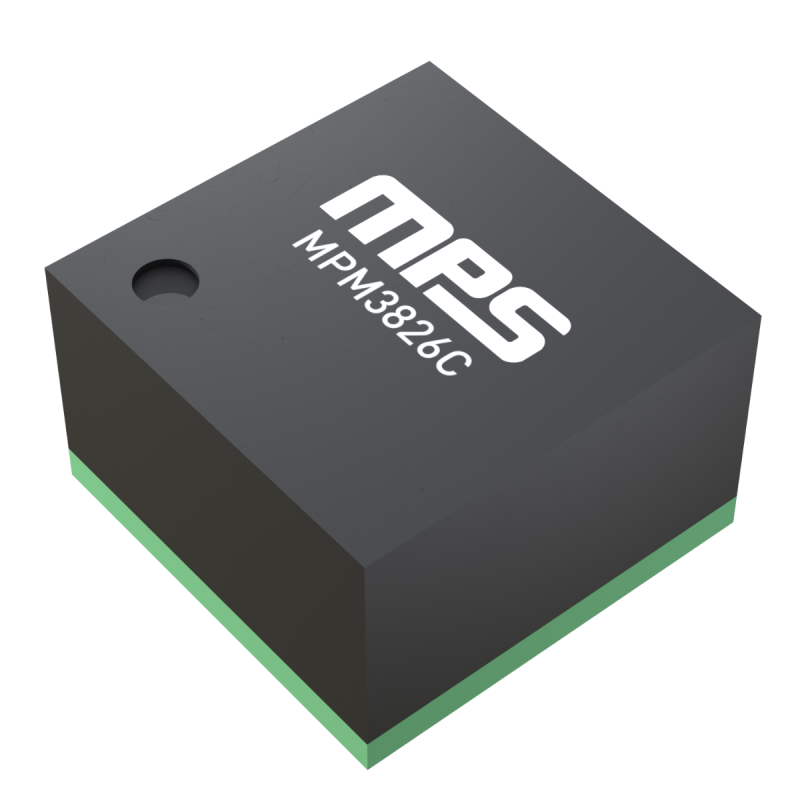

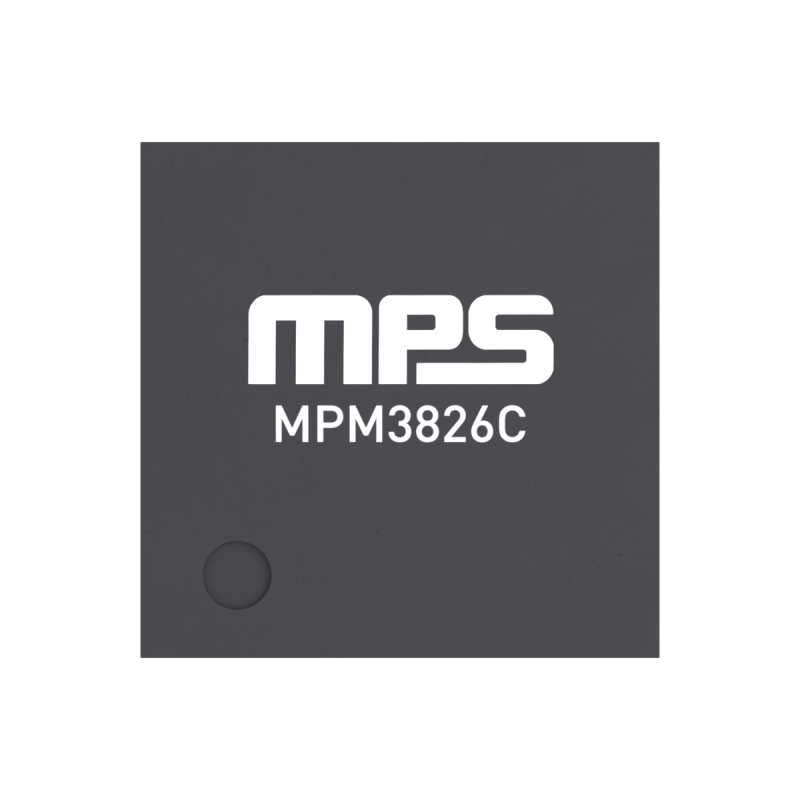

The MPM3826C requires a minimal number of readily available, standard external components, and is available in an ultra-small ECLGA-10 (2mmx2.2mmx1.2mm) package.

Features & Benefits

Wide 2.7V to 5.5V Operating Input Voltage (V_IN) Range
Adjustable Output Voltage (V_OUT) from 0.4V
Up to 2A of Continuous Output Current (I_OUT)
Forced Continuous Conduction Mode (FCCM)
2.4MHz Switching Frequency (f_SW)
Enable (EN) and Power Good (PG) for Power Sequencing
Output Discharge
Cycle-by-Cycle Over-Current Protection (OCP)
Short-Circuit Protection (SCP) with Hiccup Mode

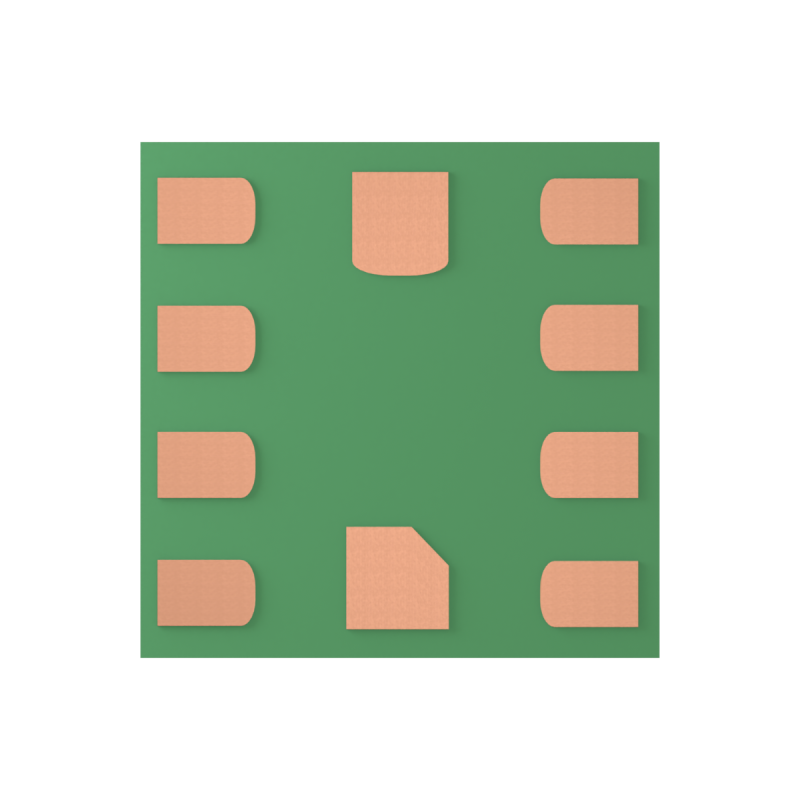

Available in an ECLGA-10 (2mmx2.2mmx1.2mm) Package

Active Part Numbers:

MPM3826CGPE-Z MPM3826CGPE-P

Meaning of P & Z

Related Products

EVM3826C-PE-01A 5.5V, 2A, Step-Down Power Module Evaluation Board

The EVM3826C-PE-01A evaluation board is designed to demonstrate the capabilities of the MPM3826C, a fully integrated, synchronous, rectified, step-down, DC/DC power module that achieves up to 2A of continuous current.

The output voltage (V_OUT) can be regulated to as low as 0.4V. Only feedback (FB) resistors, input capacitors, and output capacitors are needed to complete the design.

The MPM3826C adopts constant-on-time (COT) control scheme to provide fast transient response and ease loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

It is recommended to read the MPM3826C datasheet prior to making any changes to the EVM3826C-PE-01A.

$25.00
+ tax
